V1 Wiring harness question

[Brad Beggs]

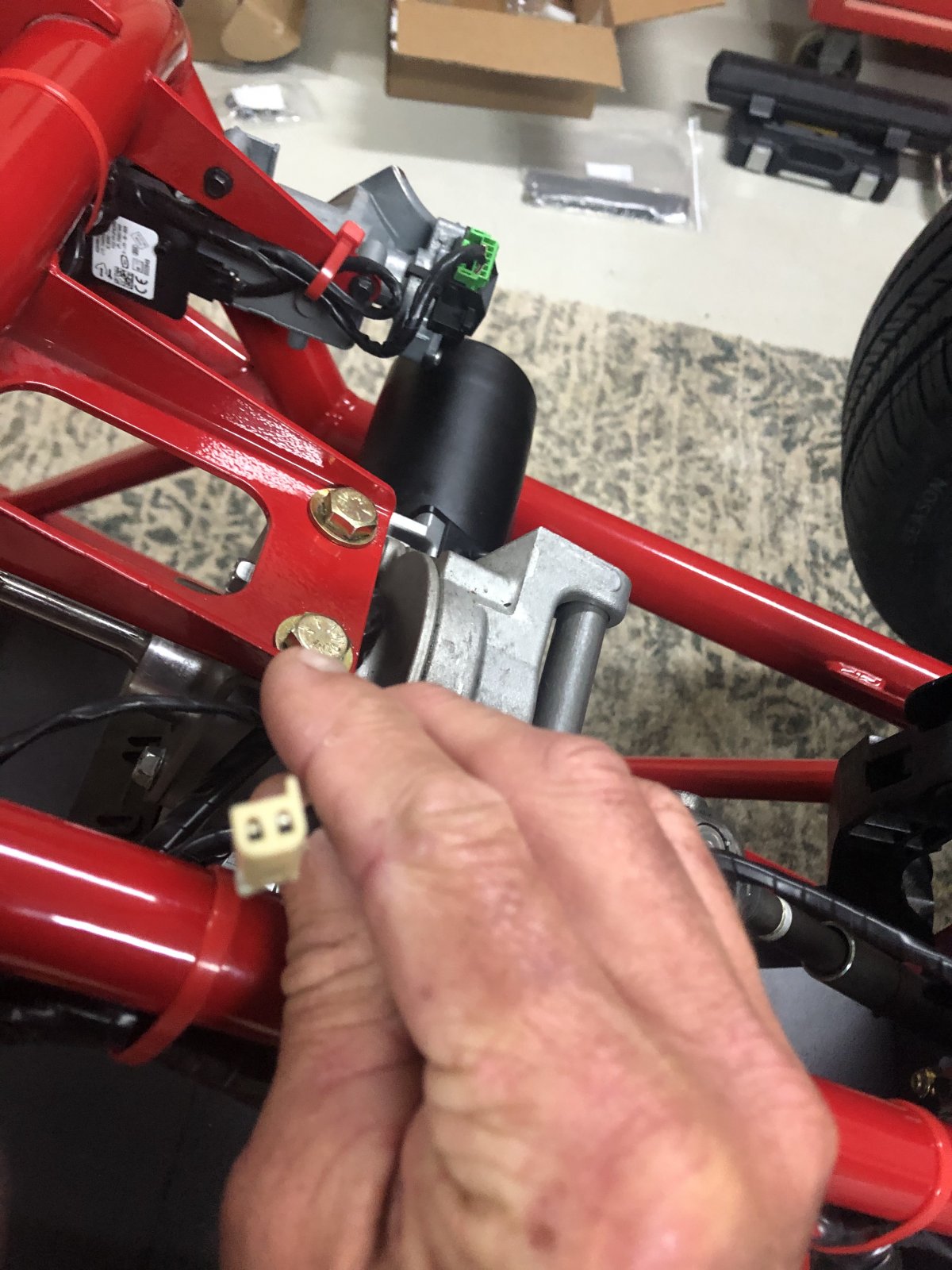

Hey guys, I received my wiring harness yesterday from the good folks at DF. I have 3 extra connectors up front and I just can’t seem to locate their plugs. Any help will be appreciated. The first one is down by the BCM. The other two are up by the steering column.



[Rauq]

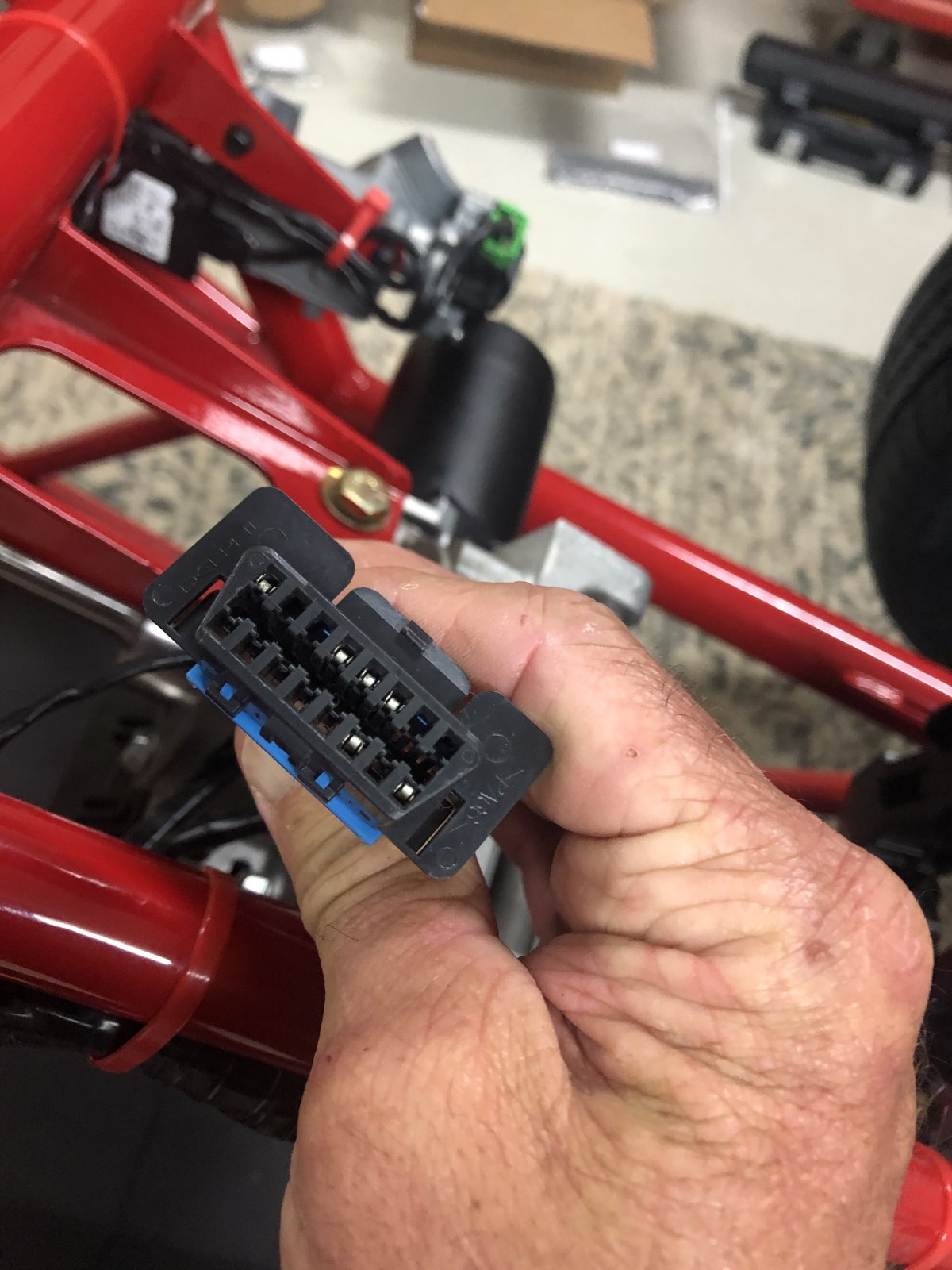

The first one just looks like the OBD2 connector.



[Ross]

1. OBDII connector
2. maybe Power Steering motor controller?
3. maybe clutch?



[Brad Beggs]

1. OBDII connector
2. maybe Power Steering motor controller?
3. maybe clutch?

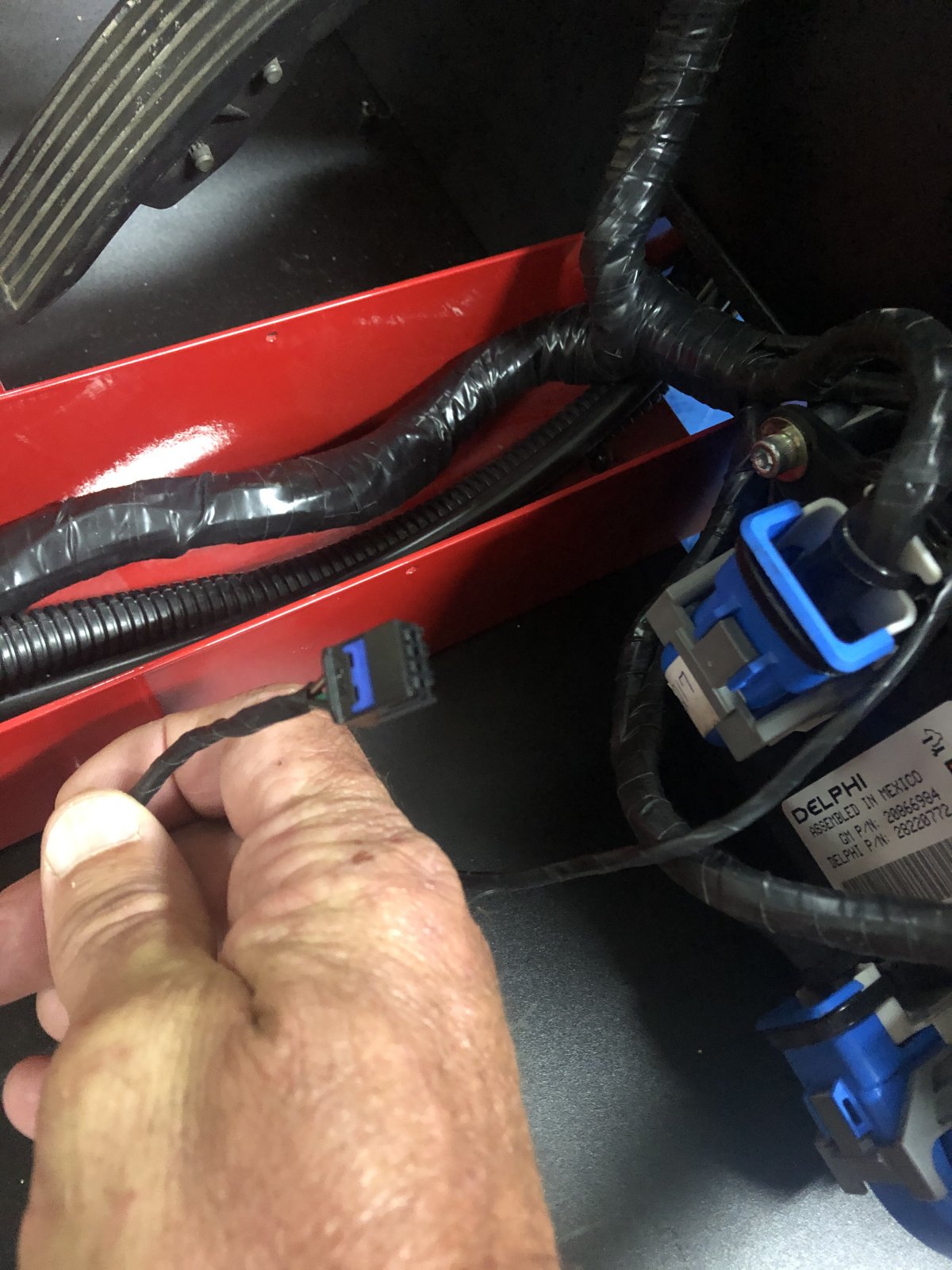

Thanks. Obd2 makes sense. I already have one connector to the clutch pedal position sensor. Is there more than one connector to the clutch?



[Vwsaabvt]

1. obd connector
2. looks like tpms module connector ignition ring connector
3. ambient light sensor connector



[CaptFrank2001]

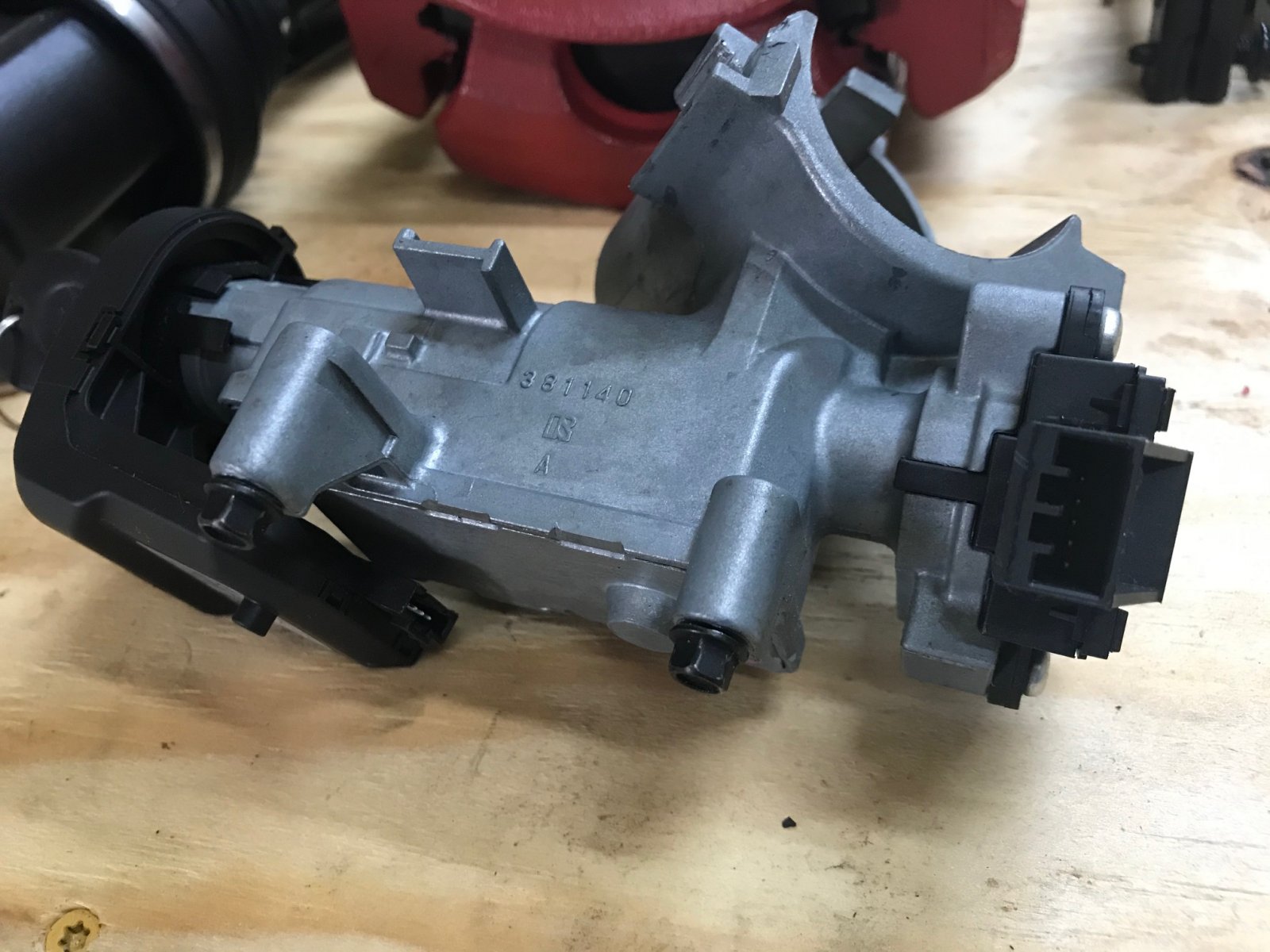

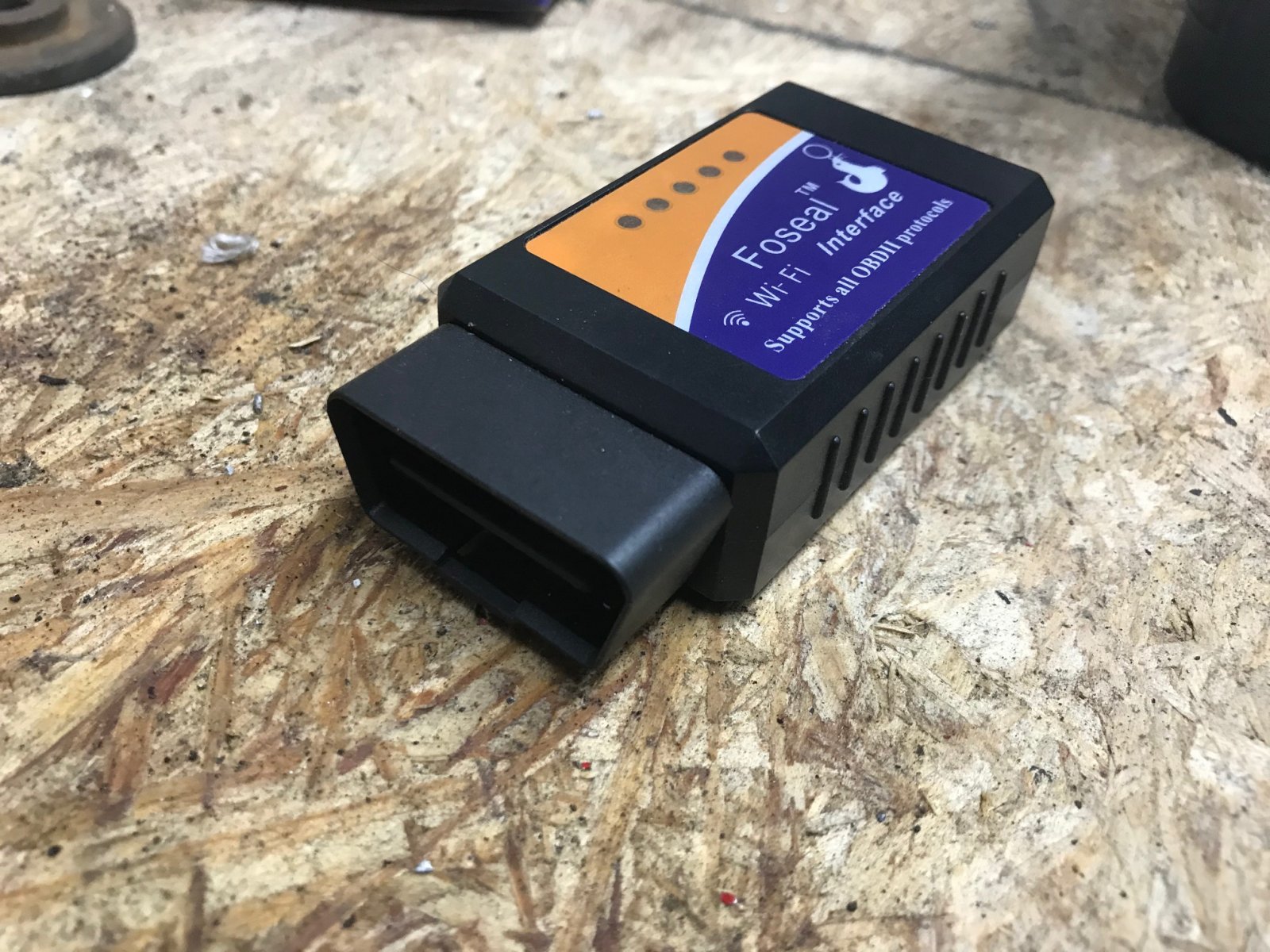

1.) OBDII connector [for aftermarket OBDII reader] 2.) Looks like ignition Switch [need a better picture] 3.) Ambient Light sensor



[Ark :D]

I don't think #2 is the ignition switch, that should be green.



[k.rollin]

1. OBDII Port
2. TPMS/key fob receiver
3. Ambient light sensor



[Brad Beggs]

Well thank you very much! I suppose it’s ok to leave them all disconnected then. No tpms and I don’t think I saved an ambient light sensor.



[k.rollin]

The Cobalt came equipped with automatic lights, and I think I saw something about not having the ambient light sensor causing erratic behavior with the lights. Could be mistaken though.



[CaptFrank2001]

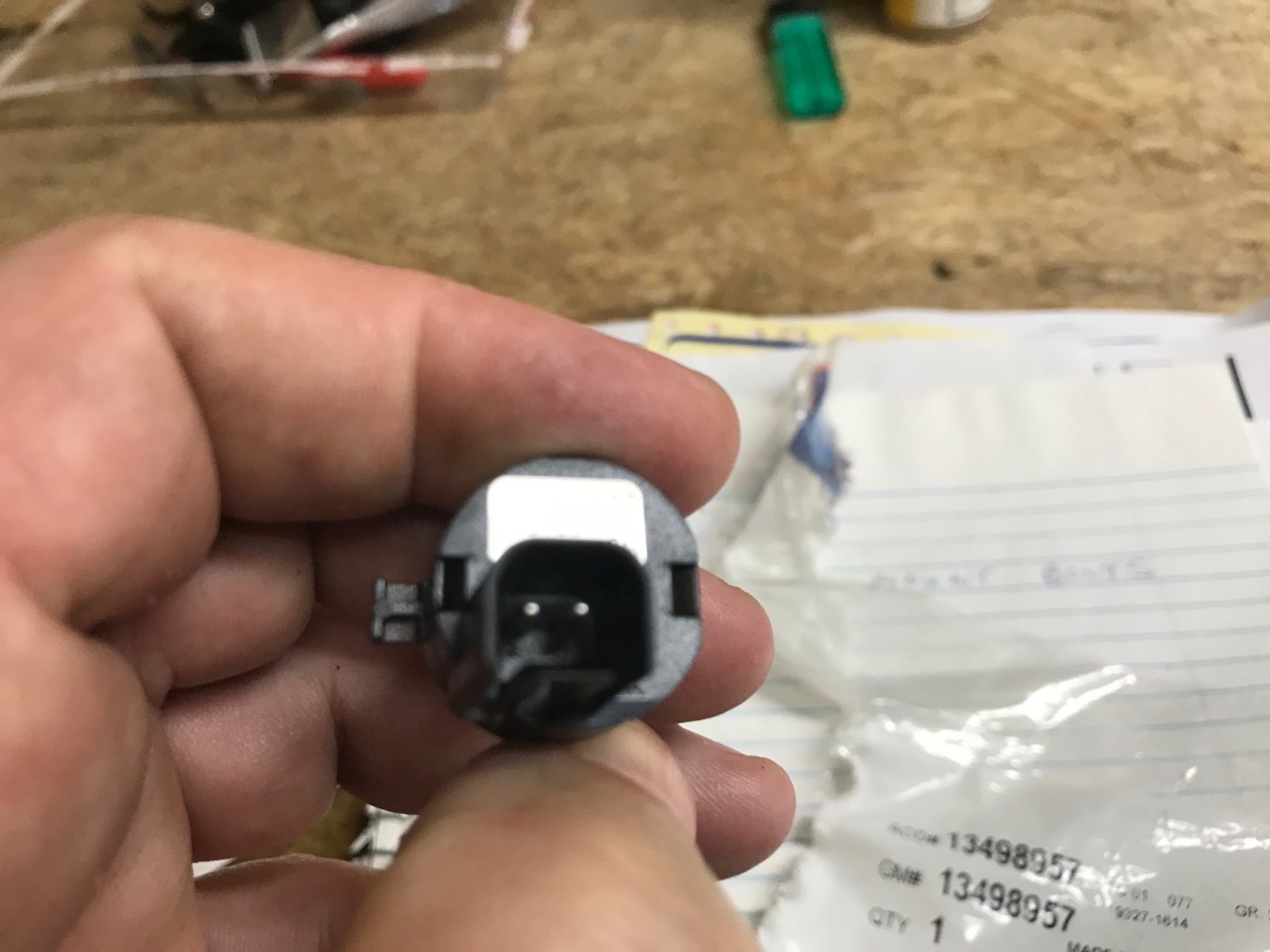

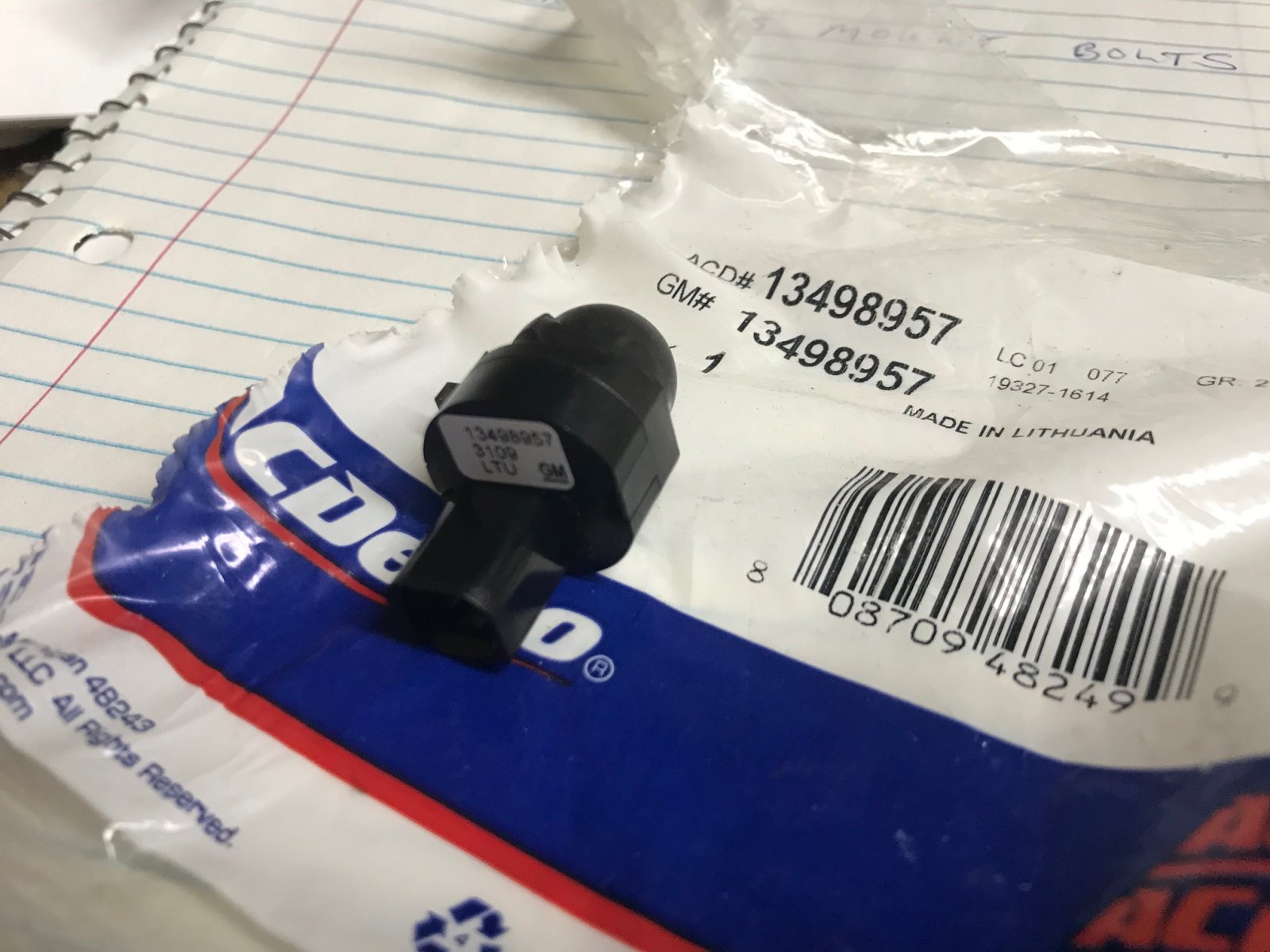

My picture of the Ambient Light Sensor has the part number. if you need it. Good luck



[Brad Beggs]

Found something from the donor that fits the connector near the BCM.



[Brad Beggs]

Found something from the donor that fits the connector near the BCM.

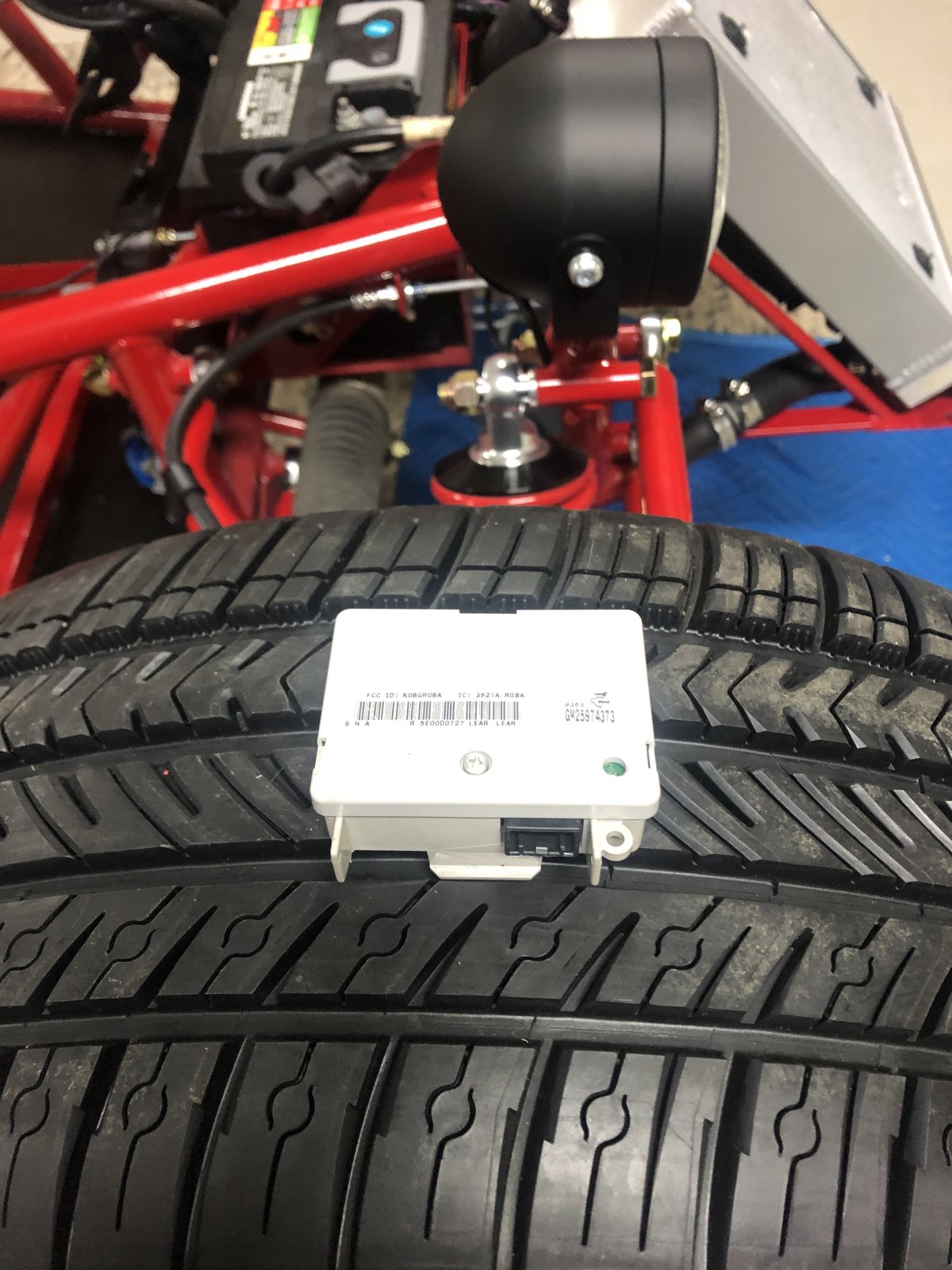

It has an FCC ID number on it



[Ark :D]

Yes, that's your TPMS/keyfob sensor. If you don't have TPMS, then it's only for the keyfob.



[Brad Beggs]

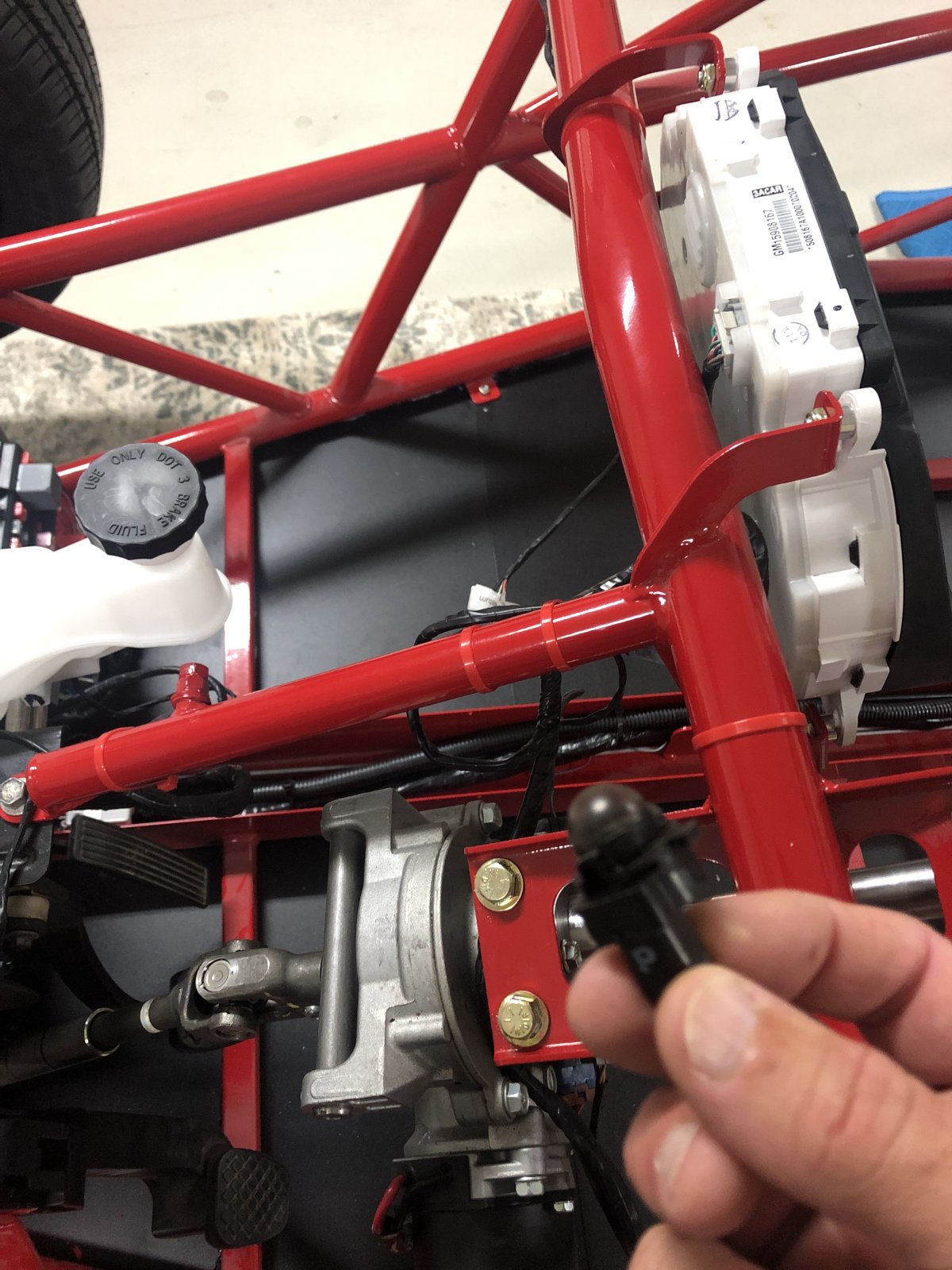

I’ll be darned. I did save the ambient light sensor. And the other device must be the tpms receiver. You guys are awesome. Thanks a bunch



[RouteAbel]

The first large one is your ODB2 port. It doesn't plug into anything and is a port to plug a code scanner in.

The second

The third is the ambient light

Yes, that's your TPMS/keyfob sensor. If you don't have TPMS, then it's only for the keyfob.

Is that required?



[Ark :D]

Is that required?

I do not believe so, but I saw no good reason to take mine out. So I left it in and I've never tried to run without it.
