V1 Data wires.

[95Blitz]

I have the tan/tan blk stripe coming from EPS connector. But the data wires from the ECM are white/brown. Did I mess up in one of the first videos or not? If not would the wires connect like this. White to tan and brown to tan/black stripe?



[Lonny]

Something is not correct.

Starting at the OBDII

From OBDII to the EPS - TN and TN/BK data wires
From the EPS to the BCM - BN and BN/WH data wires
From the BCM you should have TN and TN/BK data wires that will be sent towards the back of your Goblin.

Starting at the ECM

From the ECM you will have a TN and TN/BK data wires which will be sent towards the front of your Goblin

The TN and TN/BK data wires from the ECM will connect to the TN and TN/BK data wires from your BCM.



[95Blitz]

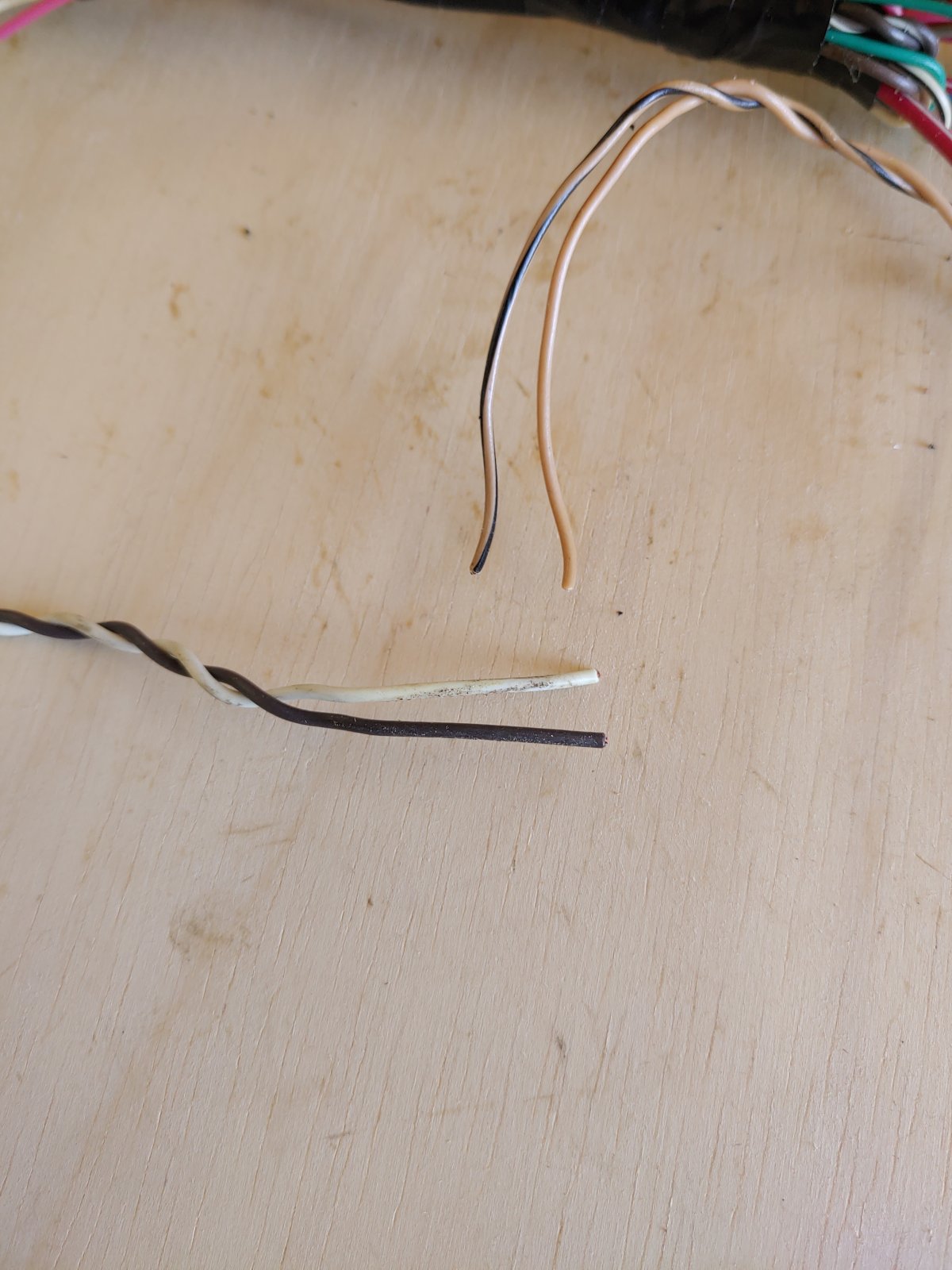

Thank you sir. Cut the harness open at the ECM and found where I had messed up early on and spliced the white/black twisted pair to the tn/TN and blk and forget to right it down... So while I'm here I'm going to solder in the correct color wires..
