Engine harness wiring

[Robf]

Alright so from what I have gathered I can cut off the AC wires grey/blue purple/white as well as the red fan wire?
Whats with the green/white plug?



[Robinjo]

I know the red/black one you have is the stock coolant fan connector. You may have another one lurking around on the same face but other side of the engine. I removed mine, but only after I fired the engine.

I'll default to someone else for the other plugs.



[Ark :D]

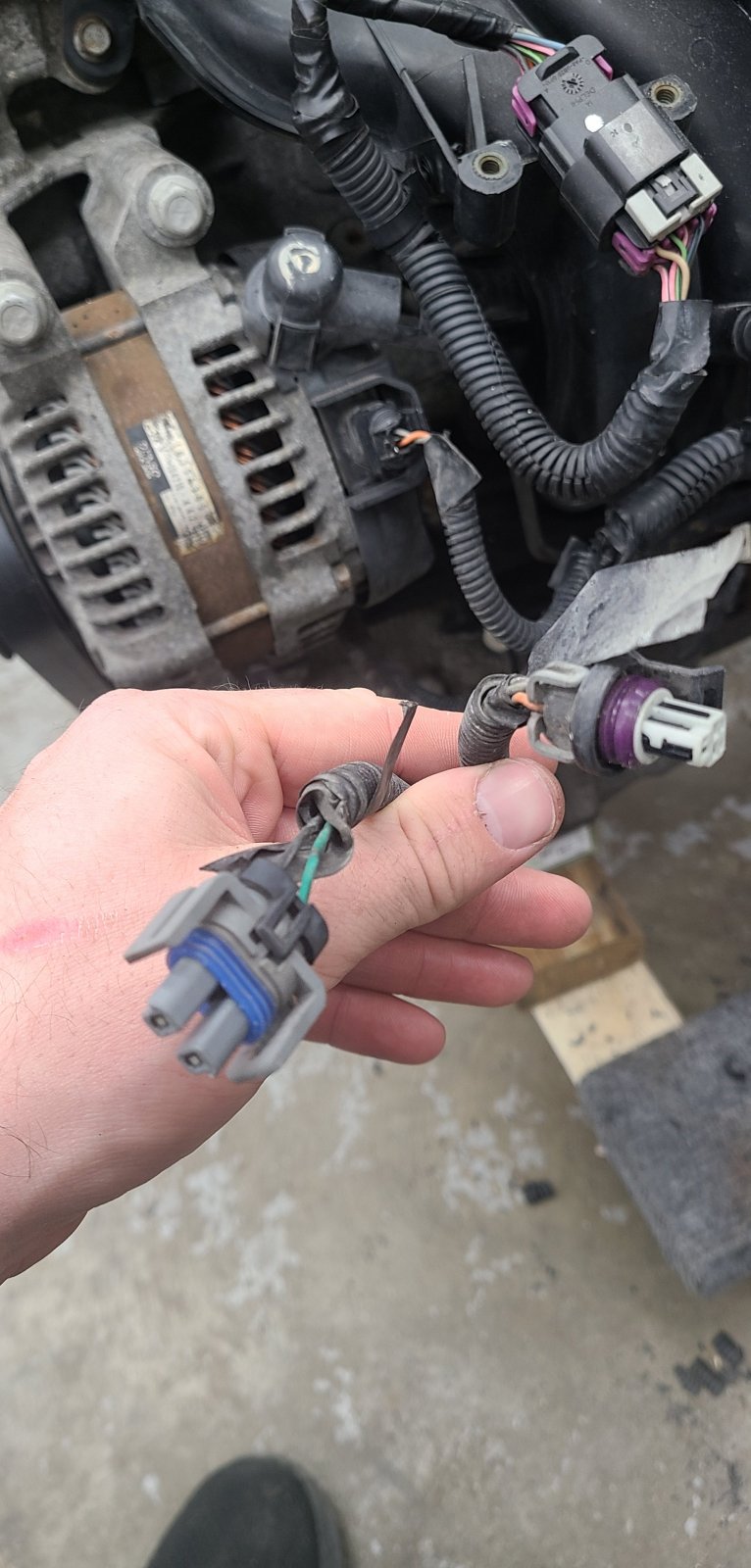

You'll need the light blue wire from the other fan connector. The pictured one is not used, unless you want to keep the gray wire as a backup for the light blue wire from the other connector.



[Robf]

I know the red/black one you have is the stock coolant fan connector. You may have another one lurking around on the same face but other side of the engine. I removed mine, but only after I fired the engine.

I'll default to someone else for the other plugs.

You'll need the light blue wire from the other fan connector. The pictured one is not used, unless you want to keep the gray wire as a backup for the light blue wire from the other connector.

So I can cut the wires in the pics off the engine harness as none of them are used? The radiator fan wire gets extended from the fuse block doesn't it?



[Ark :D]

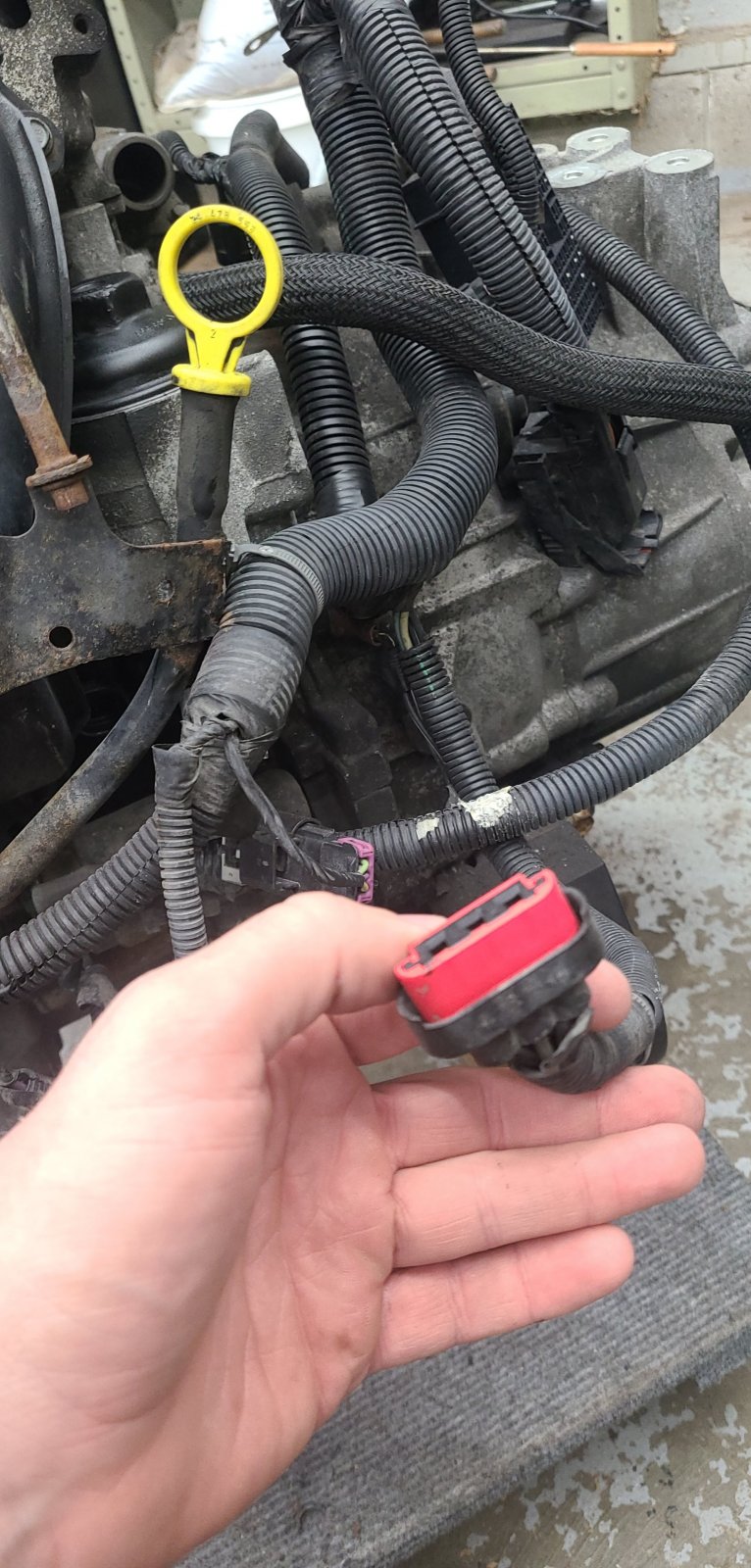

Pretty sure the plugs in your last pic are A/C related and you won't need them. Don't cut the white connector in your first pic, I'm not sure what that one is but you need it.

I didn't cut any off my engine harness, I just bundled the couple unused plugs together and wrapped them up.



[Robf]

Pretty sure the plugs in your last pic are A/C related and you won't need them. Don't cut the white connector in your first pic, I'm not sure what that one is but you need it.

I didn't cut any off my engine harness, I just bundled the couple unused plugs together and wrapped them up.

I guess they won't be visible so I'll just zip tie them to the other wires.



[ah.b.normal]

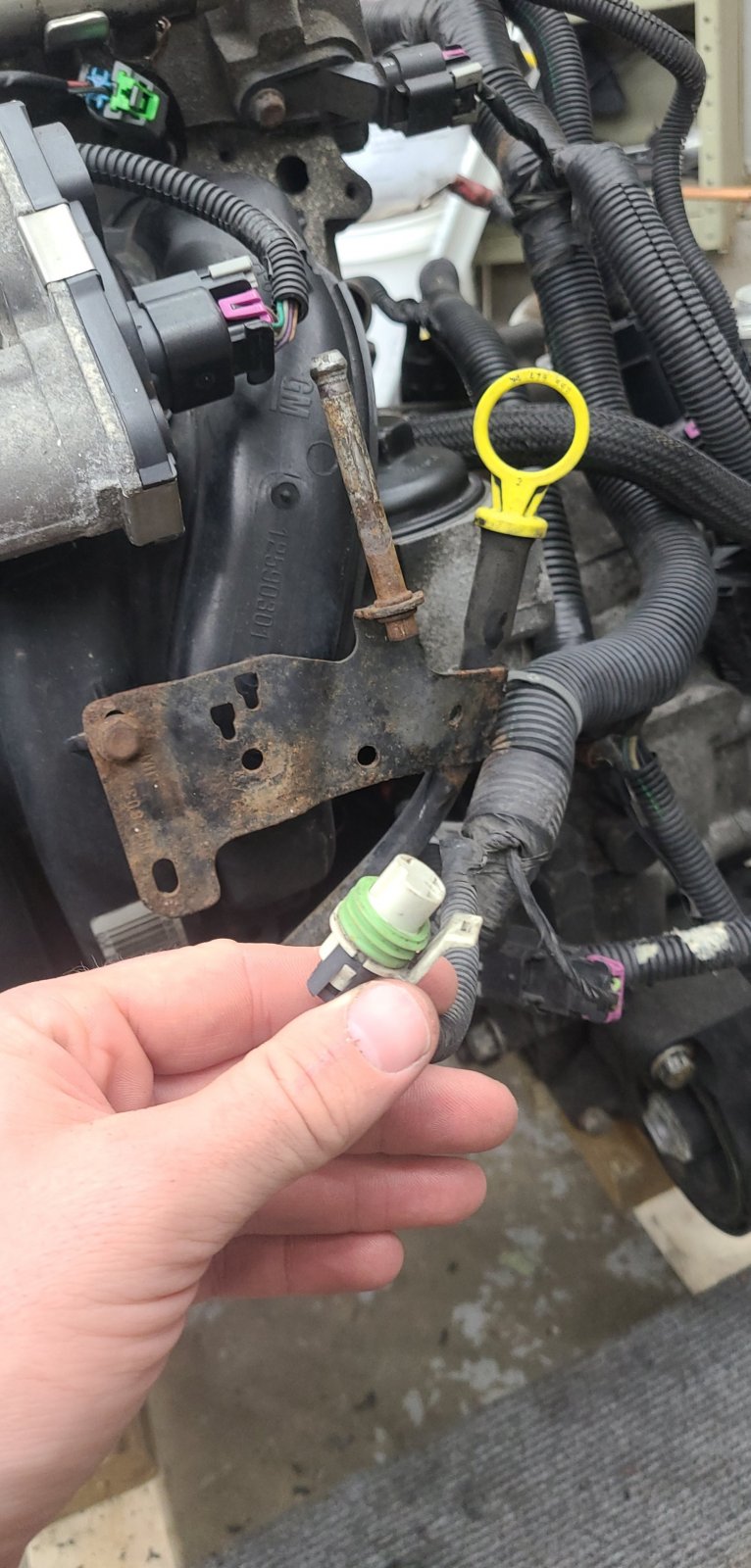

The white plug with green seal I believe is down low on the block, near the crank position sensor. Oil pressure sender? I will dbl check that, but I'm sure enough that I'd be a dollar on it.



[Robf]

The white plug with green seal I believe is down low on the block, near the crank position sensor. Oil pressure sender? I will dbl check that, but I'm sure enough that I'd be a dollar on it.

Yes I found where that one goes. Thanks!
