V1 Fuse box

[dastrups]

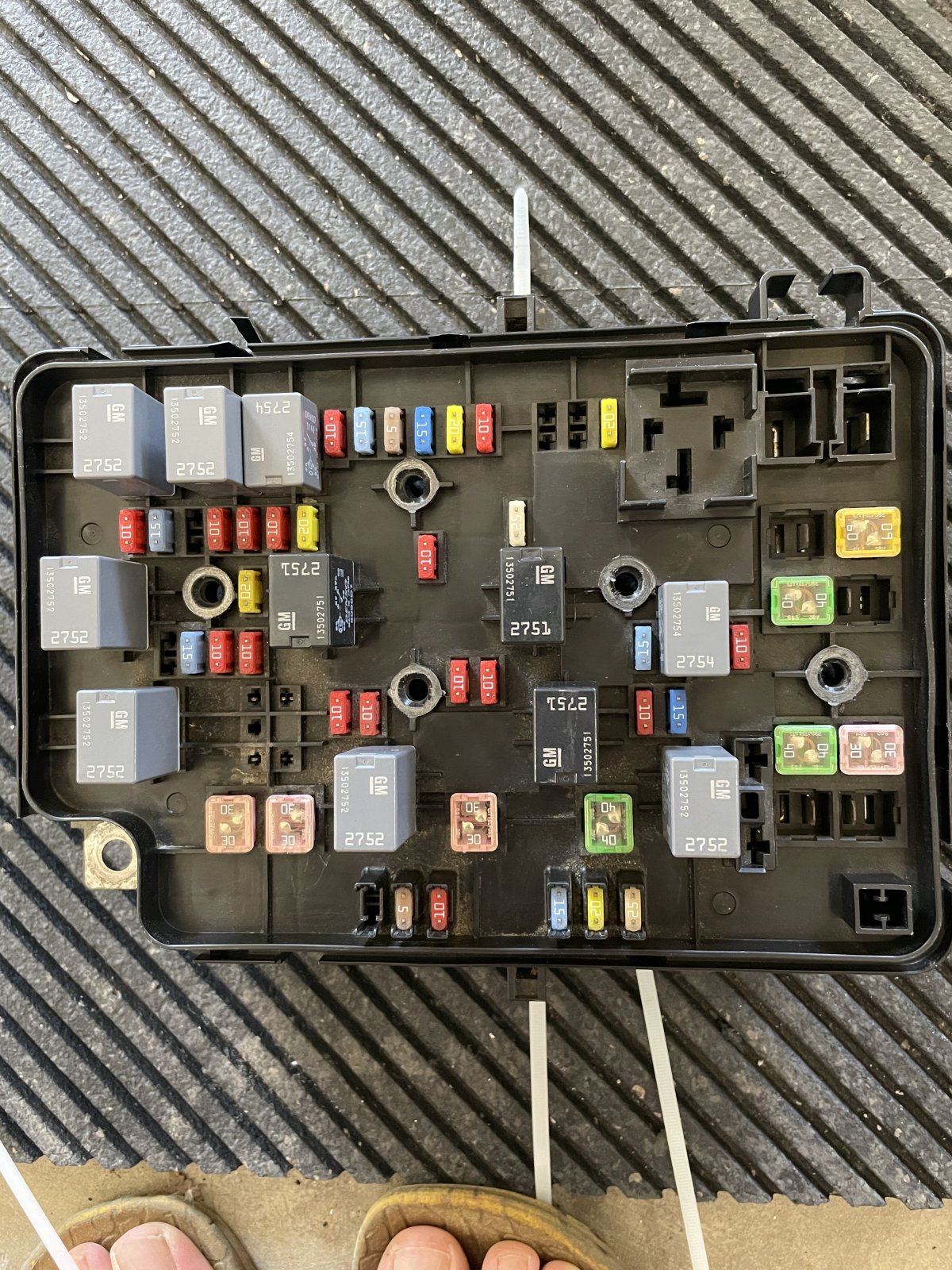

Can anyone verify if I have the right fuses according to this picture? This is for a 2008 Chevy cobalt ss.



[Brett]

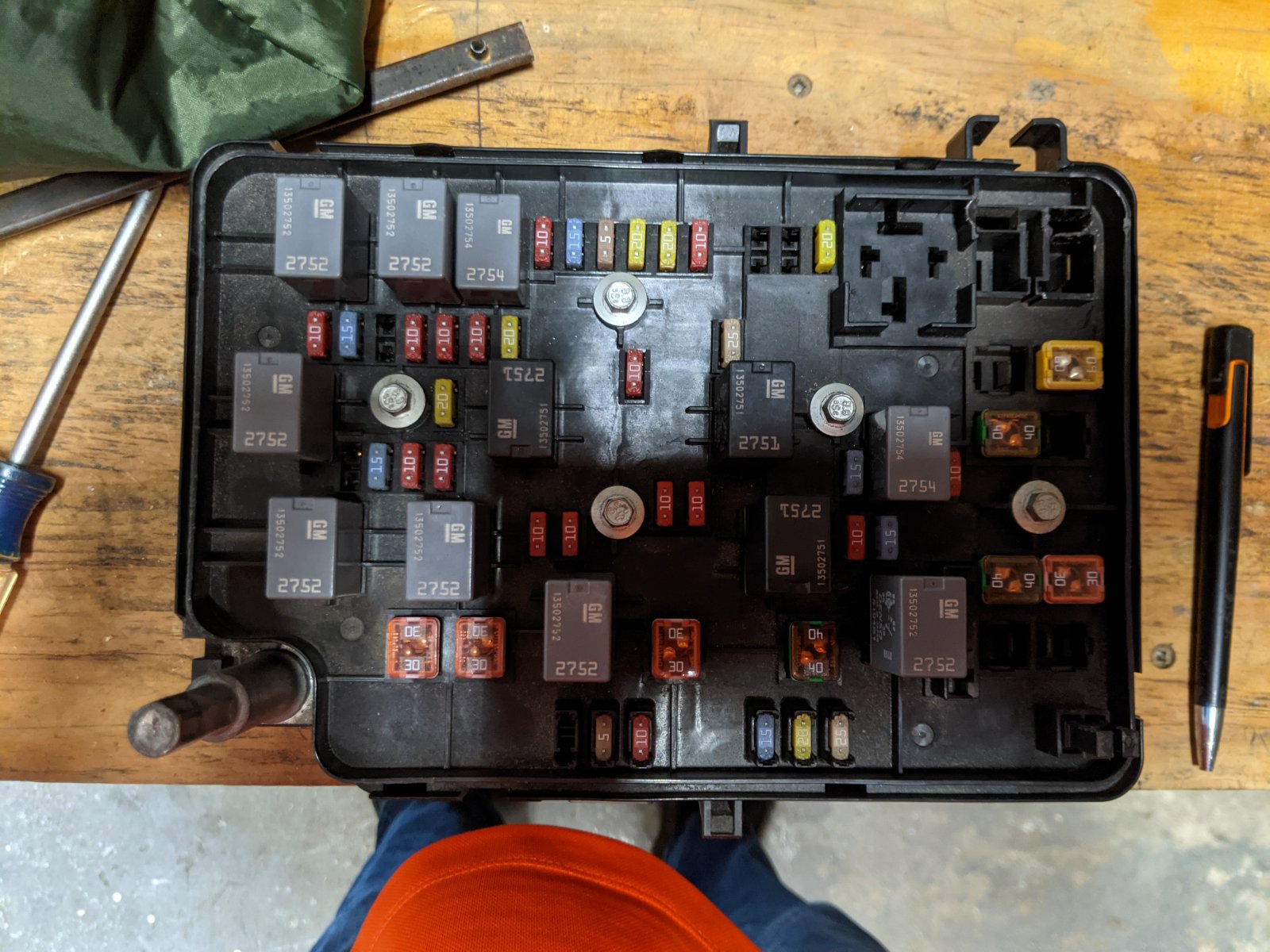

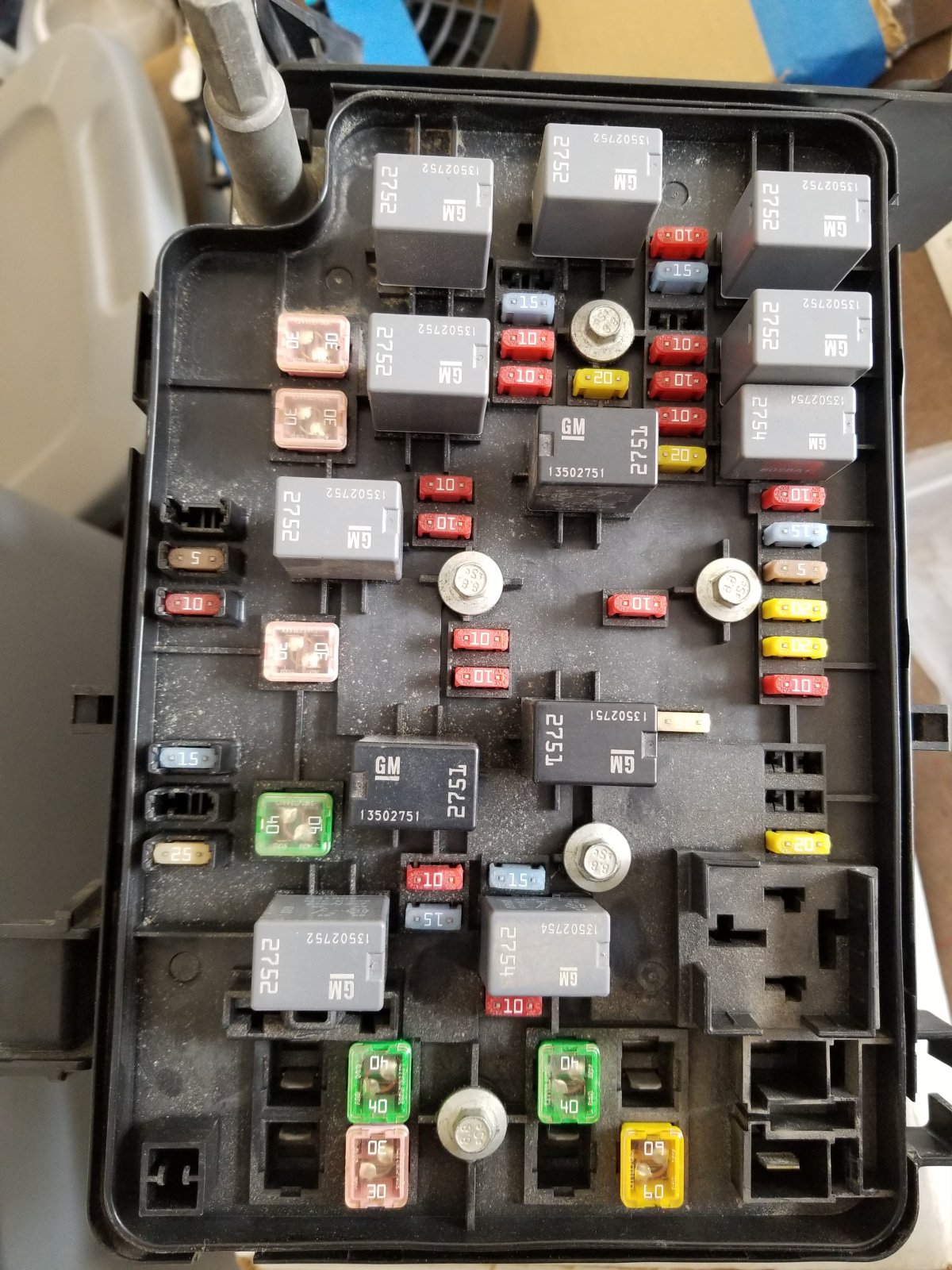

Here is a photo of mine from a 2008 SS. Looks to be the same.



[dastrups]

Here is a photo of mine from a 2008 SS. Looks to be the same.

Thank you!



[Desert Sasqwatch]

Here is a photo of mine from a 2008 SS. Looks to be the same.

Confirming.



[OptimizePrime]

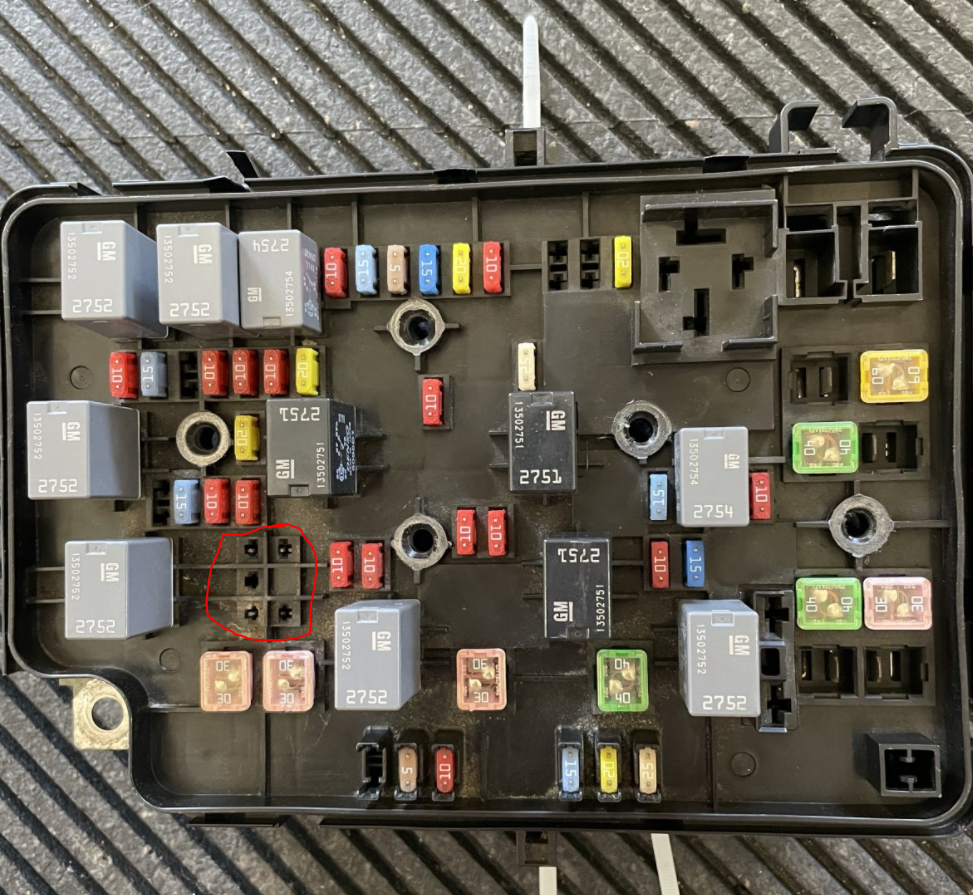

You're missing a 2752



[Brett]

Good catch. I didn't see that before. Looks to be labeled "CRNK". That might cause an issue. I think you can use the rear defrost relay as a substitute without issue. That would be the lower right relay in Prime's photo.



[dastrups]

I had taken it out to jump start the motor. It also looks like I have a 15a fuse in the lighter/outlet location where I should have a 20a. I know that this one has something to do with the OBD2 so I wonder if that would cause my OBD2 to not work.



[Desert Sasqwatch]

I had taken it out to jump start the motor. It also looks like I have a 15a fuse in the lighter/outlet location where I should have a 20a. I know that this one has something to do with the OBD2 so I wonder if that would cause my OBD2 to not work.

Only if the fuse is blown. Since you no longer have a lighter, leaving the 15A fuse shouldn't cause any issues with OBD functions.
