V1 Mirror wiring

[Stretch2126]

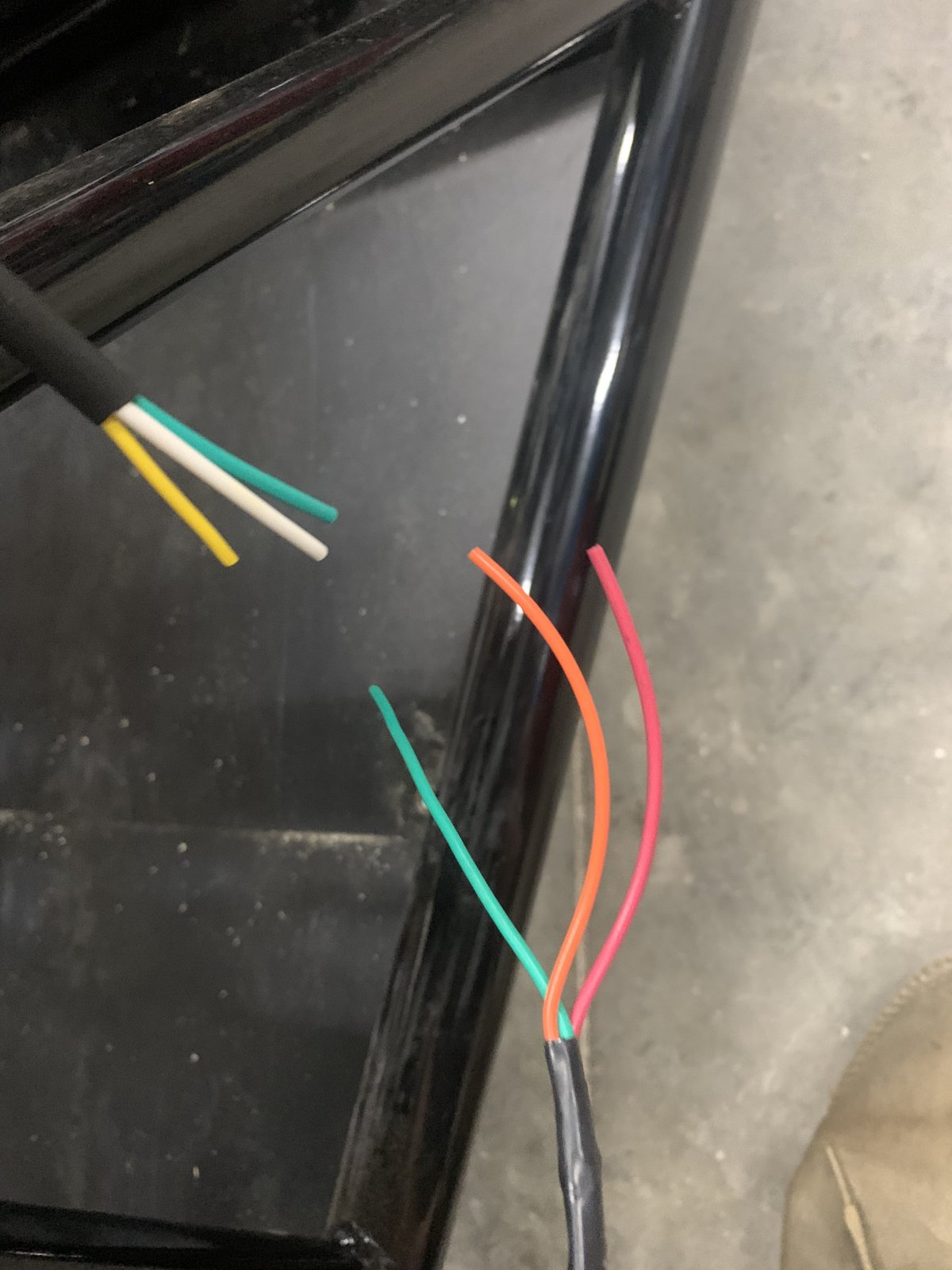

Does anyone have the color order of the wires for the side mirrors? I know on one thread they have matching colors that go to different wires (all orange, red, and green but match differently). My chassis wires are orange, red, and green, then the mirror wires are green, white, and yellow. I don’t know if I could hurt a bulb just checking wires so any input would be great.



[Stretch2126]

Reference



[r3drckt]

This what you are looking for?

Tailight wiring help needed

I have the DF supplied taillights which have the 2 connectors, one with 2 wires and one with 3 wires. Does anyone have a diagram of how the 4 harness wires are connected to these? I looked but only found info on non-DF supplied lights. Thanks!

dfkitcar.com



[Stretch2126]

This what you are looking for?

Tailight wiring help needed

I have the DF supplied taillights which have the 2 connectors, one with 2 wires and one with 3 wires. Does anyone have a diagram of how the 4 harness wires are connected to these? I looked but only found info on non-DF supplied lights. Thanks!

dfkitcar.com

Sort of but none of my wires are really the same color.



[r3drckt]

Think it’s the old wires being faded and dirty, but they look the same to me.

Red>Green lamp
Orange>yellow lamp
Green>white lamp

Either way, you won’t hurt any bulbs testing them out. Just don’t solder them together until you have them connected right. I terminated my ends then put them together until I had the right order, then slid the wires into the connector to secure them in the correct order.



[Gtstorey]

Is the wiring harness mostly installed? Use a voltage meter or test light to see what is hot by testing.



[Stretch2126]

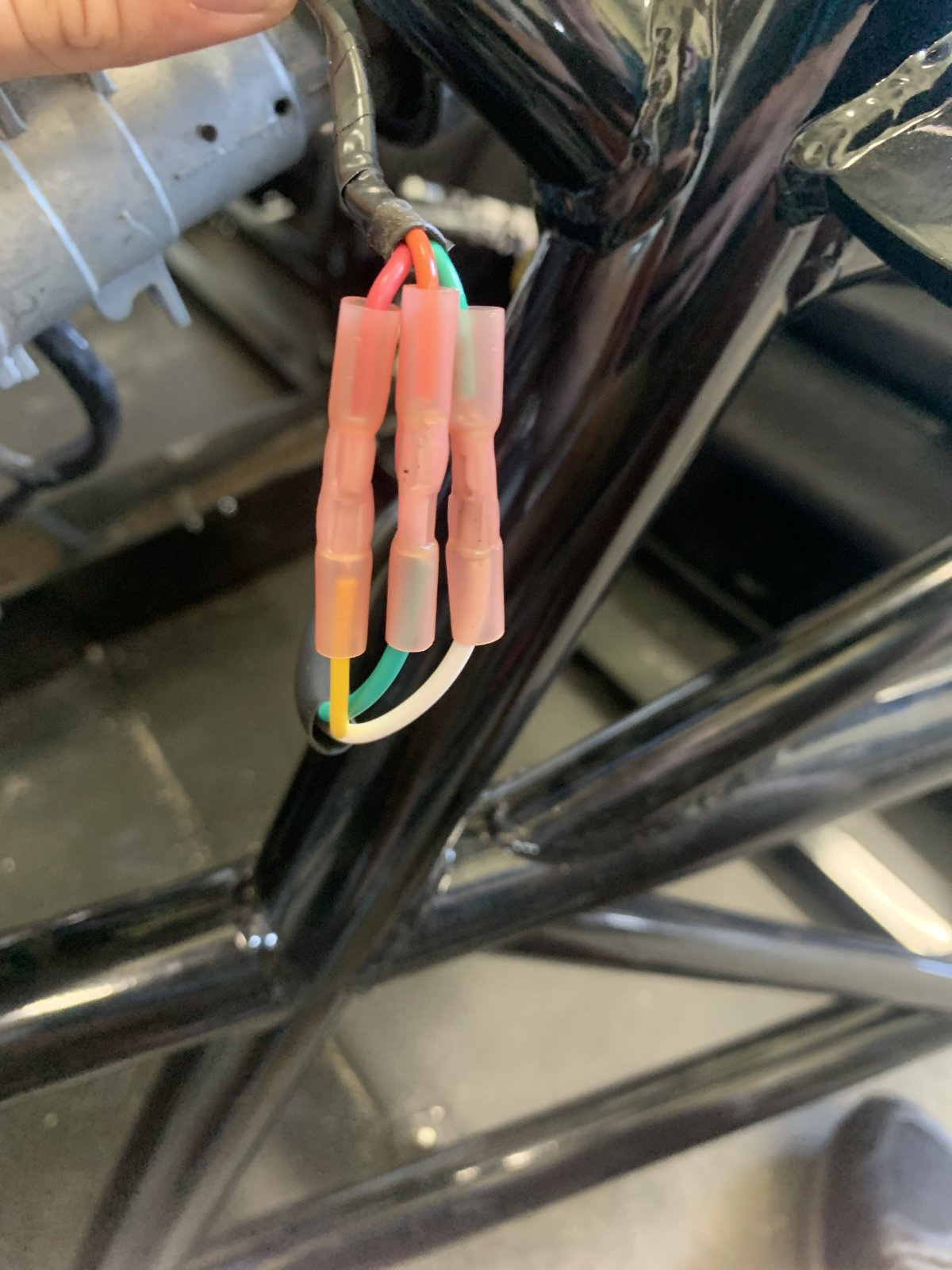

Got it figured out. Here’s a photo if anyone has this in the future.



[Robinjo]

I’ll need that in the near future. Thanks!
