V1 2007 L61 - Fuel pump wires accidentally removed
- Adam Administrator
We checked the fuel pump wiring for a 2009 2.2 LAP and a 2007 2.2 L61 and they do use the same pins. Two of the wires (purple and tan) go to the upper PCM connector and one wire (gray) goes to white block under the fuse box. The fourth wire is ground and needs to go from the fuel pump plug to ground. Here are some photos of the pin locations:
It is pretty easy to see the location of the gray wire:

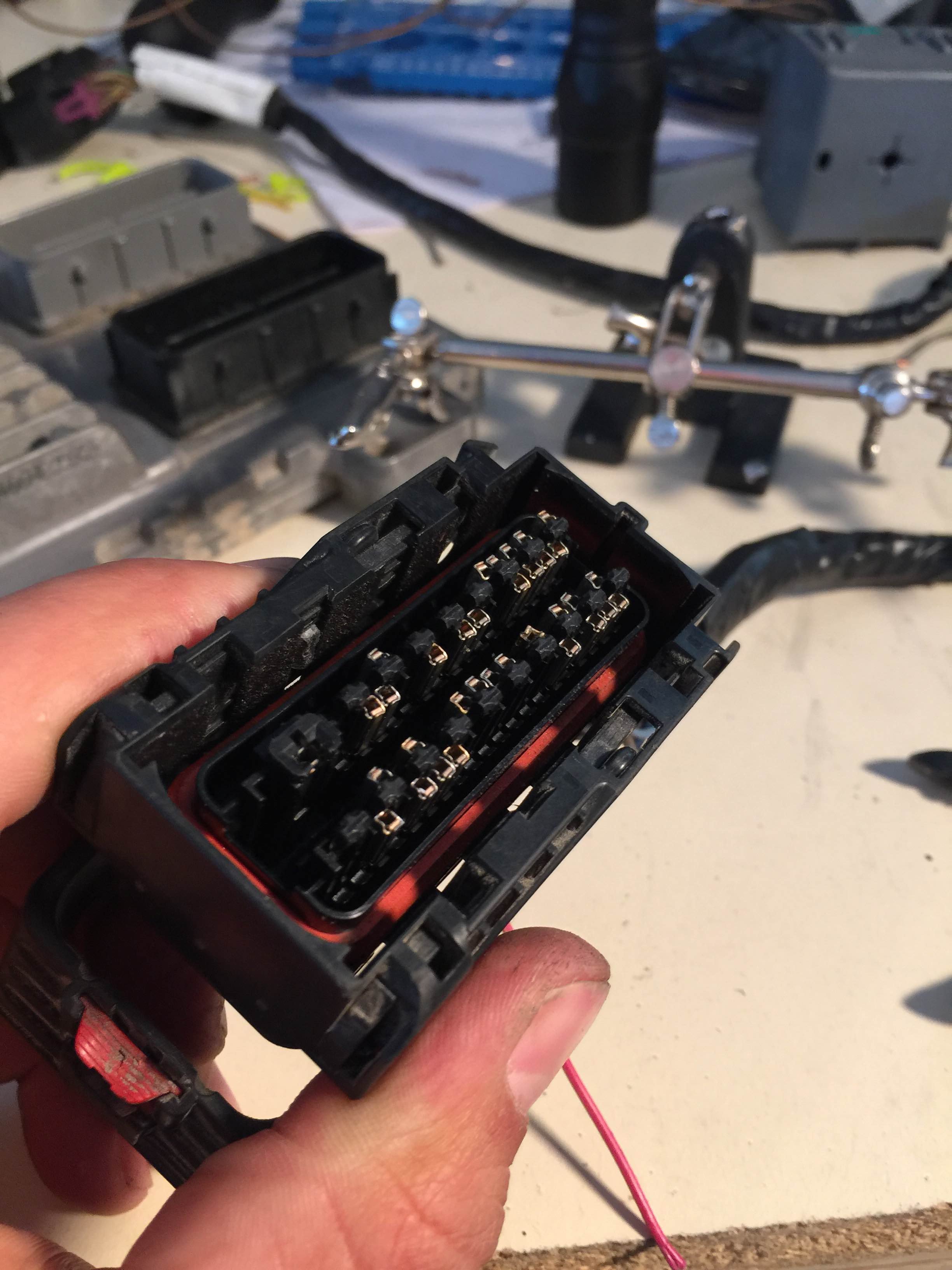

To locate the tan and purple wires, hold the PCM connector with the wires coming out of the plug toward you and leading off to the right (see photos). The tan wire is on the second row from the bottom, 8 holes from the right:
The purple wire is on the second row from the top, 7 holes from the right:
It is pretty easy to see the location of the gray wire:
To locate the tan and purple wires, hold the PCM connector with the wires coming out of the plug toward you and leading off to the right (see photos). The tan wire is on the second row from the bottom, 8 holes from the right:
The purple wire is on the second row from the top, 7 holes from the right:
smithvmi
Active Member
- smithvmi Active Member
Adam you rock! Thanks!

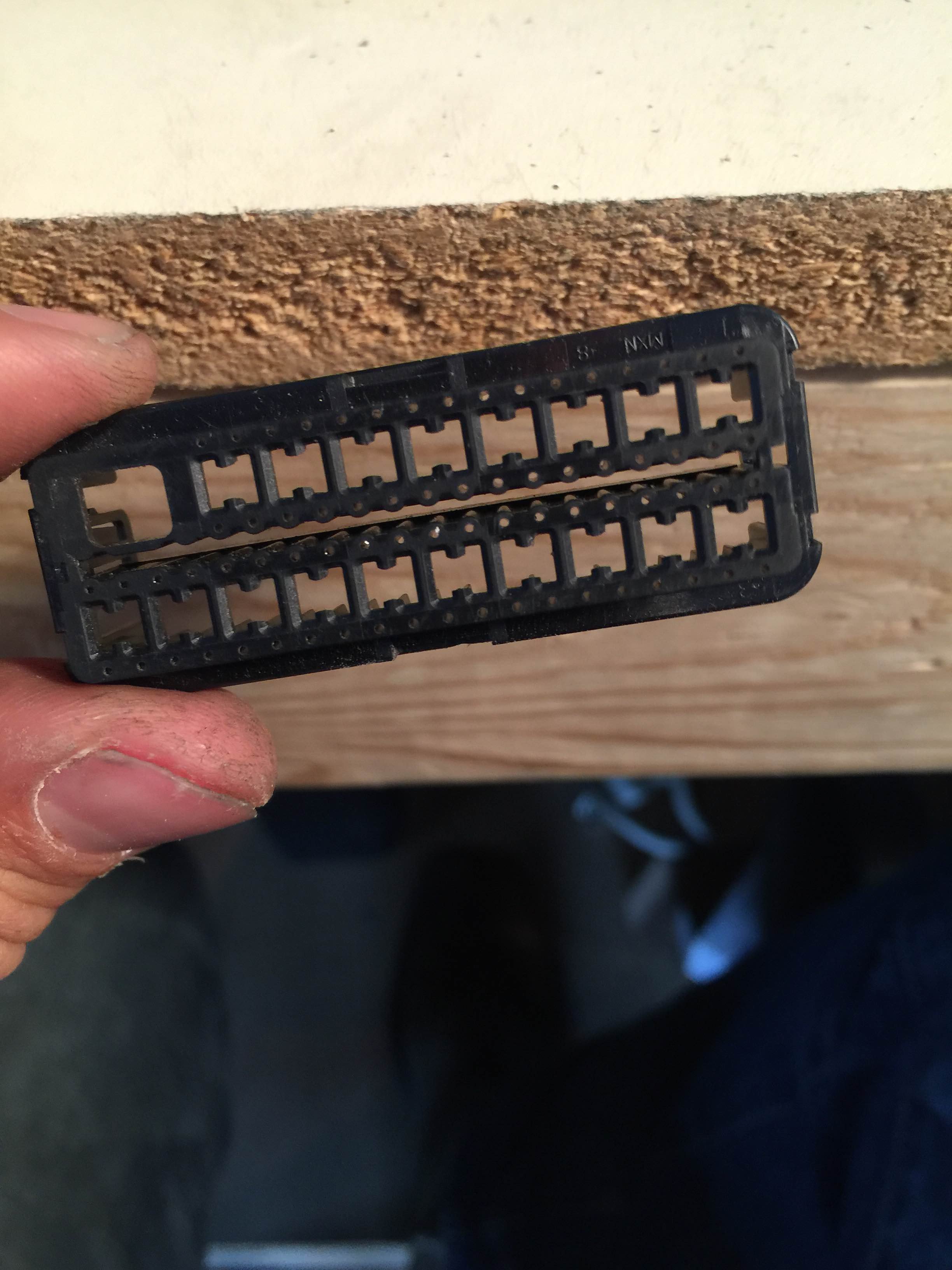

If anyone else runs into this issue, or any situation where you have to repin the wires, make sure you pop off the face and pull the pins out through the connection side, then feed the wire back through from the connection side to the rear of the connector.
If anyone else runs into this issue, or any situation where you have to repin the wires, make sure you pop off the face and pull the pins out through the connection side, then feed the wire back through from the connection side to the rear of the connector.
