V1 Clutch line

[PHENDERSON]

Trying to figure out how to connect all this. I have the line coming from the front of the car and then the original one that has a screw in fitting to secure it to the trans, both have similar ends. Does anyone have pics of how to route these or just an explanation? It's probably simple and I'm making it more difficult than needs to be.



[PHENDERSON]

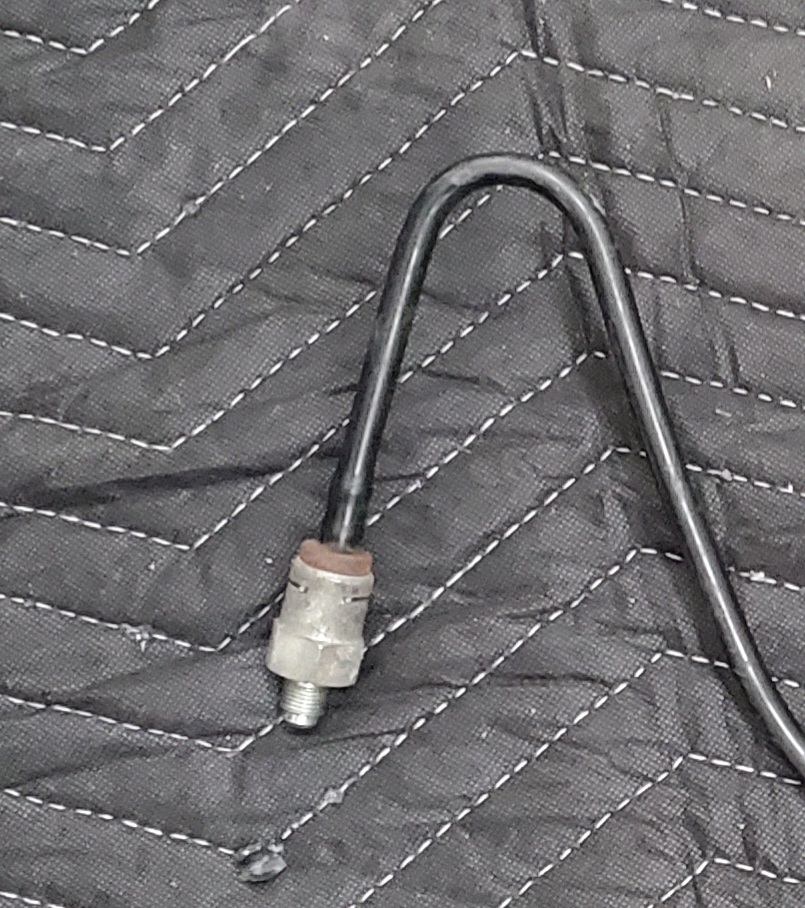

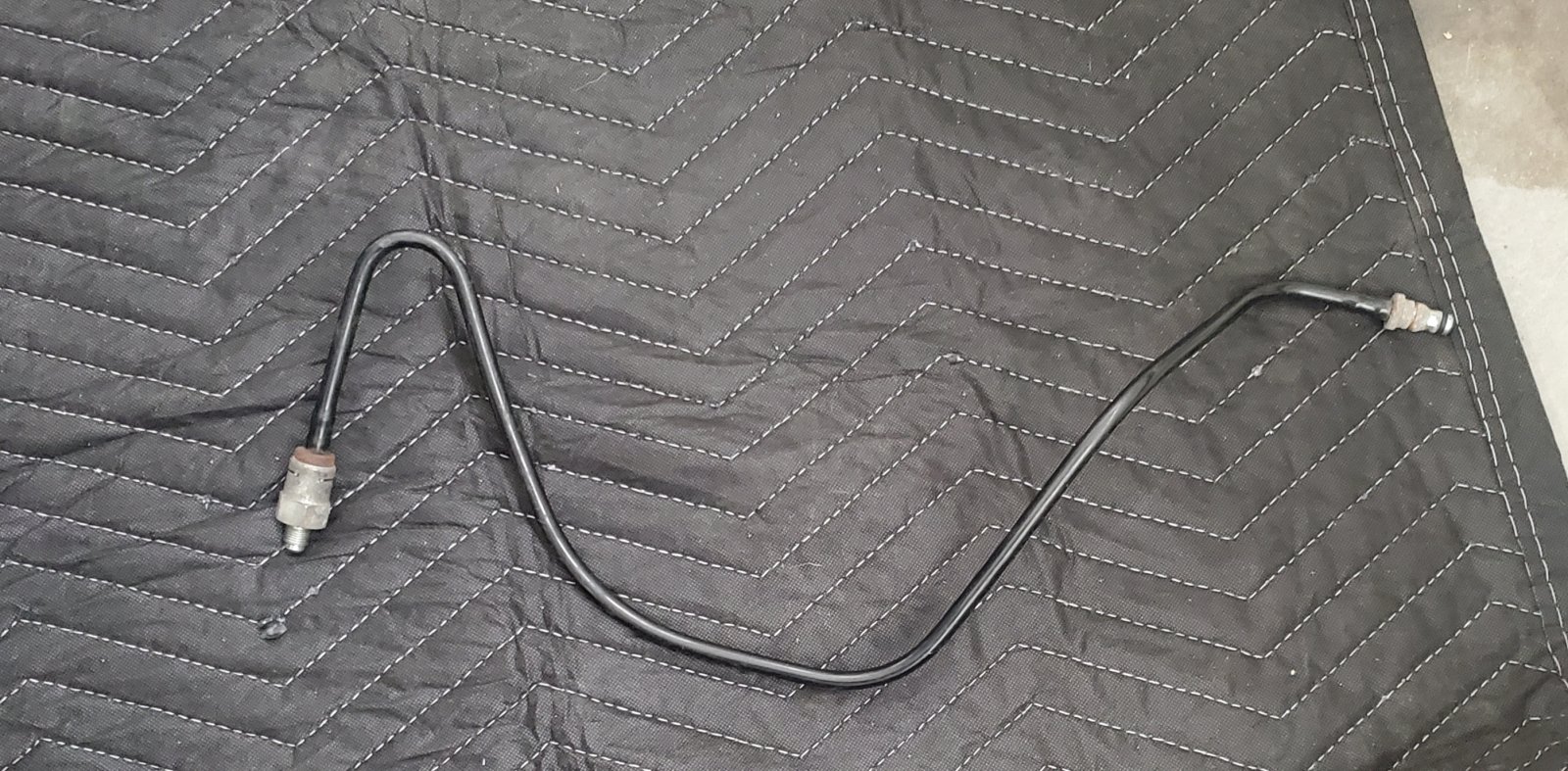

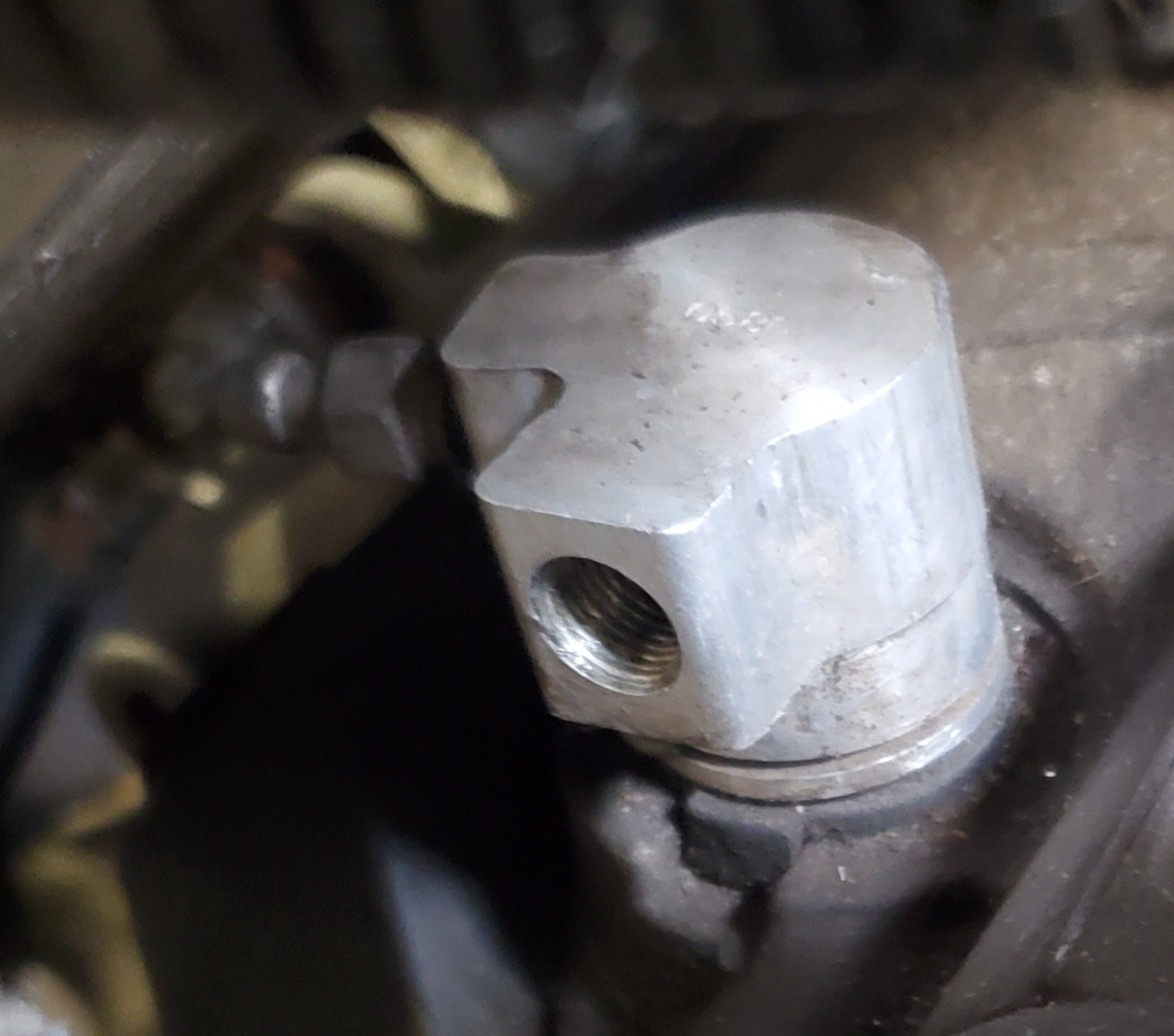

Diagrams would suggest the line from the front (master cylinder) is connected directly to the clutch T but that hole is threaded and seems to small.



[r3drckt]

The clutch line from the front should go straight into the elbow at the transmission. Can you take a picture of this connection?



[PHENDERSON]

I should be able to get out and take a pic shortly. Can someone with a completed one take a pick so I can see what it's supposed to look like, at the elbow on top of the trans.



[PHENDERSON]

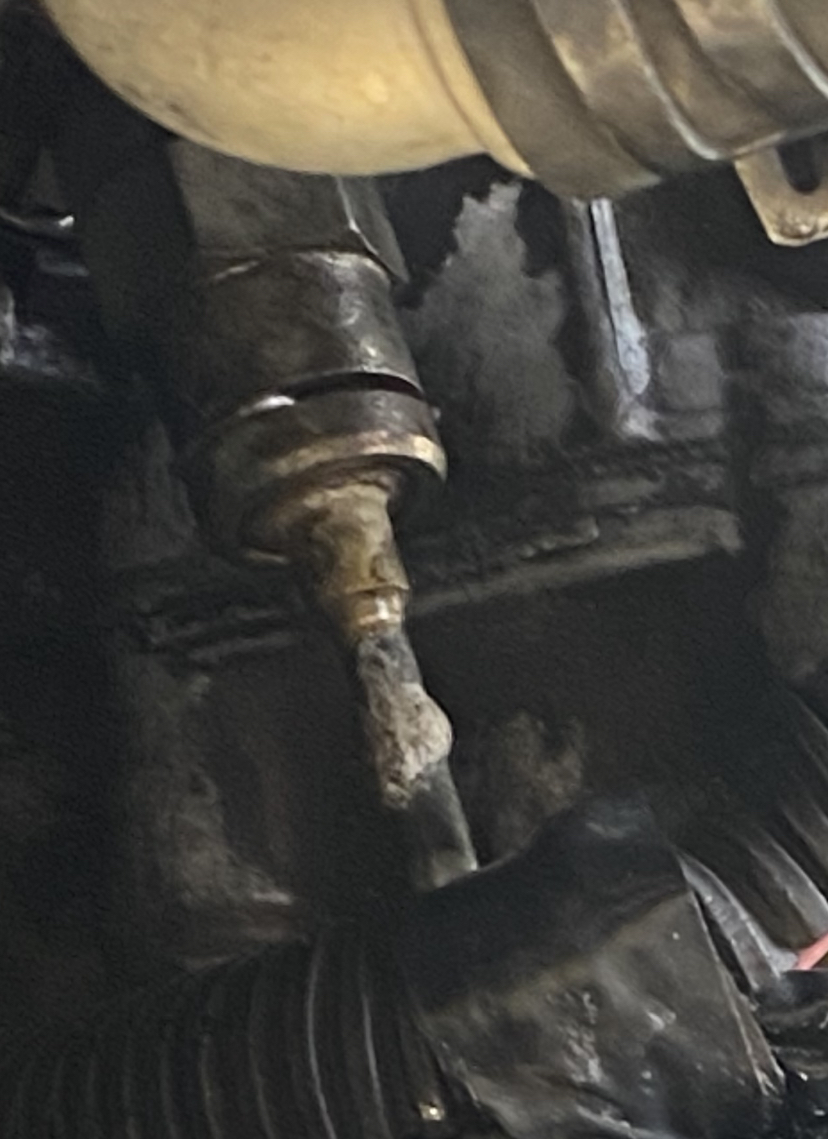

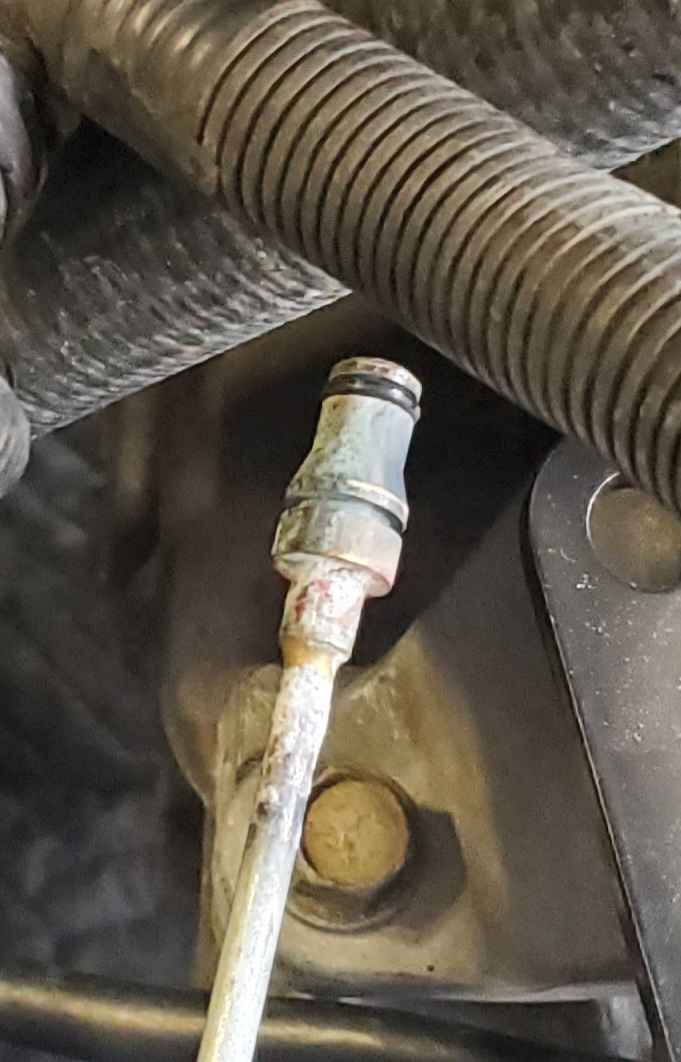

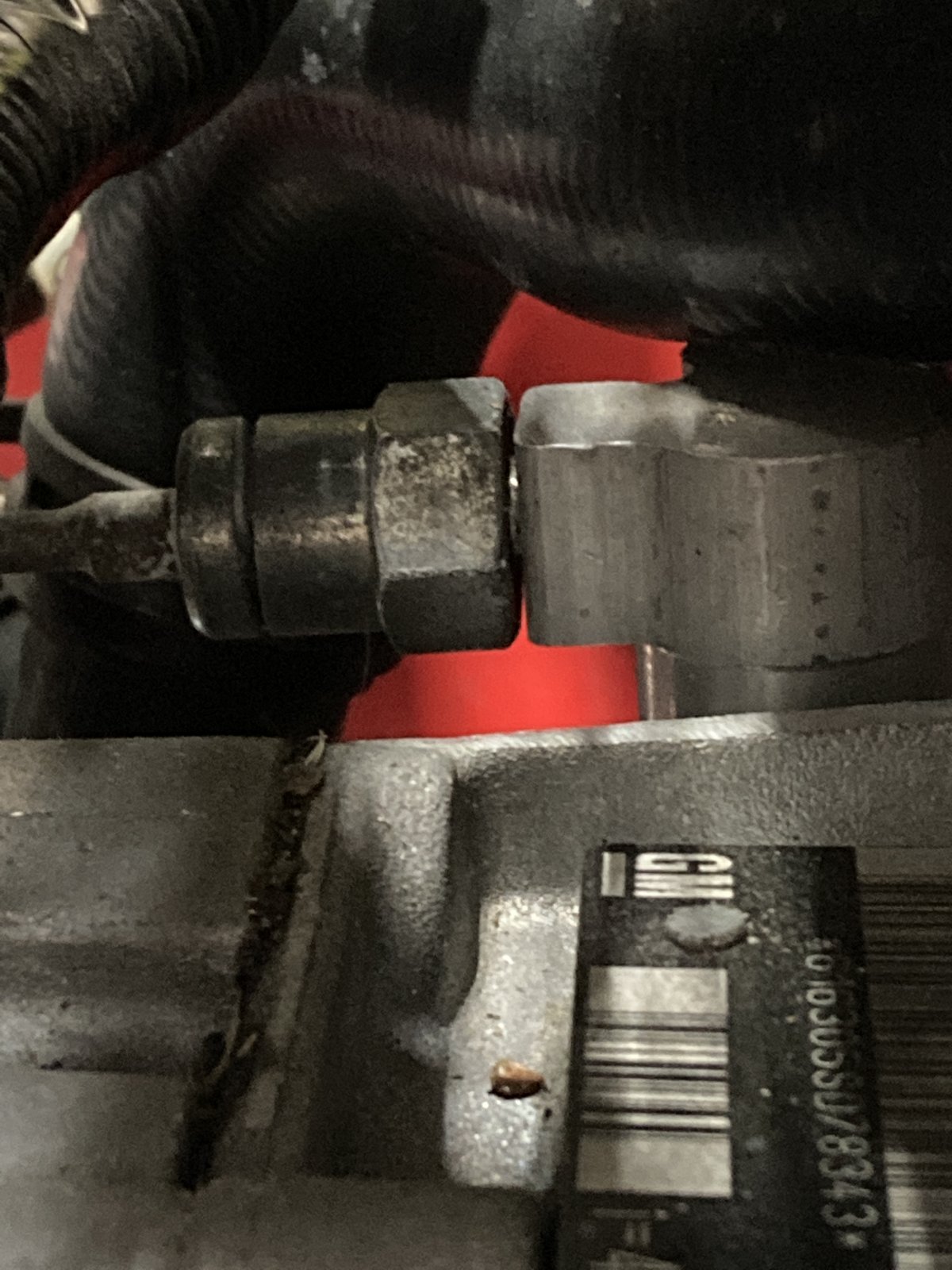

This is what mine looks like.



[Gtstorey]

you are missing something



[PHENDERSON]

Do I take the screw in part from the original line and insert the new tip from the goblin into it or is that a part that is replaced from the kit?



[Rttoys]

Yep. take the screw part off and put it on the elbow on the car. Then the quick connect from DF attaches to that.



[PHENDERSON]

Great, thank you!



[r3drckt]

There is a clip in that screw in part that gets pulled out and then the clutch line will pull out of it.



[PHENDERSON]

That makes sense. Not sure what I'd do without this forum.
