To help stabilize the hitch and have a connection point for the chains, weld on a couple small thick metal plates to the sides of the tube and onto the subframe.



[Jareth]

I obviously did not learn the golden rule “label every bag hardware goes into”

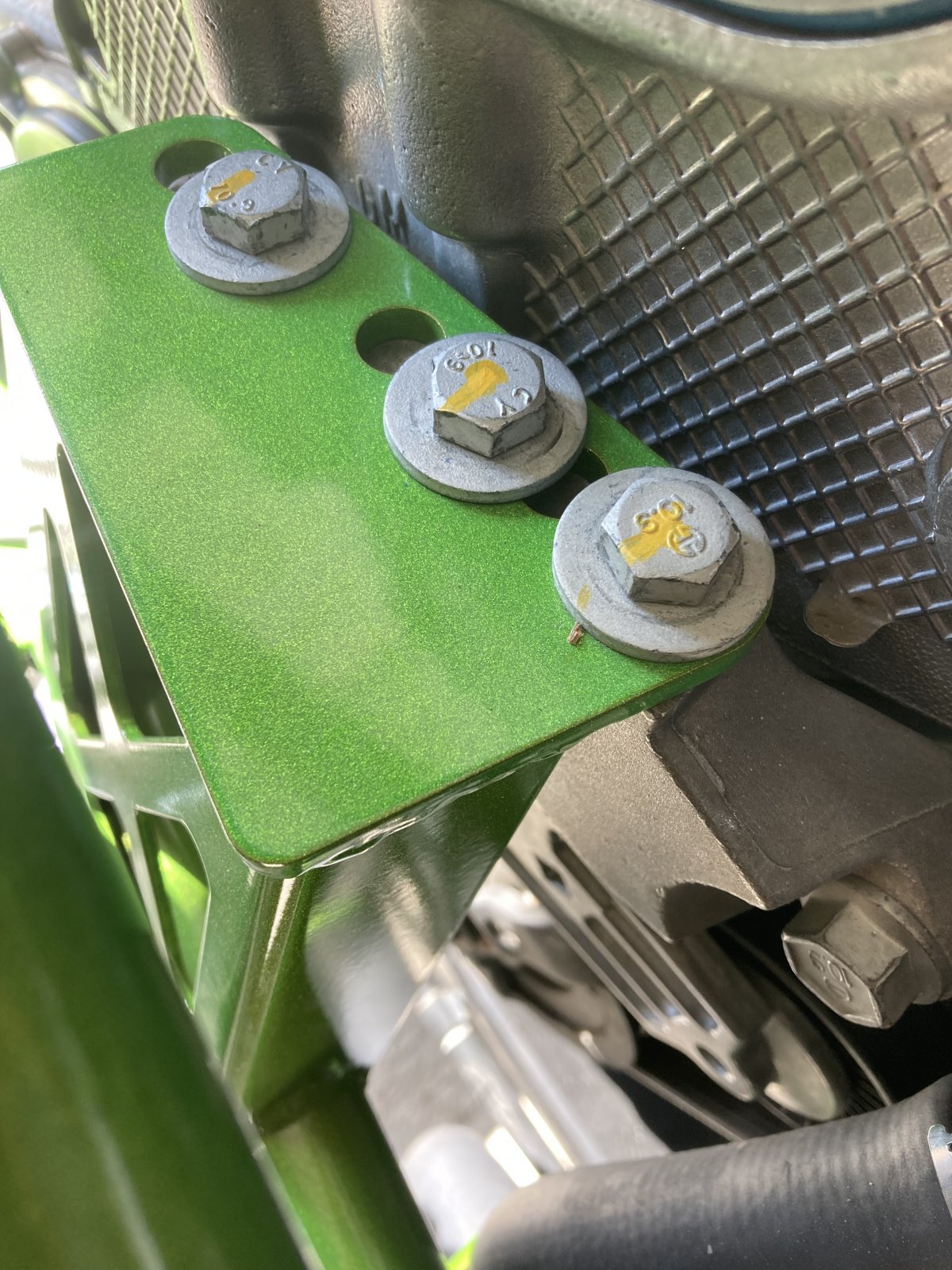

Are these the correct bolts for mounting the engine from the top, with the longer one going on the transmission side with the spacers?

.



[Jareth]

Welds May not be the prettiest welds but I’m grateful for one of my coworkers to drive out to my place yesterday.

I have some JB-Weld coming just to smooth out the imperfections of the surface.



[Scott #321]

Welding a couple of D-rings or large chain links also will keep you out of trouble for safety chain mounting without having to scratch the finish wrapping chains around the subframe. That is unless you have the ability to fab a lower plate as pictured by Desert Sasqwatch above. Might want to consider a attachment point for trailer light wiring plug at this point unless you plan to use zip ties or screwed mounting.



[Joebob]

I obviously did not learn the golden rule “label every bag hardware goes into”

Are these the correct bolts for mounting the engine from the top, with the longer one going on the transmission side with the spacers?

.

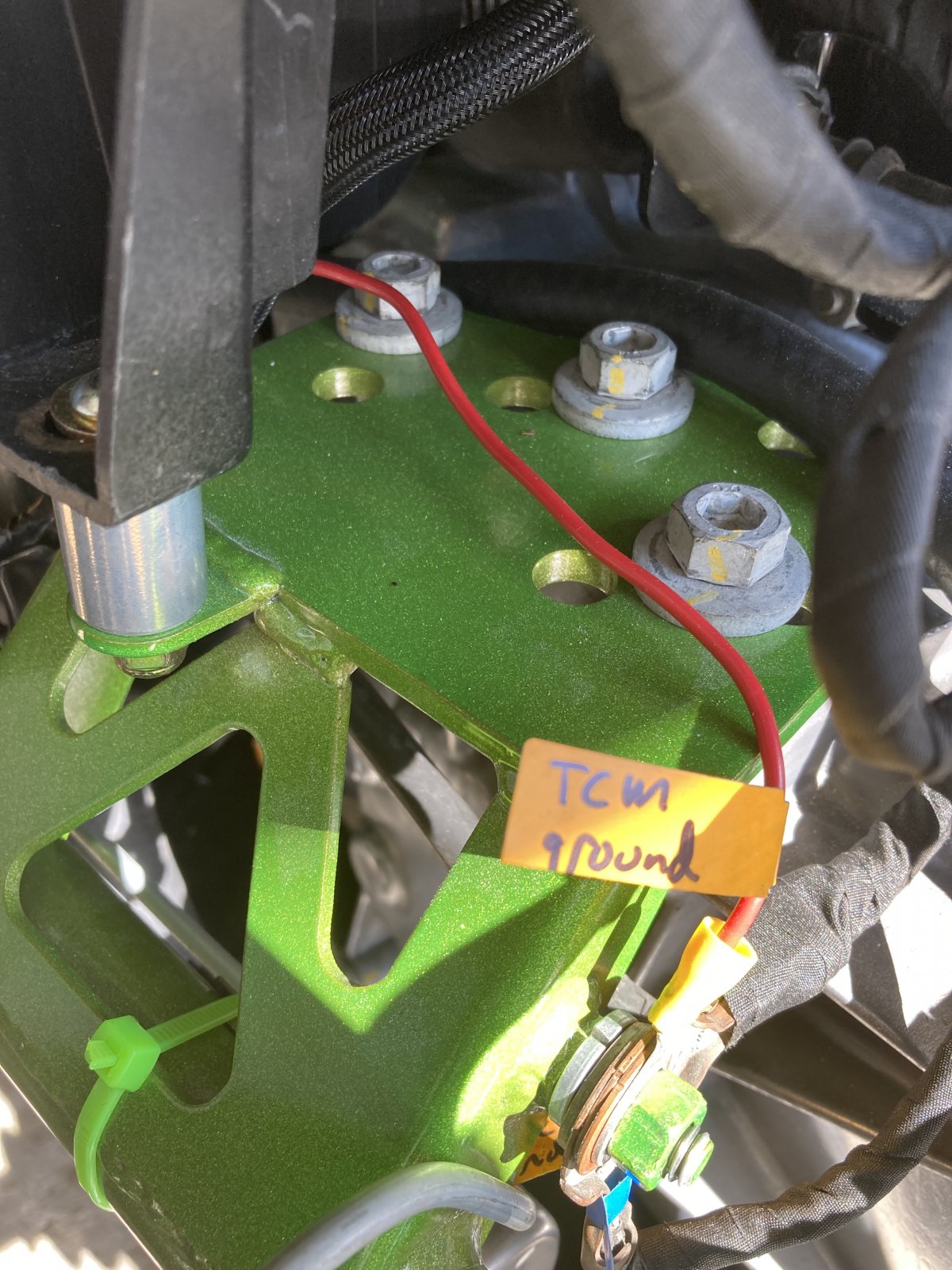

Those look right to me. I used grey bolts from somewhere I can't remember as I sold the rear seat crossbar and fasteners which I think is the source of the black ones. Either way, the spacers go between the transmission and the Goblin chassis. What I did was thread in the bolts on each side to ensure that there was enough thread engagement and did not bottom out in the castings. Both bad ideas to have.

Short bolt passenger side

long bolt driver side with spacer under green flange.

Joe



[Jareth]

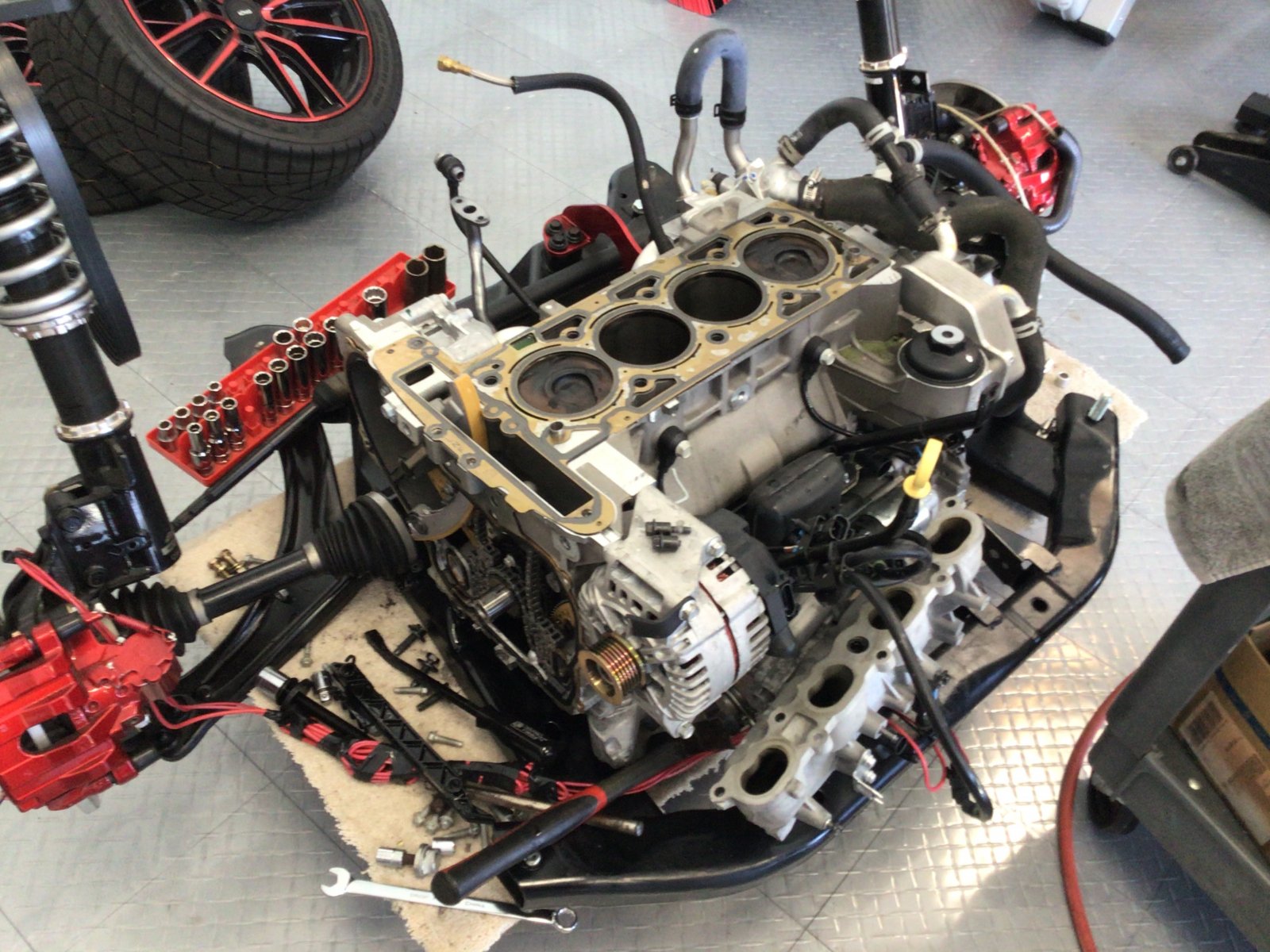

Here is a video of the engine installed, should have recorded the whole process but was just checking what hardware did not bottom out and next thing I knew I was putting in all the bolts.

.



[Waterdriver]

Those of you that have added hitches to your Goblin, how are you mounting the chains from the trailer?

.

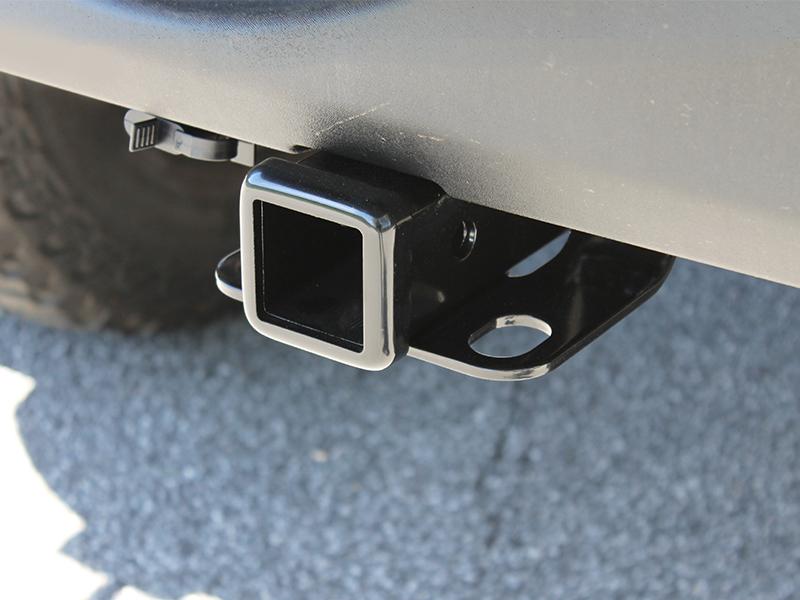

You could use this as an option.

Google Search



[Jareth]

When I look at the specs of that hitch it says for “off road only”, so I guses I can not risk using it.

.



[Jareth]

Removed this when I painted the engine and I masked off the mounting surface so well that I can not find where on the engine it mounted to?

What portion of engine should I look?



[Zoom Zoom]

Removed this when I painted the engine and I masked off the mounting surface so well that I can not find where on the engine it mounted to?

What portion of engine should I look?

I suspect it is a block temperature sensor?

If looking from front of Goblin dose it mount to a boss just to the left oil check tube?

Removed this when I painted the engine and I masked off the mounting surface so well that I can not find where on the engine it mounted to?

What portion of engine should I look?

I suspect it is a block temperature sensor?

I think it’s called a knock sensor



[Desert Sasqwatch]

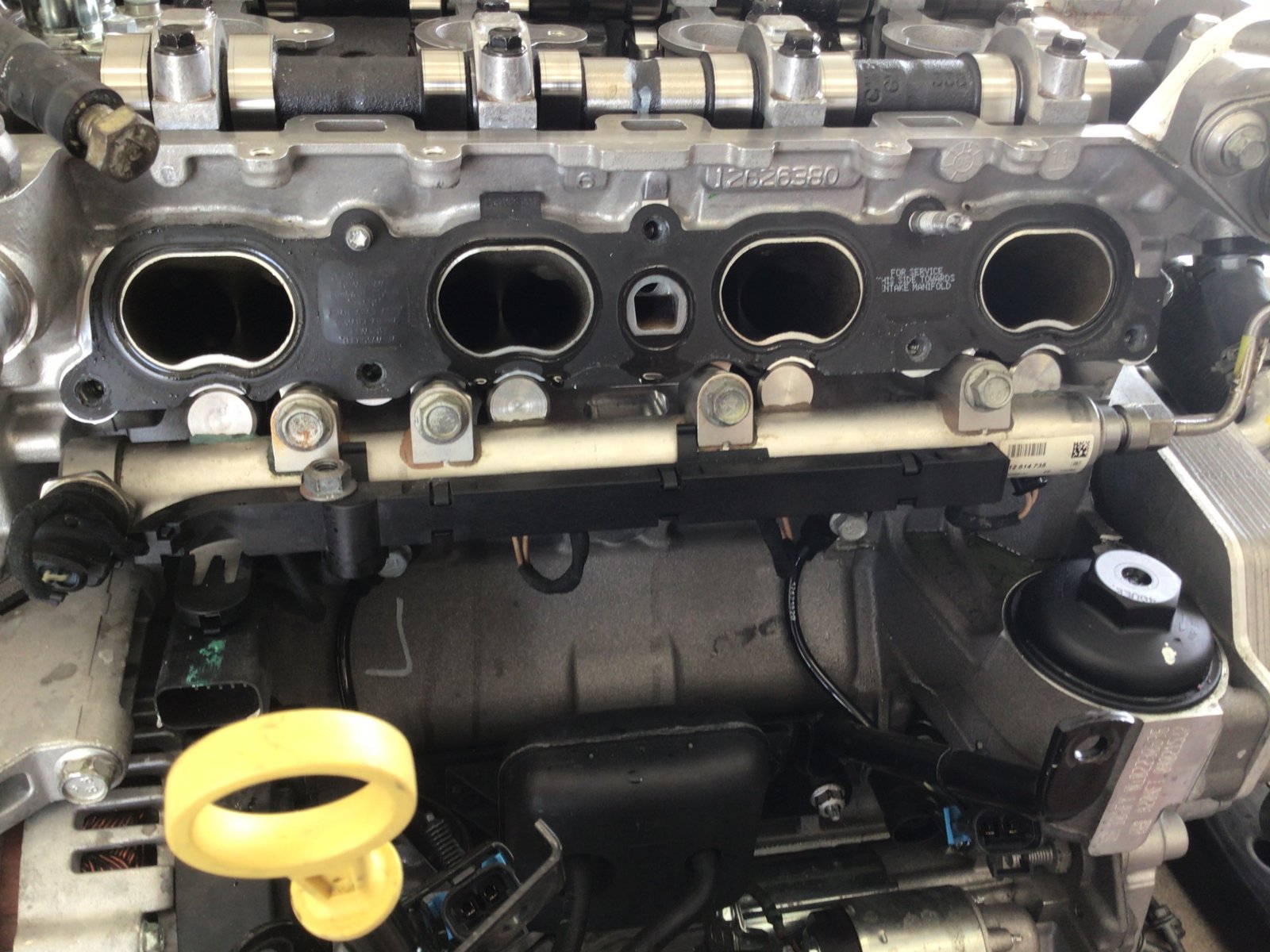

Looks like knock sensor. There are 2 of these mounted under the intake manifold on the front of the engine block - one between cylinders 1& 2, the other between cylinders 3 & 4.



[Jareth]

Thanks to the both of you

Seems to be only one on mine, or did I misplaced one. 2010 LS.



[Jareth]

And this location is Crankshaft Sensor connector?



[Desert Sasqwatch]

All Ecotecs use 2 knock sensors. You will need to locate the other one. Did you label the engine harness? These have specific connections so the computer knows which sensor - and which 2 cylinders - a knock is being sensed. Don't think the computer will like them switched, but believe the engine will still operate.

For the photo, if that's the back corner of the head above the transmission, it's a camshaft sensor.



[Gtstorey]

The LNF also has a particular rotation of the knock sensor that helps decrease phantom knock. Don't know if it matters on the LS.
LNF False Knock- Discovery might lead to cure??? (hptuners.com)



[Jareth]

The LNF also has a particular rotation of the knock sensor that helps decrease phantom knock. Don't know if it matters on the LS.
LNF False Knock- Discovery might lead to cure??? (hptuners.com)

I’ll have to look thru some earlire photos I’ve taken an check if I captured it’s position?

.



[Jareth]

All Ecotecs use 2 knock sensors. You will need to locate the other one. Did you label the engine harness? These have specific connections so the computer knows which sensor - and which 2 cylinders - a knock is being sensed. Don't think the computer will like them switched, but believe the engine will still operate.

For the photo, if that's the back corner of the head above the transmission, it's a camshaft sensor.

i found a replacement on Amazon for $15

https://www.amazon.com/gp/product/B009LDROPG/ref=ox_sc_act_title_2?smid=ATVPDKIKX0DER&psc=1

.



[Gtstorey]

At some point they were installed in random directions from the factory. I don't know if there is a point that the factory started setting a particular position on the original motors. It probably doesn't matter on the LS anyway, unless you start adding boost and playing with ign timing.



[Jareth]

Checked every connector on the harness and there is only one that matches knock sensor connector. (All connectors are labeled)



[Gtstorey]

I'll check the 2010 service manual this evening and see if it shows fewer knock sensors for the LS.
