V1 Power Steering wire cut.

[MR.812]

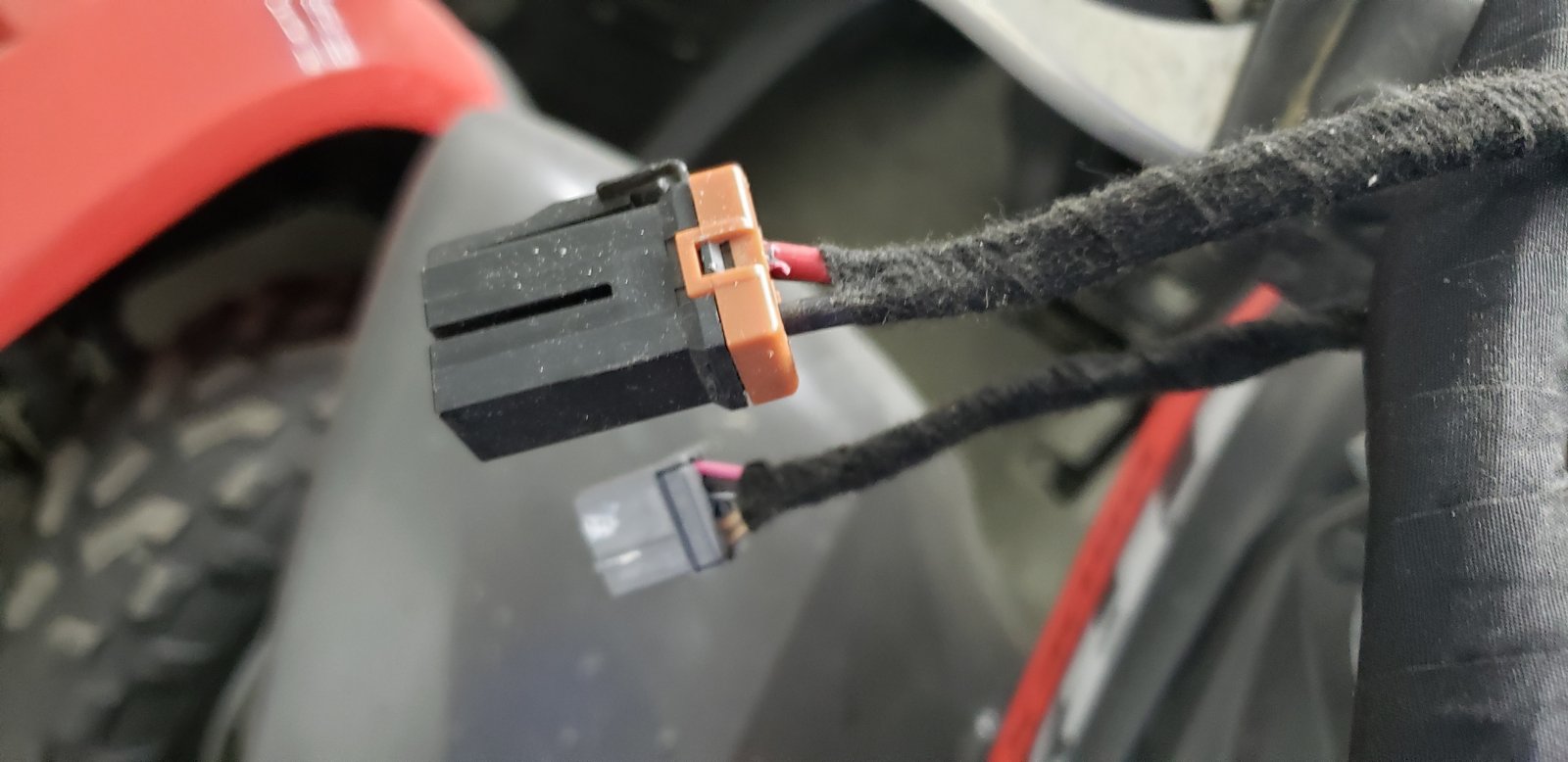

By mistake I cut the power steering plug off the harness and removed the wires. where did the what wires connect to?



[Rttoys]

I think they all go to the bcm, but someone will have to confirm and add a wiring schematic.



[MR.812]

Thanks



[Rttoys]

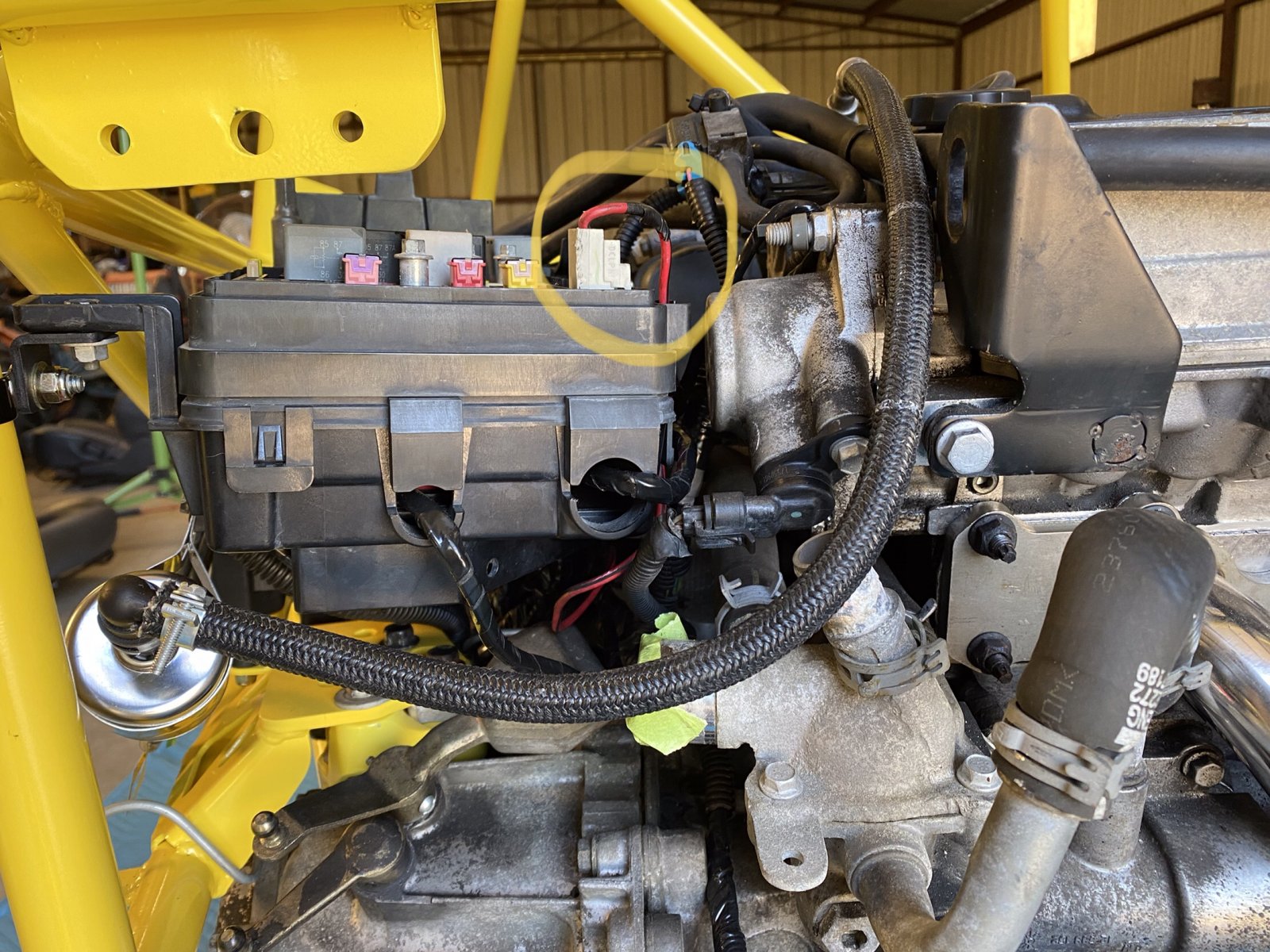

Actually, one big red wire goes to the under hood fuse box. It’s that goofy connection on top



[Towerdog]

Actually, one big red wire goes to the under hood fuse box. It’s that goofy connection on top

Thats the other PS plug.



[Ross]

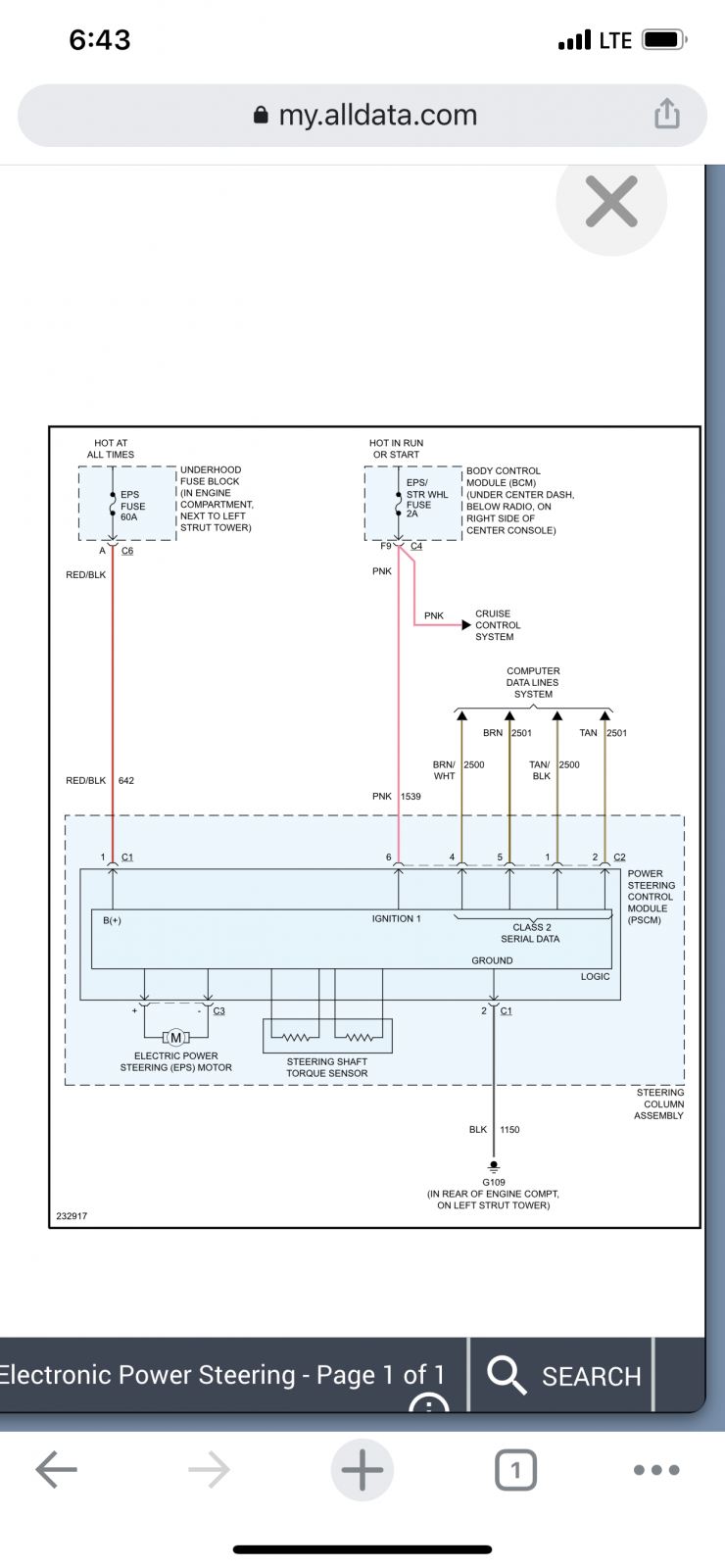

What donor car did you use? If it is the same as my donor, you can find it in AllDataDIY here.



[MR.812]

06 ss supercharged



[Rttoys]

Thats the other PS plug.

Ah. Good call. Red wire is much bigger.



[MJP61]

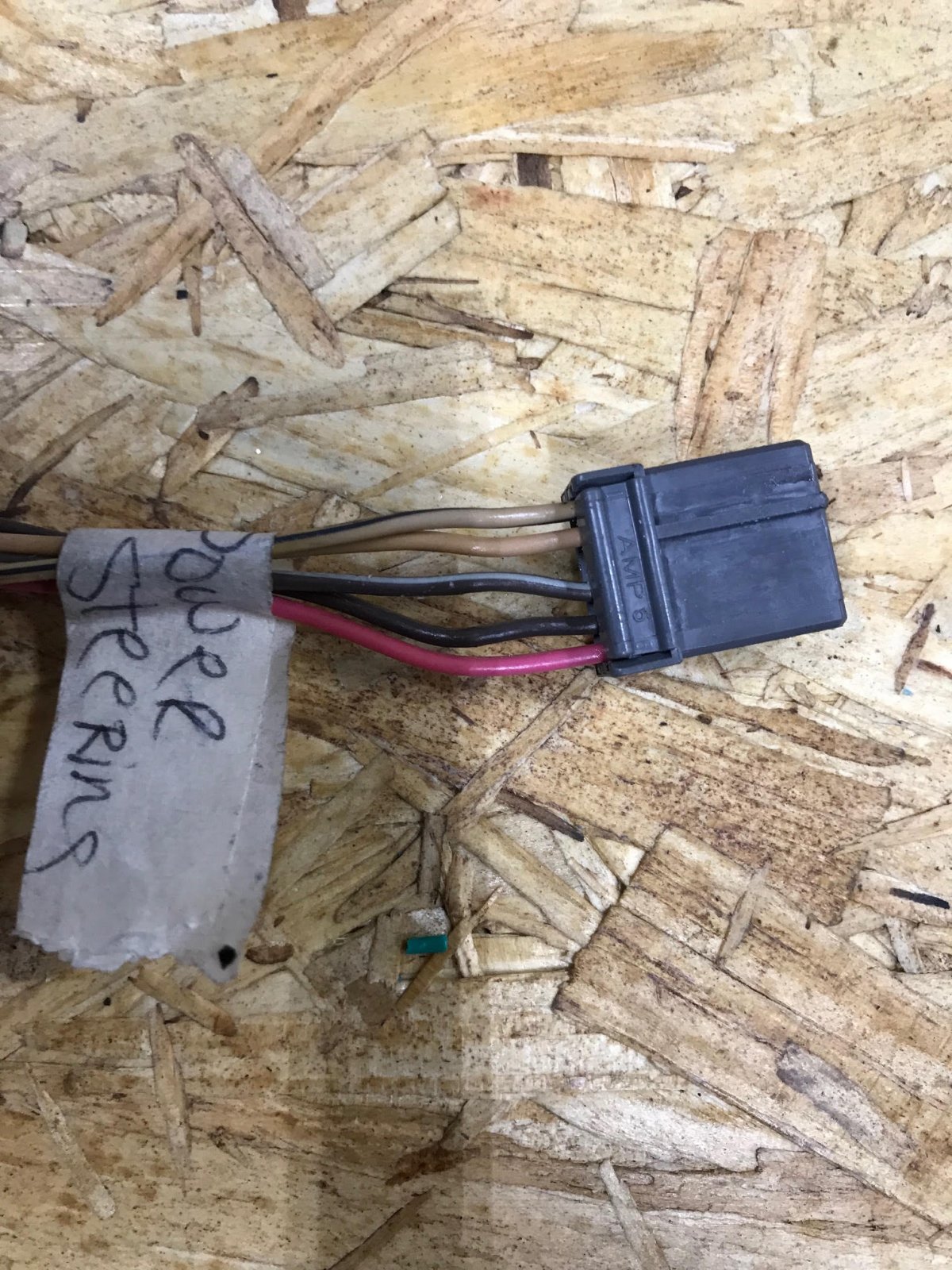

Hope this helps.
