V1 Rear Brake Caliper Install

[Adam in CLE]

Hi All,

Trying to get the rear brakes installed and could use some pictures for an 09 TC car in many angles. Also could use help on which bolts to use. There are 8 in the kit with 4 washers but not sure where everything goes. I have scoured the forum and google and still don't have what I am looking for to get started. The aluminum bracket isn't sitting flush on the knuckle either. I hate puzzles and this is becoming one. Thanks for the help in advance.



[Adam in CLE]

So I think I have it figured out at least for the caliper install. Does anyone have any torque specs.



[comegetjoe]

Dragon Motorsports 1.0 [Extended\Full-Cage\Double Door Bars] - [Frame #290] - SOLD

The engine prep videos show that you pull the MAF wiring out of the bundle to allow you to route it as needed. I plumbed up my intake as shown and in this position, I think the stock wiring would have been enough, but I did not need an extension. Joe

dfkitcar.com

Look here. Bookmark it for later.



[Robinjo]

Look here. Bookmark it for later.

I looked through the photos and didn’t see the rear brakes at all. I’m curious on this topic as other than getting the engine going, this is my only item I do not fully understand.



[Adam in CLE]

@Robinjo he was referring to the torque specs I was asking for. What questions on the brakes to you have?

Thx comegetjoe. I have that thread but didn't see the spec needed. See picture and let me know if I missed it.



[Robinjo]

Ah, ok. I was looking for photos as that was the OP. Just lots of photos of the rear brakes, from different angles would be great.



[Adam in CLE]

Ok. When I have it done I will send some through the process. When I have time I will also send some I've found on the forum.



[Sluggonaut]

@Robinjo he was referring to the torque specs I was asking for. What questions on the brakes to you have?

Thx comegetjoe. I have that thread but didn't see the spec needed. See picture and let me know if I missed it.



[Adam in CLE]

Thanks. That seemed high to me based on the aluminum knuckle and aluminum spacer that DF provides. I am leary as I don't want to crack the knuckle.



[k.rollin]

@Robinjo he was referring to the torque specs I was asking for. What questions on the brakes to you have?

Thx comegetjoe. I have that thread but didn't see the spec needed. See picture and let me know if I missed it.

If you're having interference between the brake rotor and the caliper bracket, place a washer between the knuckle and the mounting adapter for the capliper bracket. I've seen this issue come up for a lot of folks who threw out the backing plates that go between the wheel hub and the knuckle when stripping the donor.



[Jareth]

When installing the calipers make sure they are on the correct side of the car, the bleeder valve needs to be at the top of the caliper when correctly installed, ask me how know air does not like to travel downward.



[Adam in CLE]

If you're having interference between the brake rotor and the caliper bracket, place a washer between the knuckle and the mounting adapter for the capliper bracket. I've seen this issue come up for a lot of folks who threw out the backing plates that go between the wheel hub and the knuckle when stripping the donor.

Thanks. Fortunately I am not having that issue but I haven't tightened everything down yet.



[Rauq]

If you're having interference between the brake rotor and the caliper bracket, place a washer between the knuckle and the mounting adapter for the capliper bracket. I've seen this issue come up for a lot of folks who threw out the backing plates that go between the wheel hub and the knuckle when stripping the donor.

I had to add a washer even with the backing plates.



[Sluggonaut]

Mine were fine until I tightened everything up. So I had to change my washer config - pics in my build log here.



[SmsDetroit]

If I didn’t see it I’m sorry. You really should start a build log. It will help us help you



[Adam in CLE]

Ah, ok. I was looking for photos as that was the OP. Just lots of photos of the rear brakes, from different angles would be great.

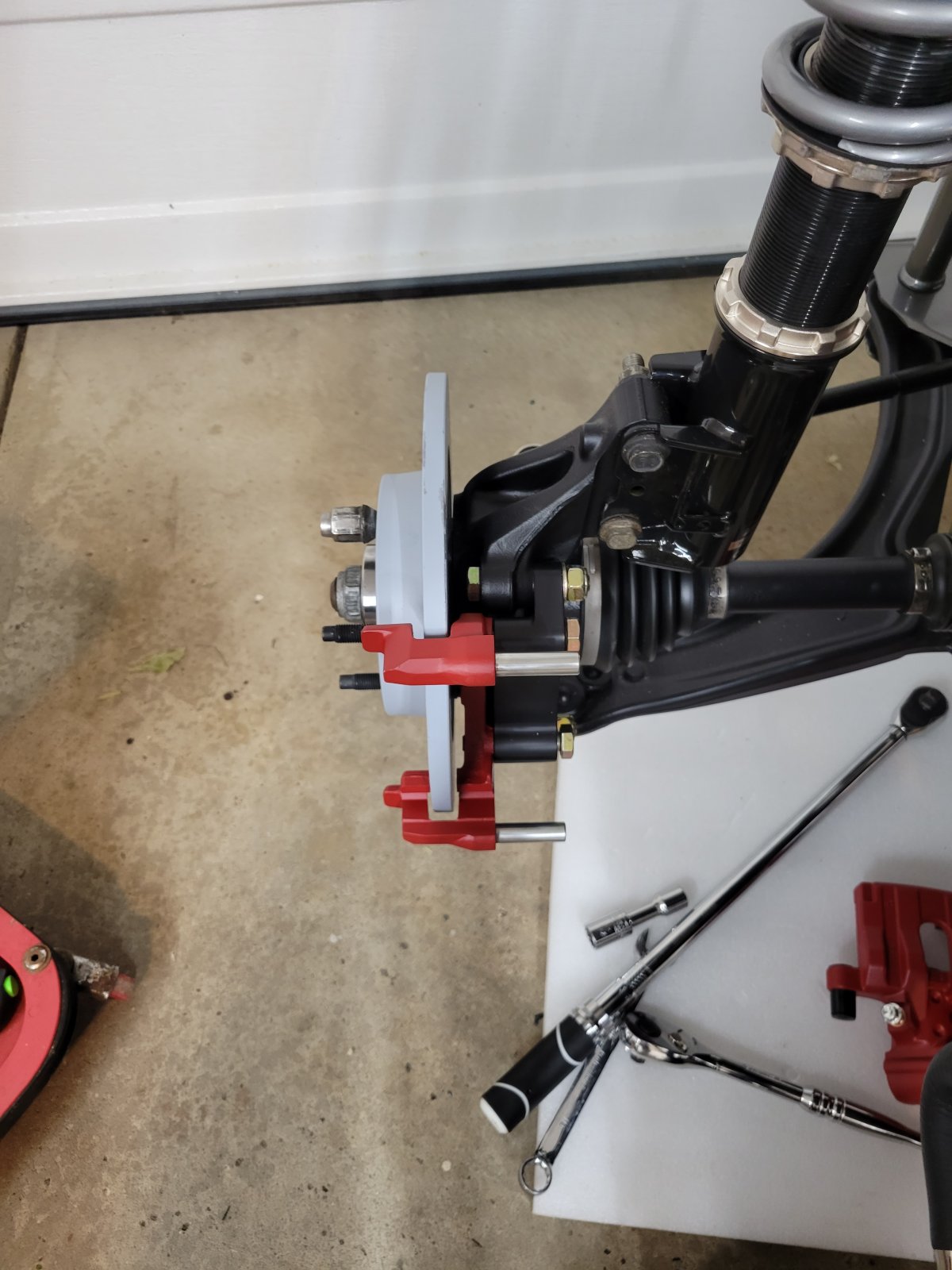

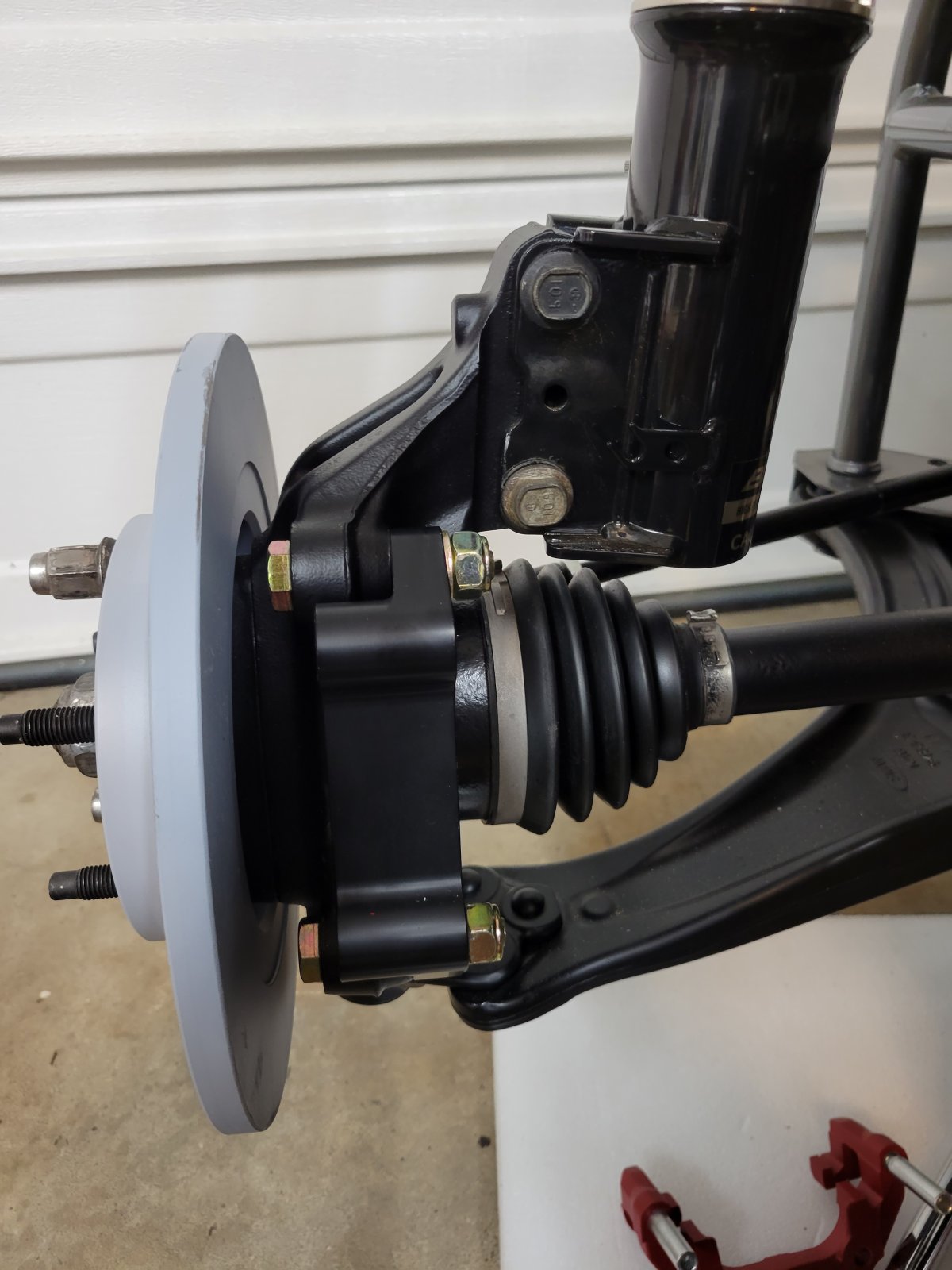

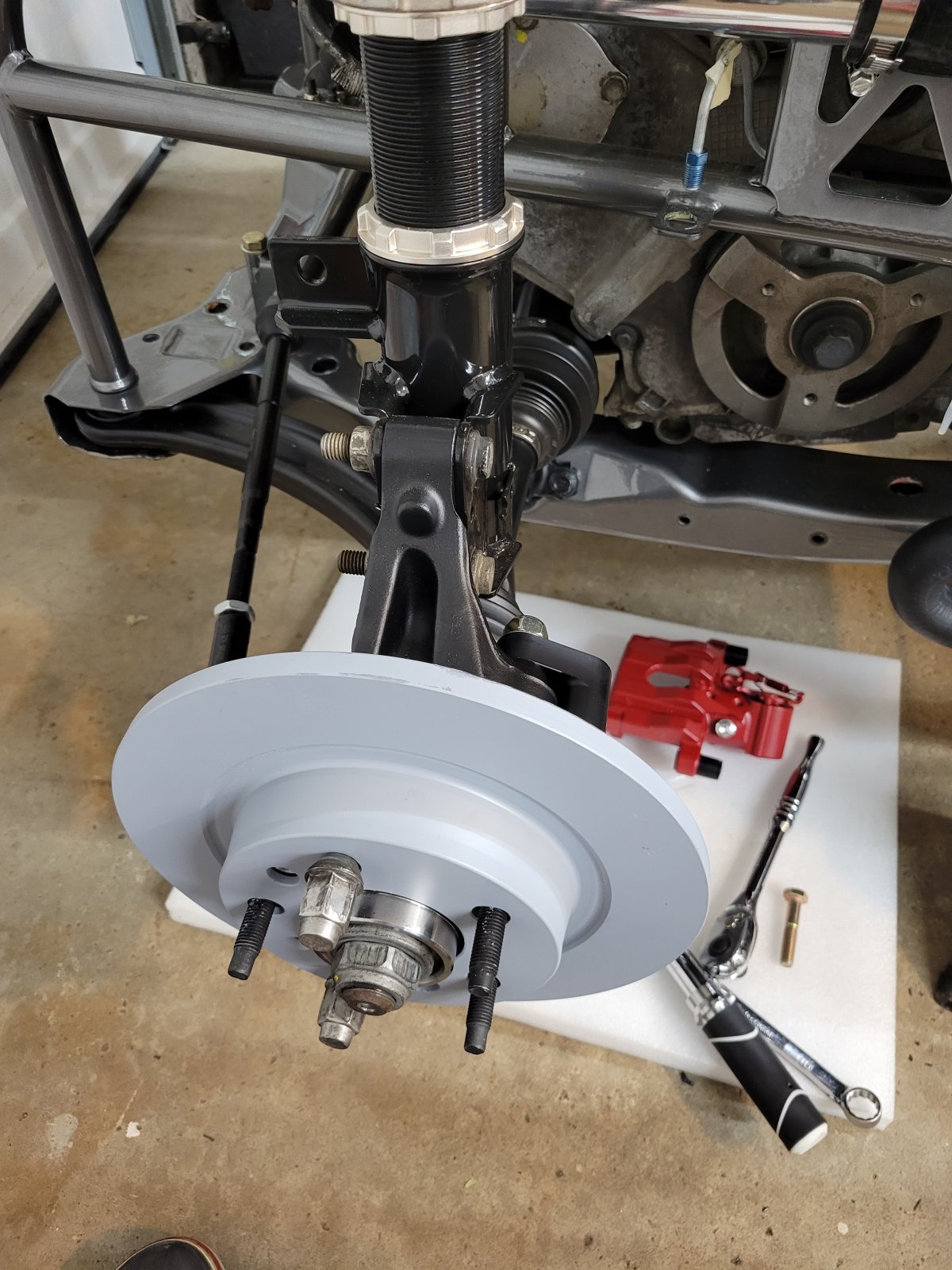

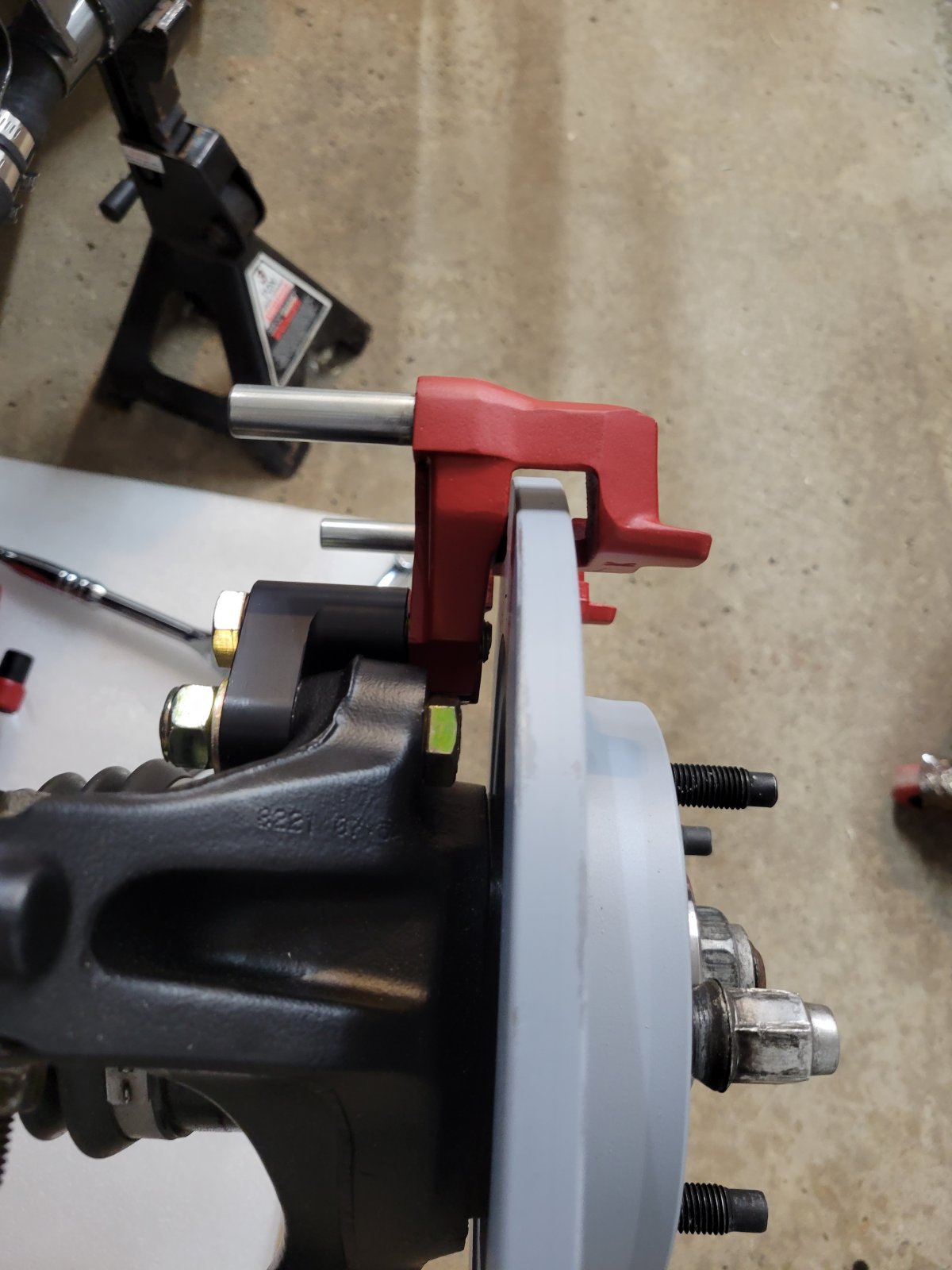

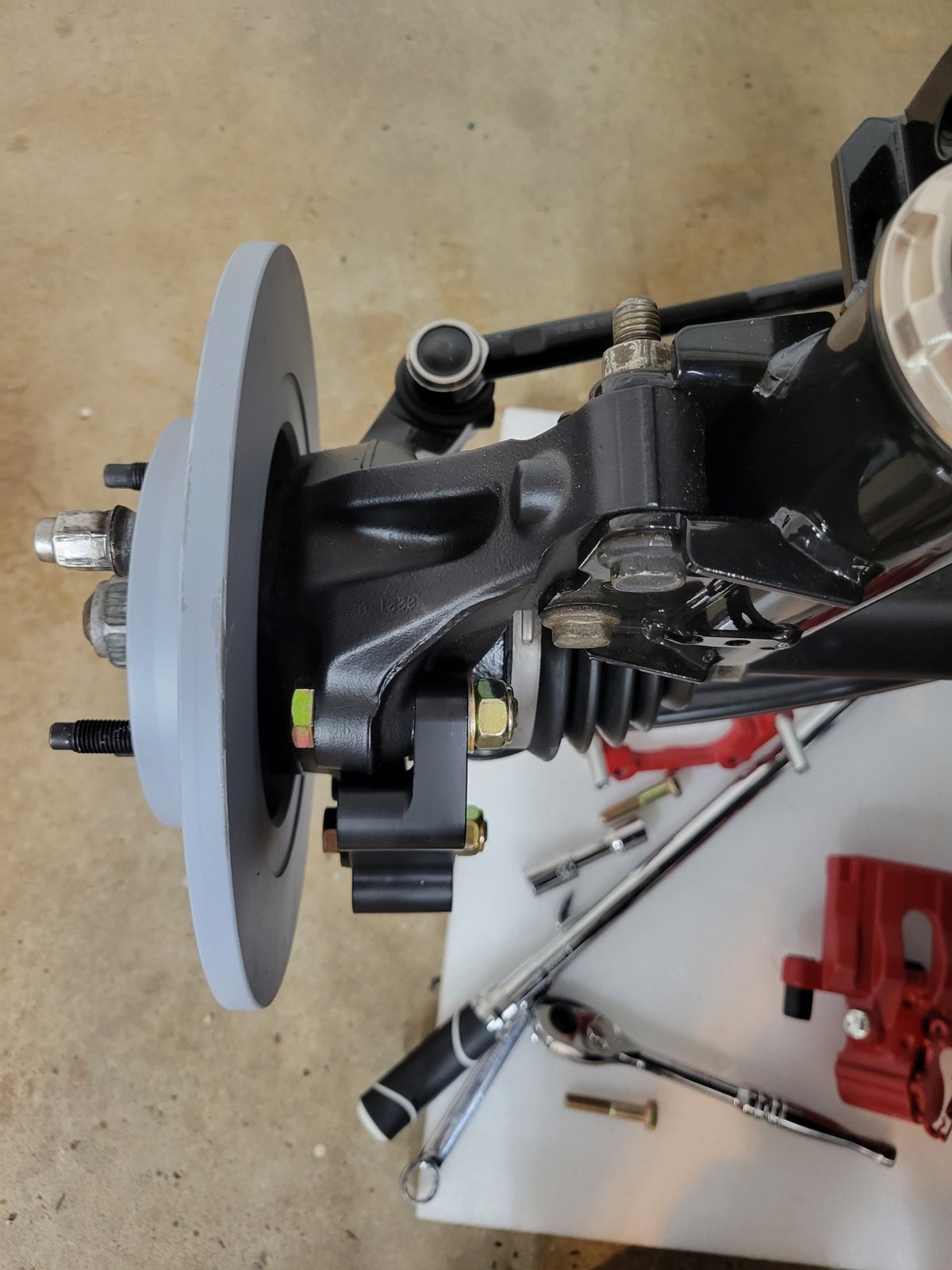

Pass rear brake. Let me know if there is something else you need but don't see.



[Robinjo]

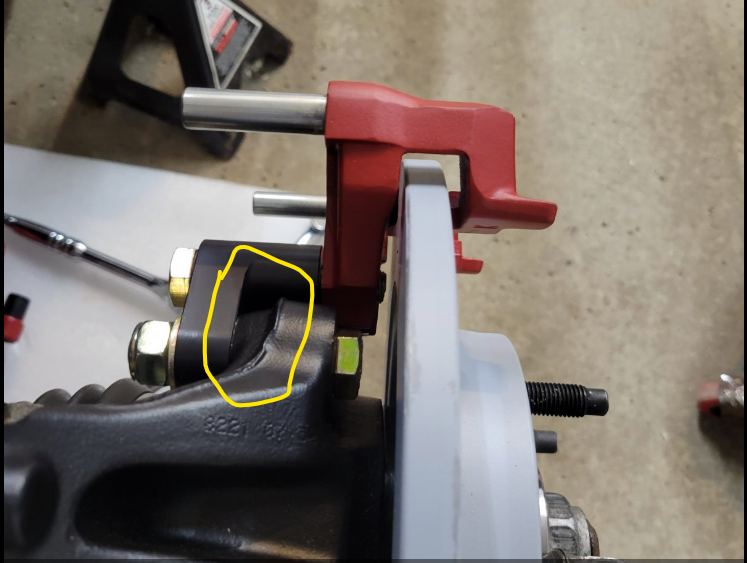

Excellent, thank you! Just one question, and it may just be because I haven't gotten this far yet. What is the thing between the black bracket and the Caliper bracket (red)? I highlighted it in yellow on my snippet.



[Gtstorey]

Excellent, thank you! Just one question, and it may just be because I haven't gotten this far yet. What is the thing between the black bracket and the Caliper bracket (red)? I highlighted it in yellow on my snippet.
View attachment 34765

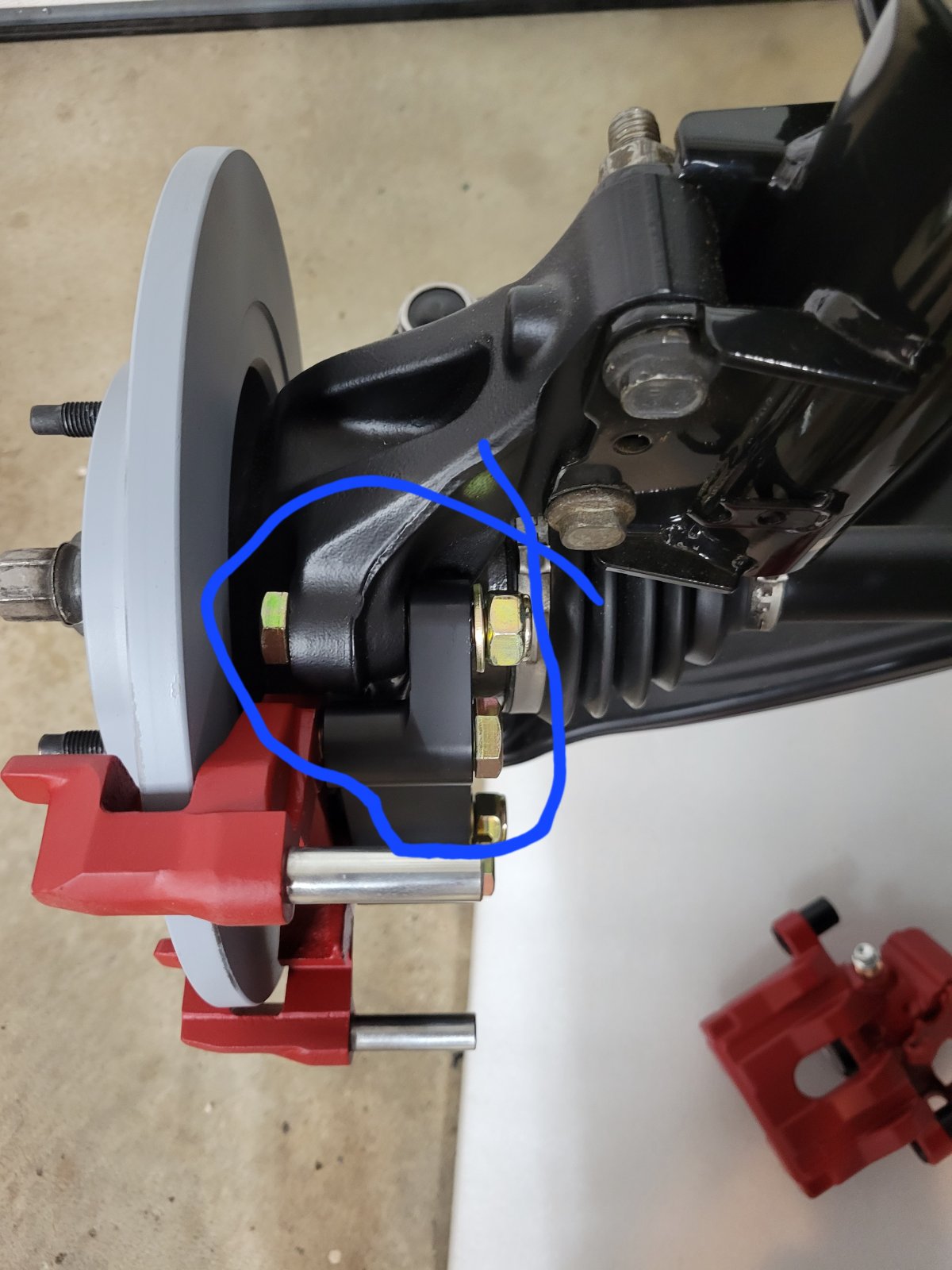

Looks like just the knuckle casting to me and possible a very thin shim to push the inner side of the caliper away from the disc. Look at his last picture with it circled in blue.



[Robinjo]

Looks like just the knuckle casting to me and possible a very thin shim to push the inner side of the caliper away from the disc. Look at his last picture with it circled in blue.

It could be, after looking closer at that photo it does just seem to be the knuckle.



[Adam in CLE]

Knuckle. No shim.
