V1 Tailight wiring help needed

[PHENDERSON]

I have the DF supplied taillights which have the 2 connectors, one with 2 wires and one with 3 wires. Does anyone have a diagram of how the 4 harness wires are connected to these? I looked but only found info on non-DF supplied lights. Thanks!



[Ross]

LED lights will only light up with the electricity the correct way. So if you take the wires to a 12V battery, and try different ways to wire it, it will either light up the LED or not, but won't cause a short. Play with the wires until you learn what wires are the reverse lights, running lights, and brake lights.



[r3drckt]

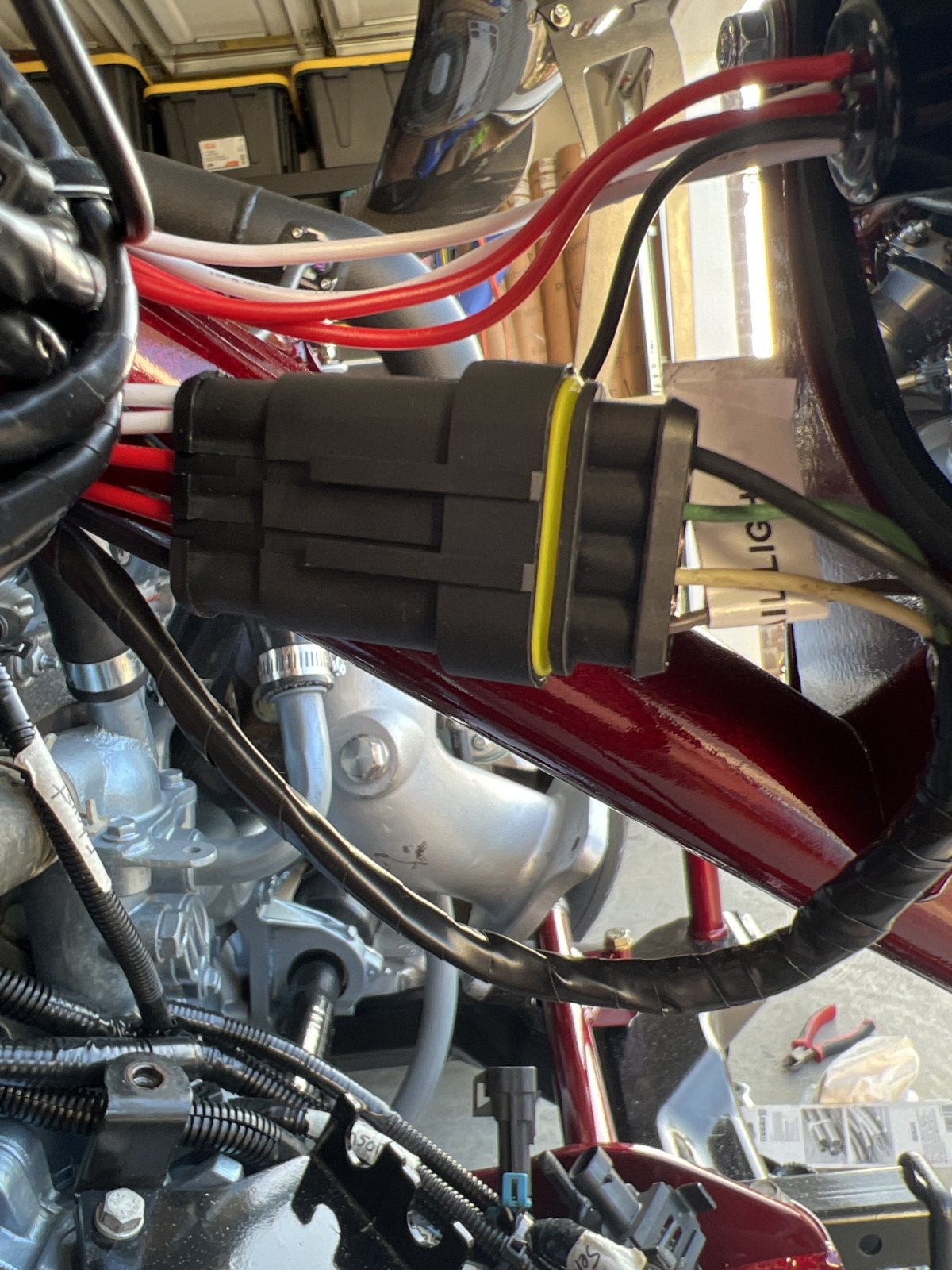

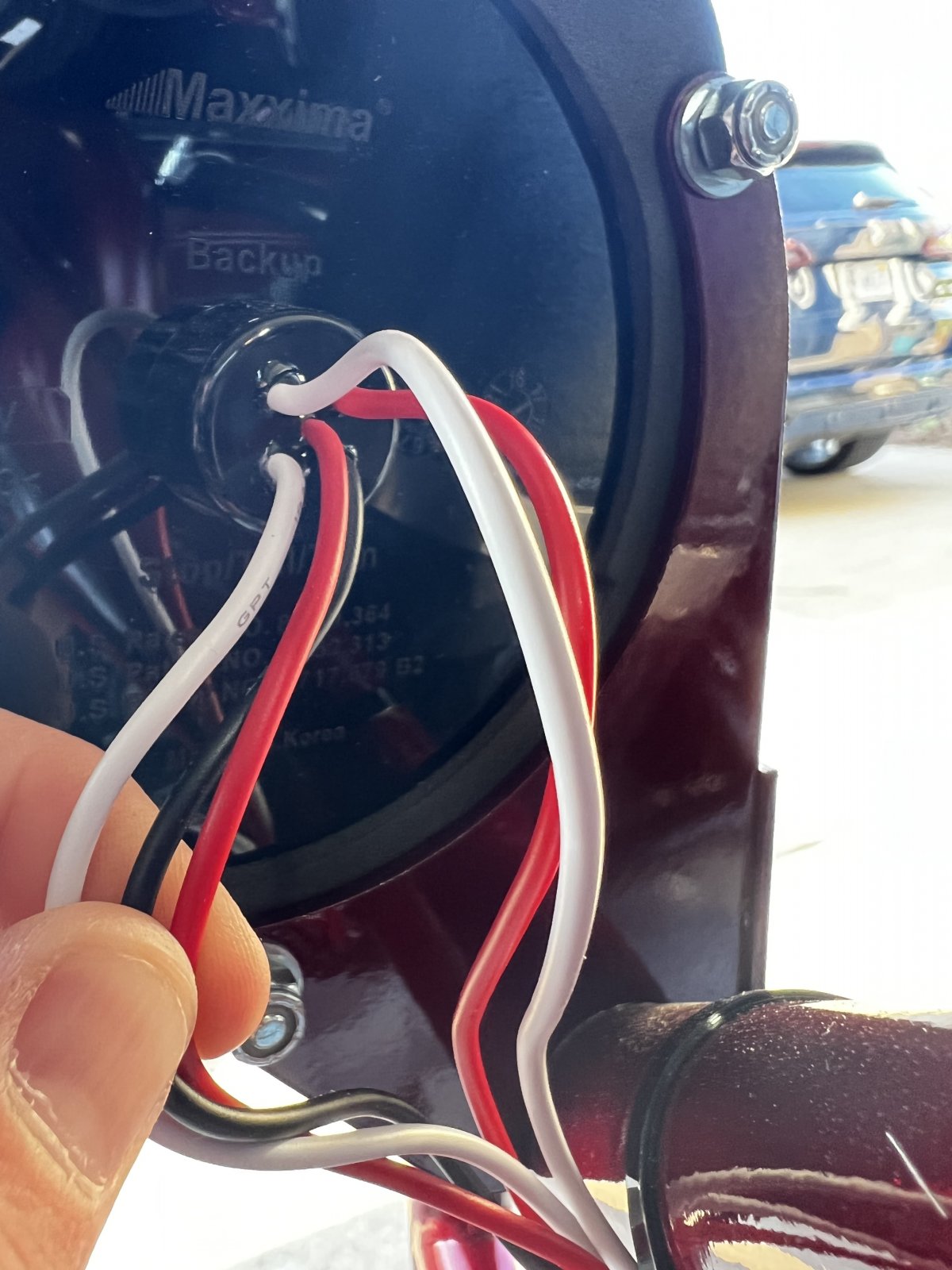

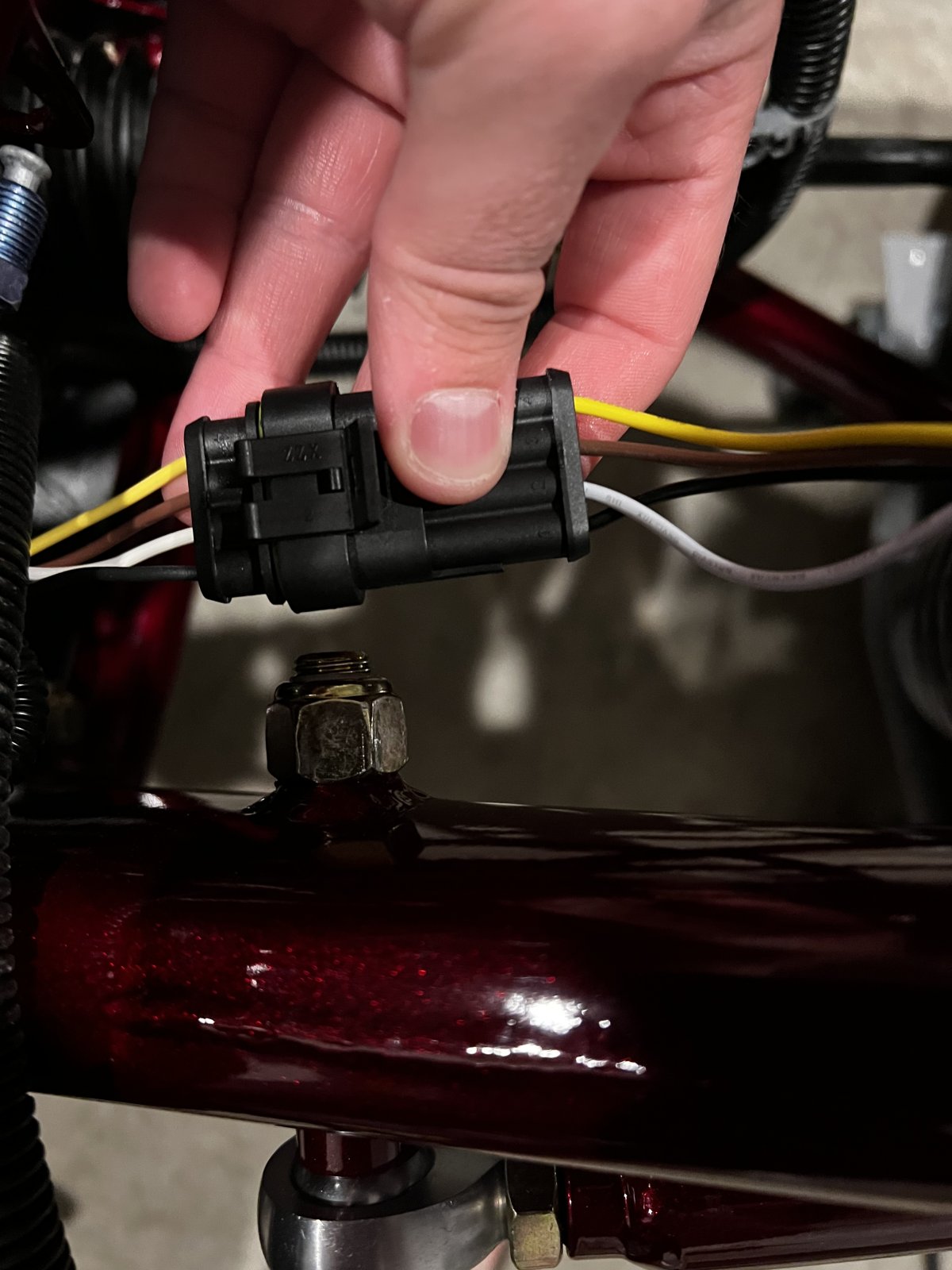

Passenger side:

bottom 3 wires, black and red in port 1 and 2 on my connector, port 3 is red for the top 2. Port 4 is the shared whites (grounds).



[r3drckt]

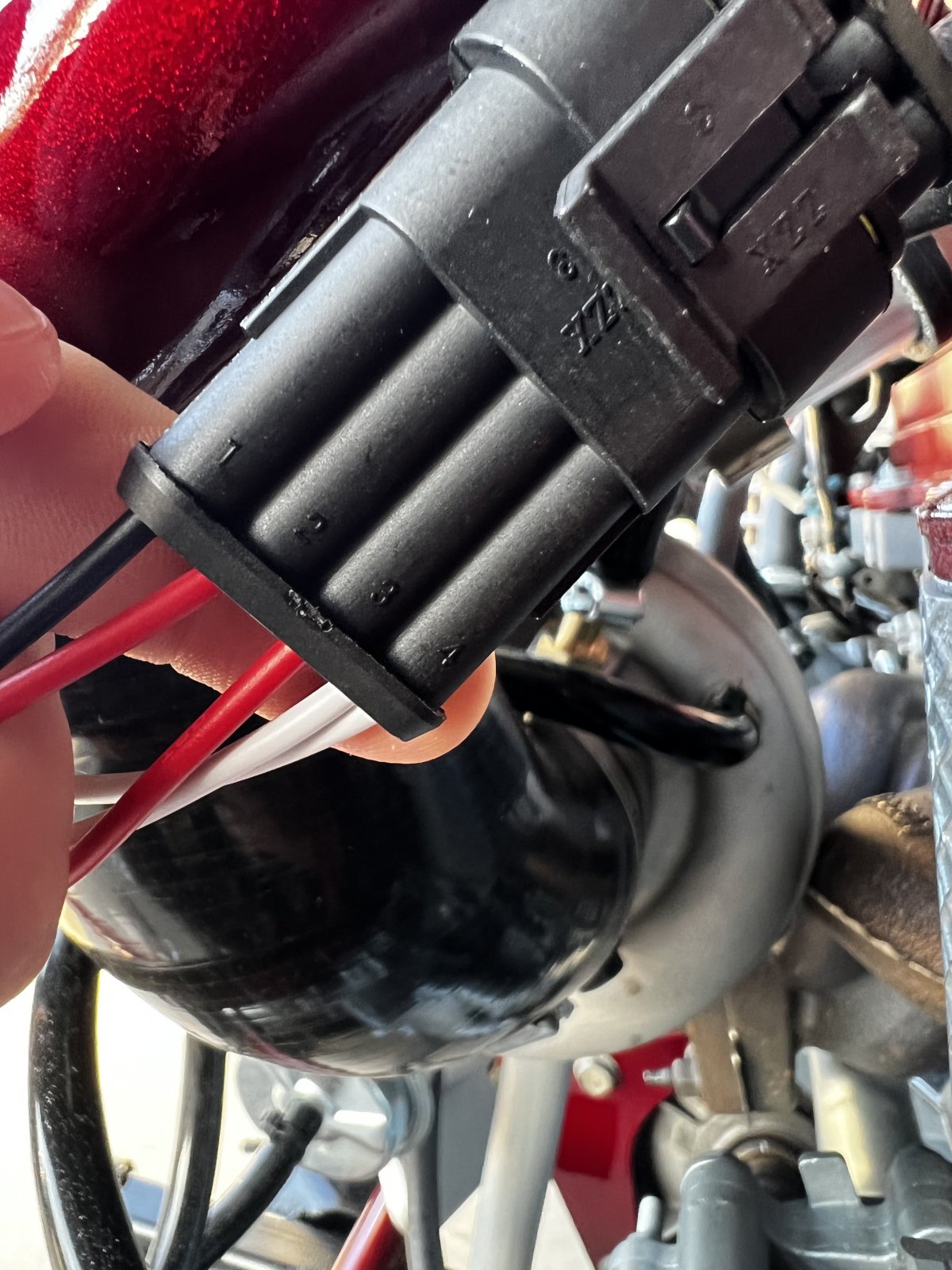

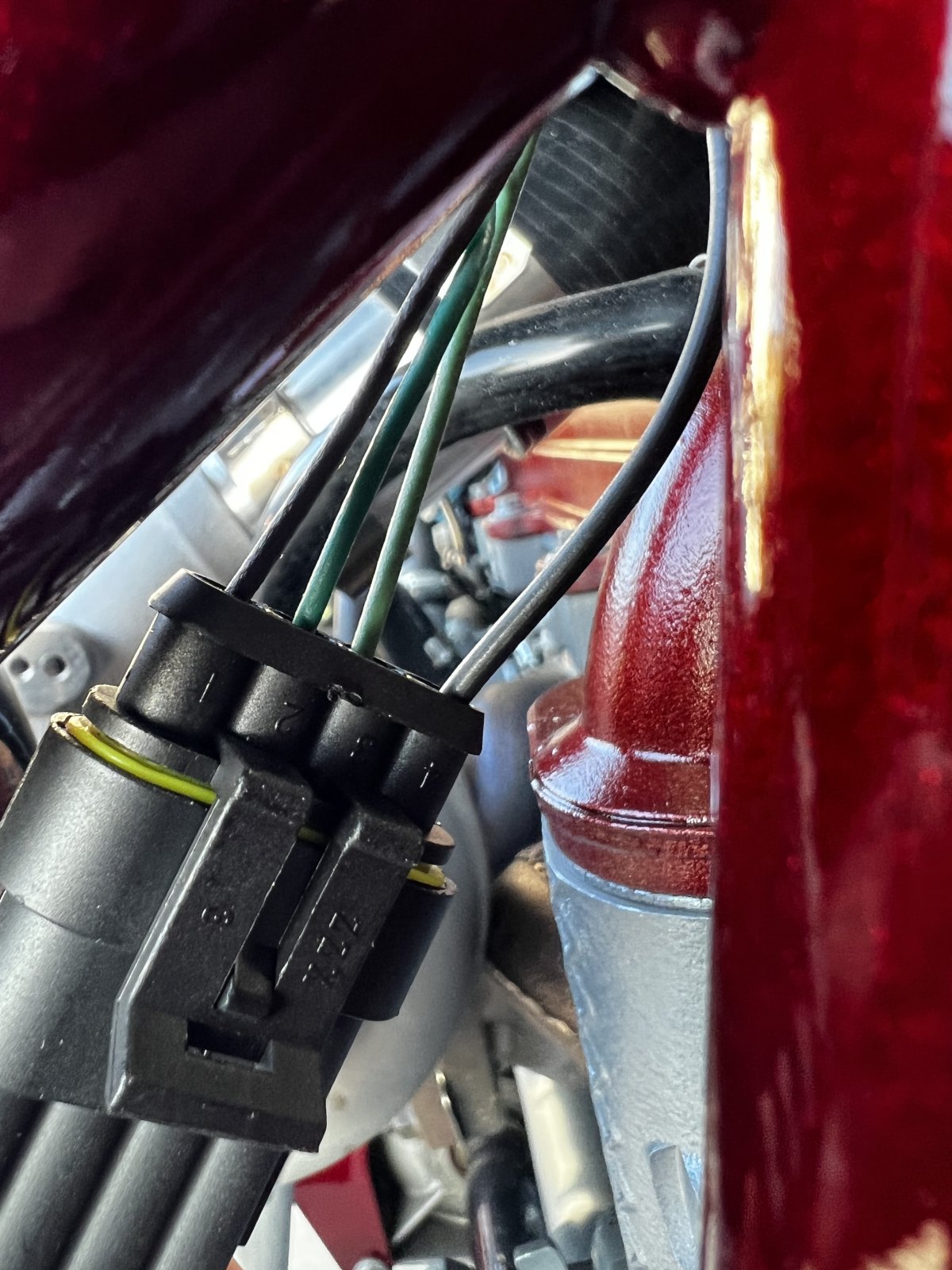

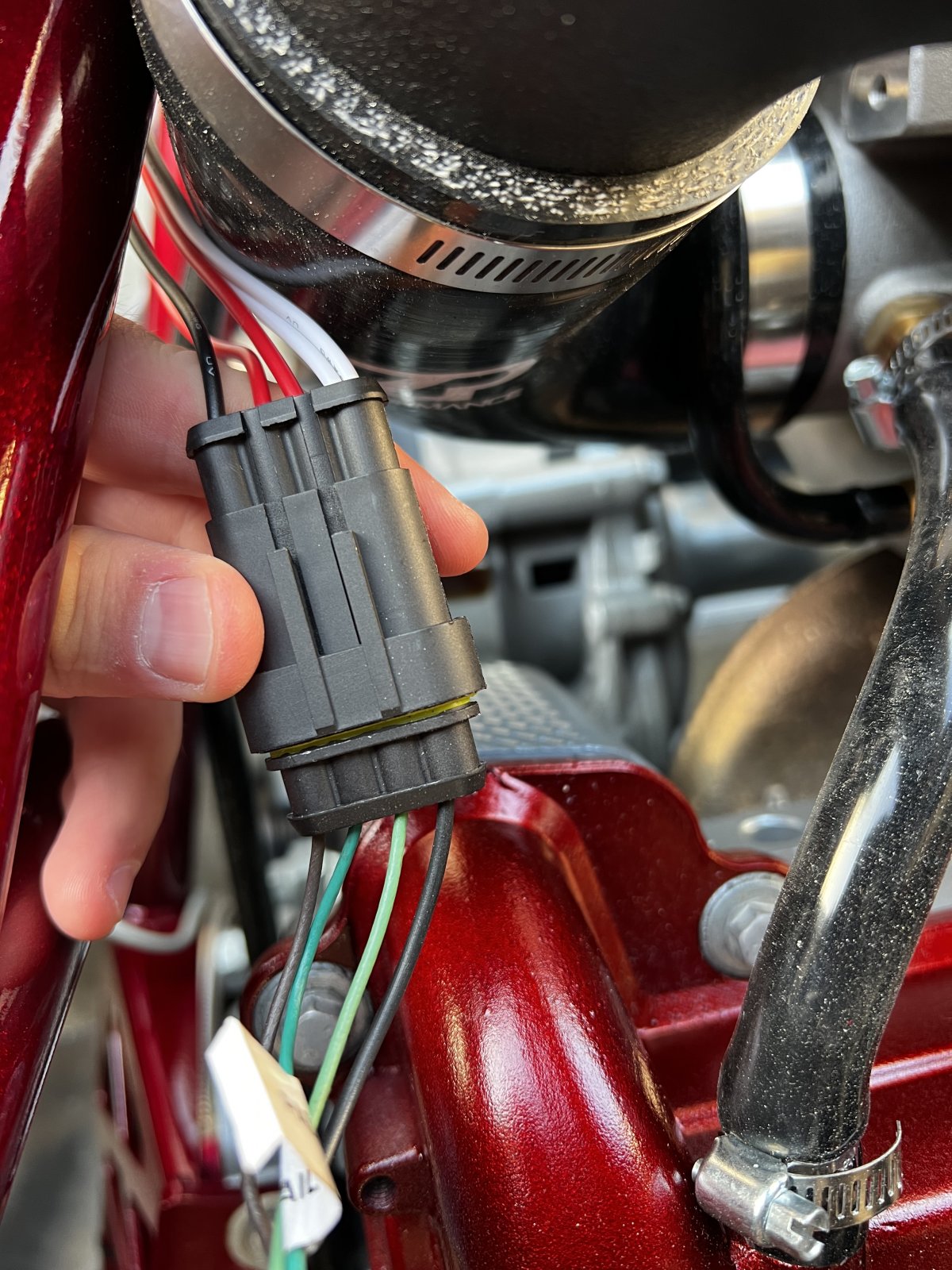

Driver side is wired the same way, port 1 and 2 is the lower section, port 3 is upper, port 4 is shared grounds:



[PHENDERSON]

R3drckt, thank you so much those pics and explanation is perfect. Say, do you have something similar for the side mirrors/blinkers?



[r3drckt]

Yes I do,

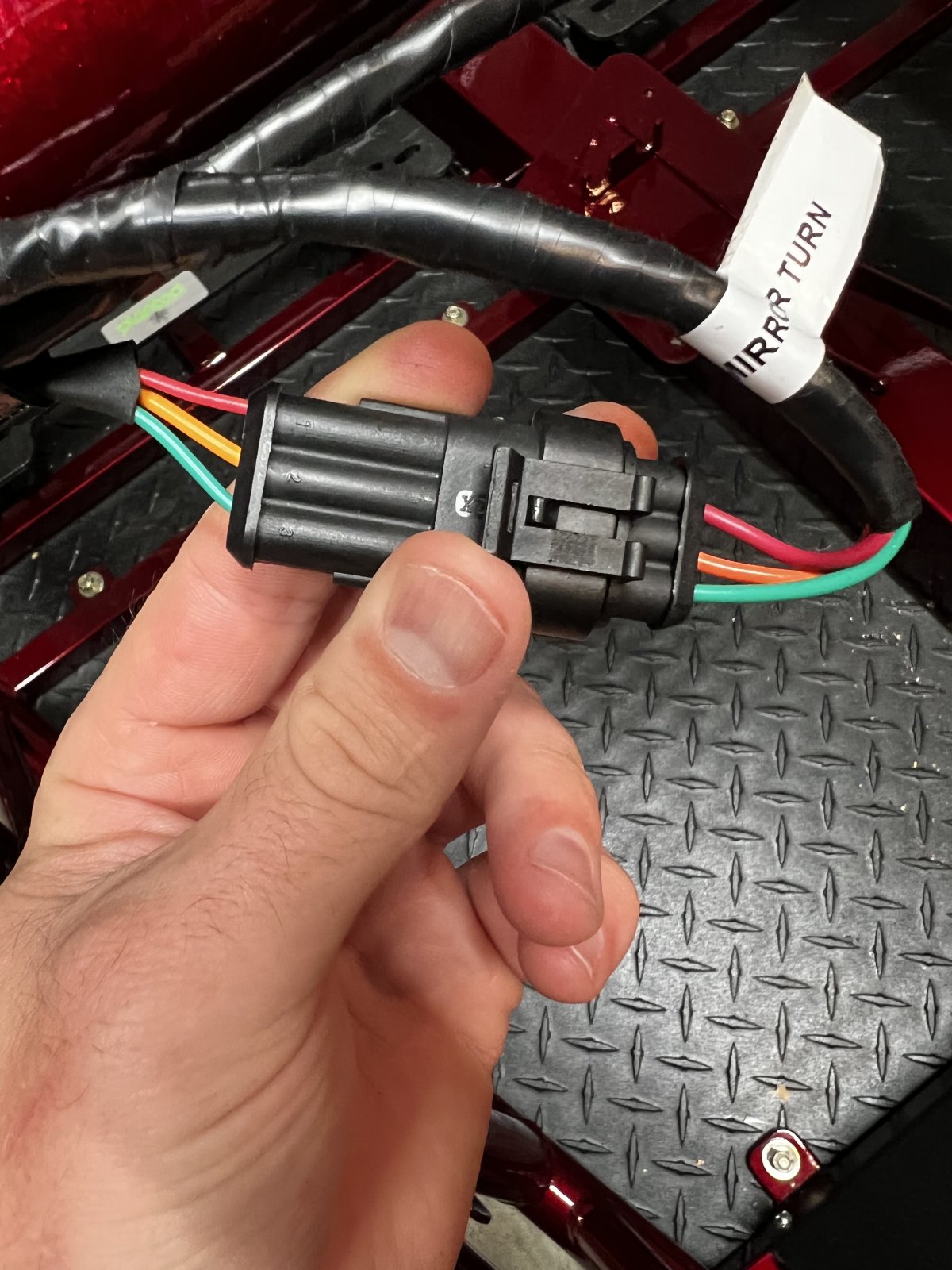

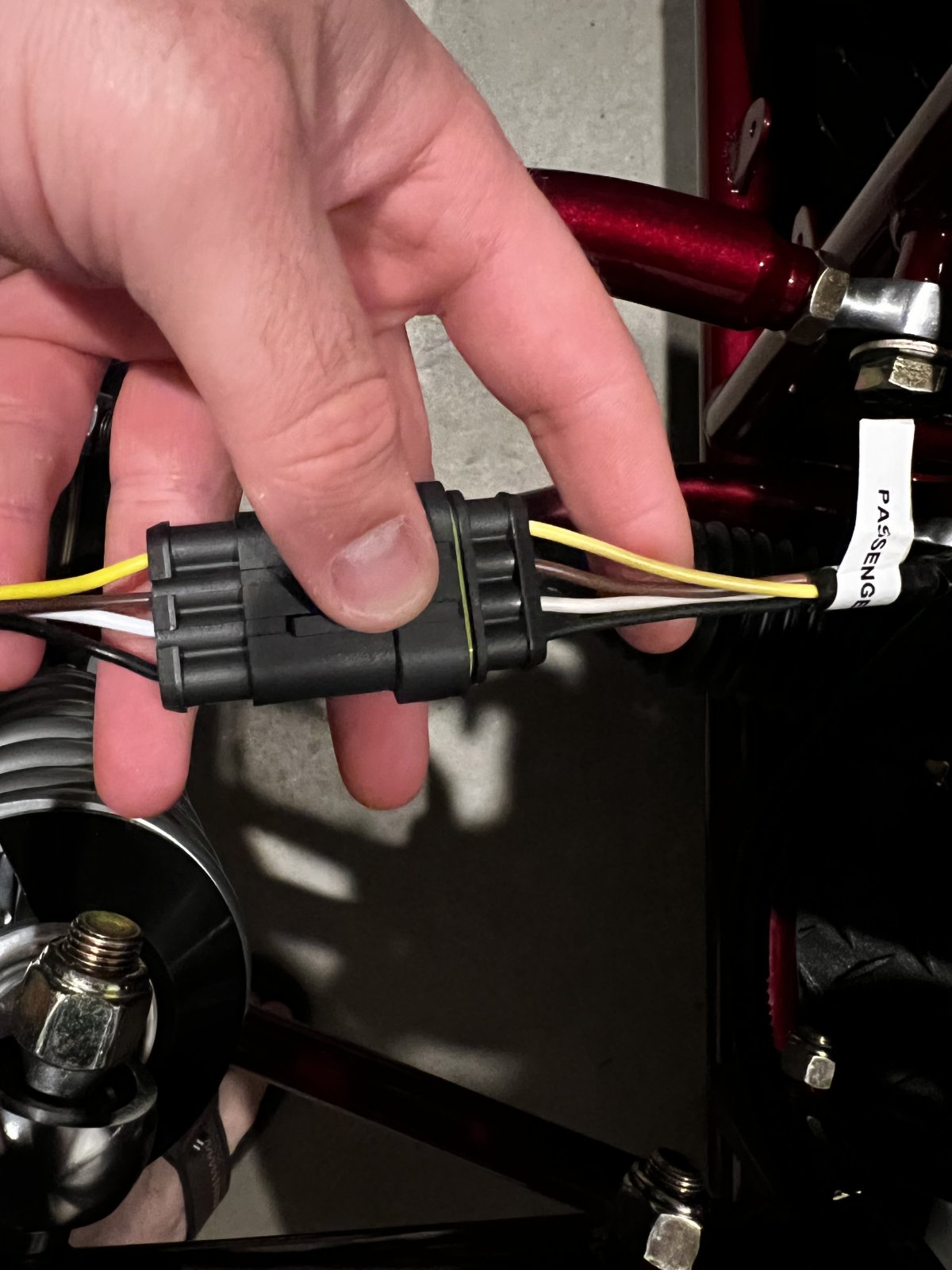

Passenger Side

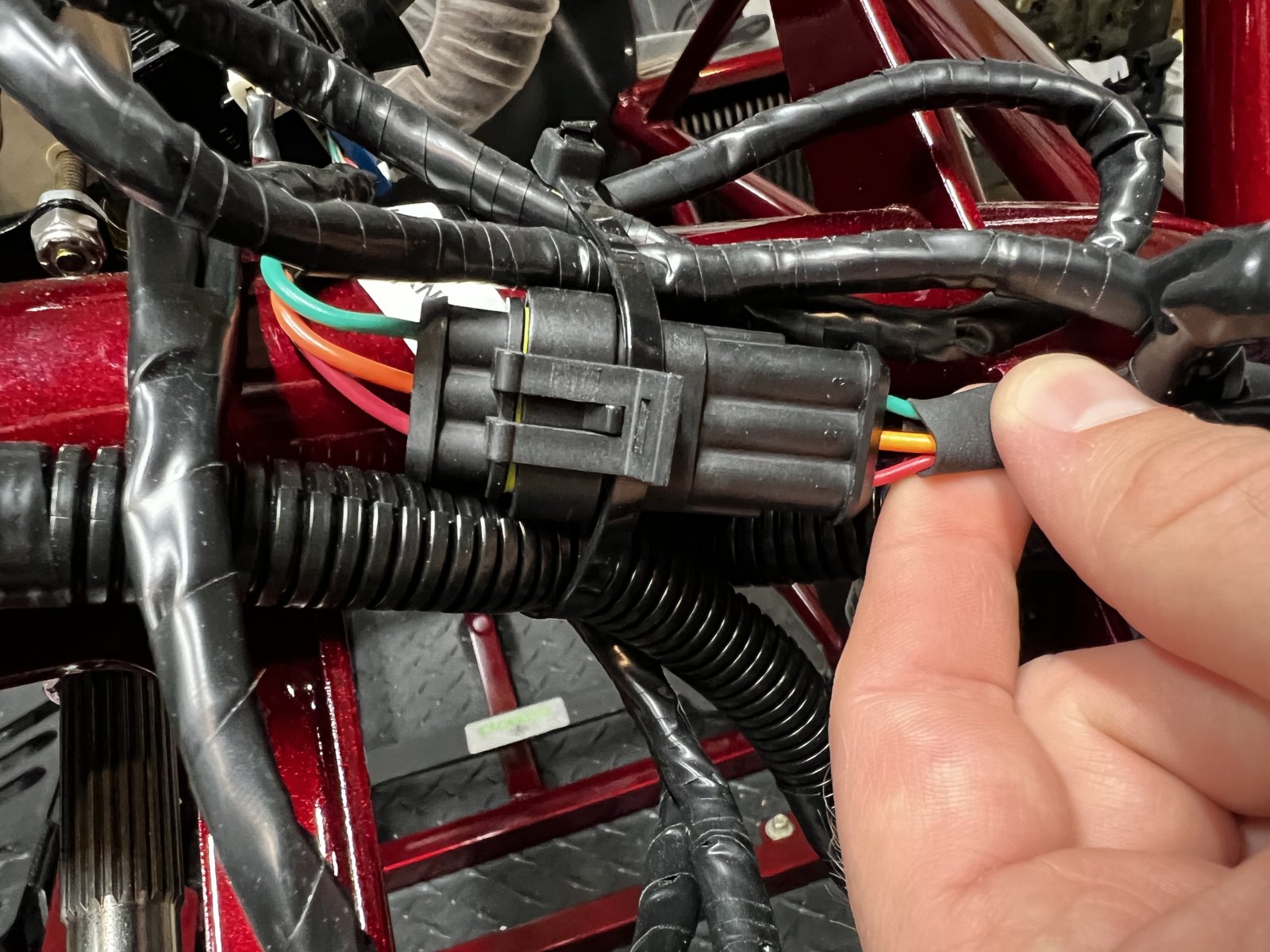

Driver side



[PHENDERSON]

That's a bit easier....



[PHENDERSON]

How about the headlights, I have 4 wires for each one.



[Ross]

Ground, low beam, high beam, daylight running light? Grab a 12V battery, and test them, you will figure it out.



[r3drckt]

My wires all matched up actually.



[PHENDERSON]

Thanks again r3drckt
