ZZP LSJ 8 pin to 6 pin throttle body wiring harness

[Fozda]

If you want to mic the openings I'll mic the 08 one I have and we can see if it's the same size.

It was hard to measure but the ID of the throttle body seemed to be just over 2.5"



[Desert Sasqwatch]

According to several forum discussions, outside of the Goblin forum, the LSJ has a 67.4mm diameter, not certainif this was referring to the throttleplate diameter tho.



[95Blitz]

Yeah looks like the 08 is also just over 2.5" at the inlet and has a small neck down before the blade. The LSJ has a bigger inlet just over 2.6" but has a much bigger neck down before the blade.



[DJE0199]

Its strange. Its not exactly pin to pin. There are some splits and whatnot. I'll do my best.

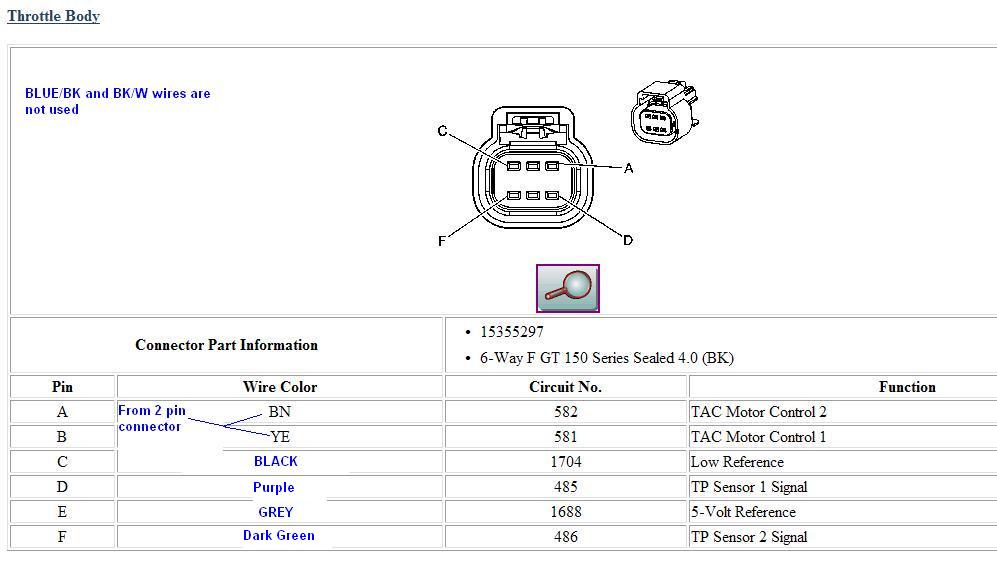

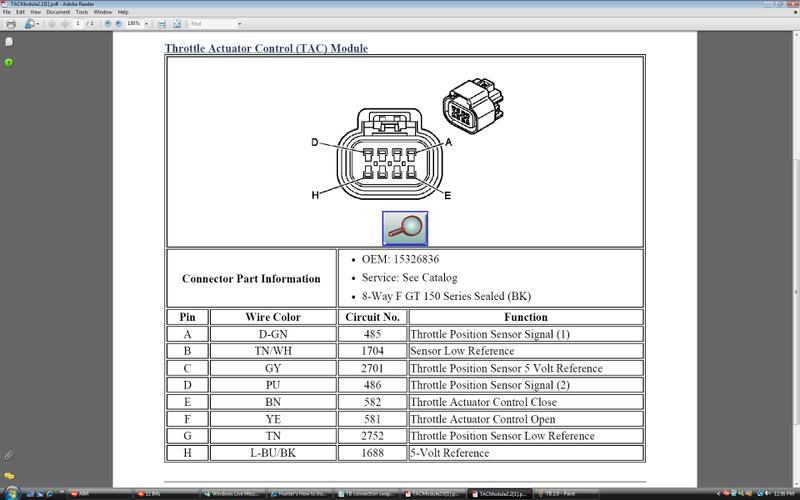

Did you need to reprogram any computers? I’ve rewired mine and when I turn the key it responds with a small open close sequence. However when the car is off it does not open or close when throttle is applied like the old one does. I have been using your images plus these from the OEM manual



[jirwin]

Other than the tune itself, no. I got the ZZP harness and it was plug-n-play. Put your donor information in your signature. Hard to say what the issue is without more info.
