V1 Missing Rod End Mounts

[KingChuck24]

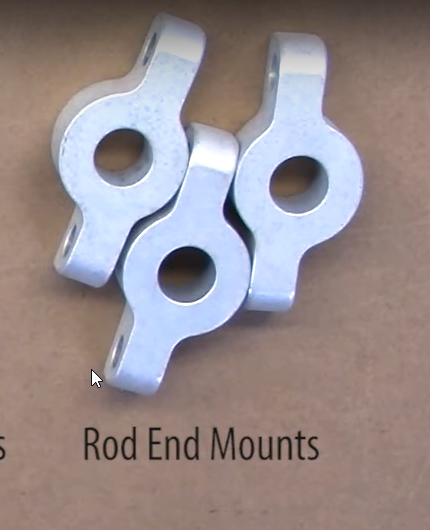

I was just trying to get going more on the front suspension and I realized that I could not find these pieces:

Anyone know what box or bag they came in? I looked in the front suspension box and they are not there.



[Ross]

Those are from the early frames... you will have steel ones in your kit.



[KingChuck24]

oh ok got it, thanks!



[Goblinfanclub1234]

these ones



[Josh's09]

View attachment 36458

these ones

I haven't been able to see any pictures of this set up installed. Do you have any pics by chance?



[Goblinfanclub1234]

this assembly discussion page really helped me out in the later stages!

Helpful Photo Albums

Here are some random helpful photo albums. I've ordered them by location on a Goblin, from the front to the rear. Heat Exchanger Front Suspension Rod End Mounts (steel version) Front Bearing Hub Inner Cap Installation Brake Reservoir Relocation Late Model Windscreen Steering Column...

dfkitcar.com

Front Suspension Steel Mounts

2 new items · Album by Adam Doyle

photos.google.com
