V1 IDRVSLO / TRACK / 08 SS TC **REGISTERED** #105

[Briann1177]

Repair...Chassis Electrical...Wiring Systems and Power Management...Connector End Views...Component Connector End Views



[ncgoblin]

Thats the one, are you looking these up in a Chiltons? If so what section?

May also want to look into an alldatadiy.com subscription I think I got mine on a summer sale for like $12 per vehicle per year very easy search its paid for its self 10x over IMO electrical can be a pain.

When you get the connectors all trimmed post some photos I am curious if you end up with the same result as I did.



[IDRVSLO]

Video 13 complete.



[IDRVSLO]

May also want to look into an alldatadiy.com subscription I think I got mine on a summer sale for like $12 per vehicle per year very easy search its paid for its self 10x over IMO electrical can be a pain.

When you get the connectors all trimmed post some photos I am curious if you end up with the same result as I did.

I will do that after I complete the whole wire harness.



[IDRVSLO]

Haven't started video 14....does anyone know where the large black radiator fan power wire goes to by the fuse box? Mine is extended the 12 inches. Making sure I didn't miss a step



[Karter2026]

Haven't started video 14....does anyone know where the large black radiator fan power wire goes to by the fuse box? Mine is extended the 12 inches. Making sure I didn't miss a step

You will find it in video 20 I think .



[IDRVSLO]

So got up to the point where I clip the dash harness to the body harness then label/cut wires. When doing this there were wires missing from the body side but were on the dash side. I'm assuming I just didn't remove them when going through the dash harness video.

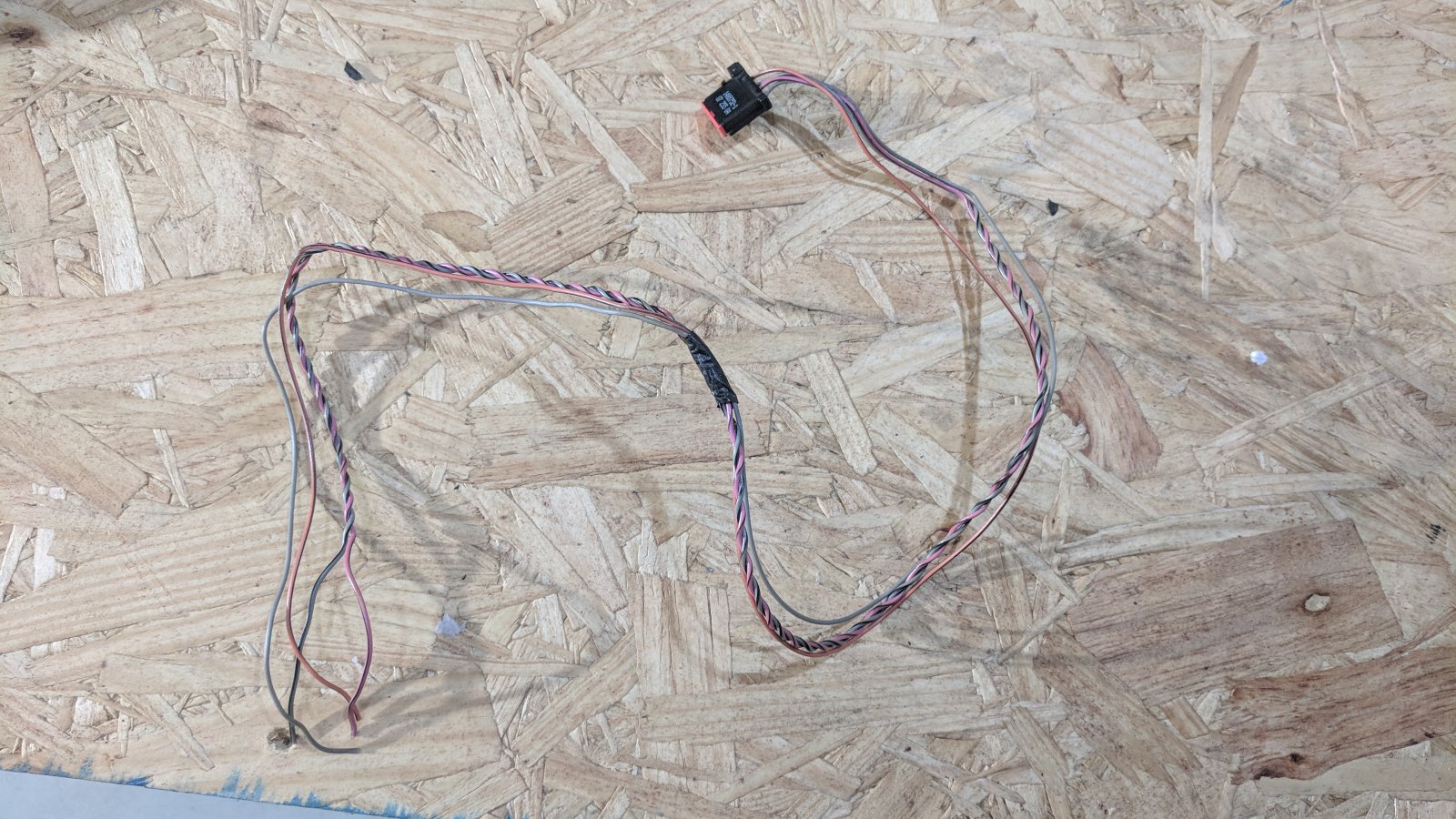

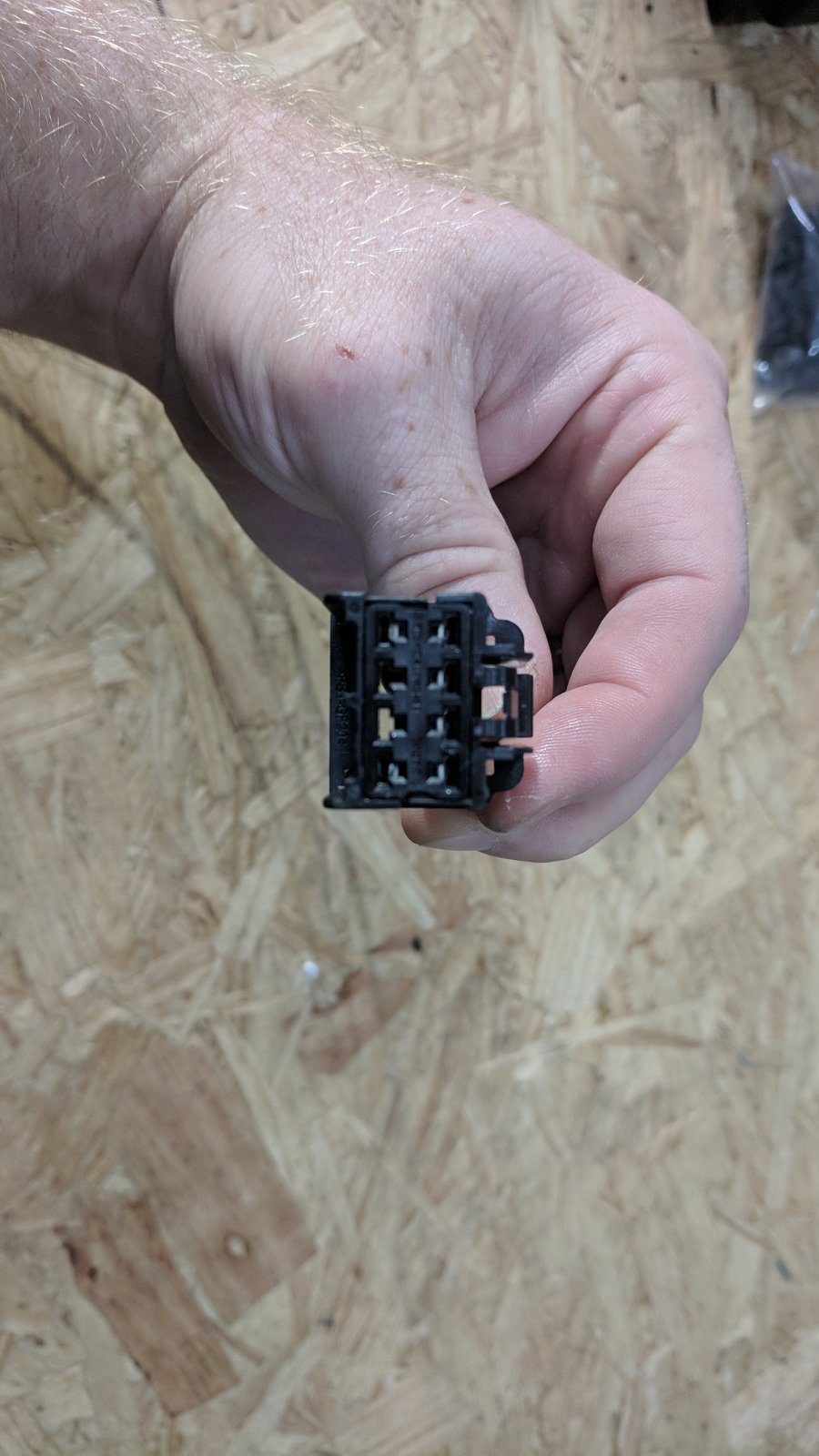

Picture 1/2 Looks to be the audio amplifier plug

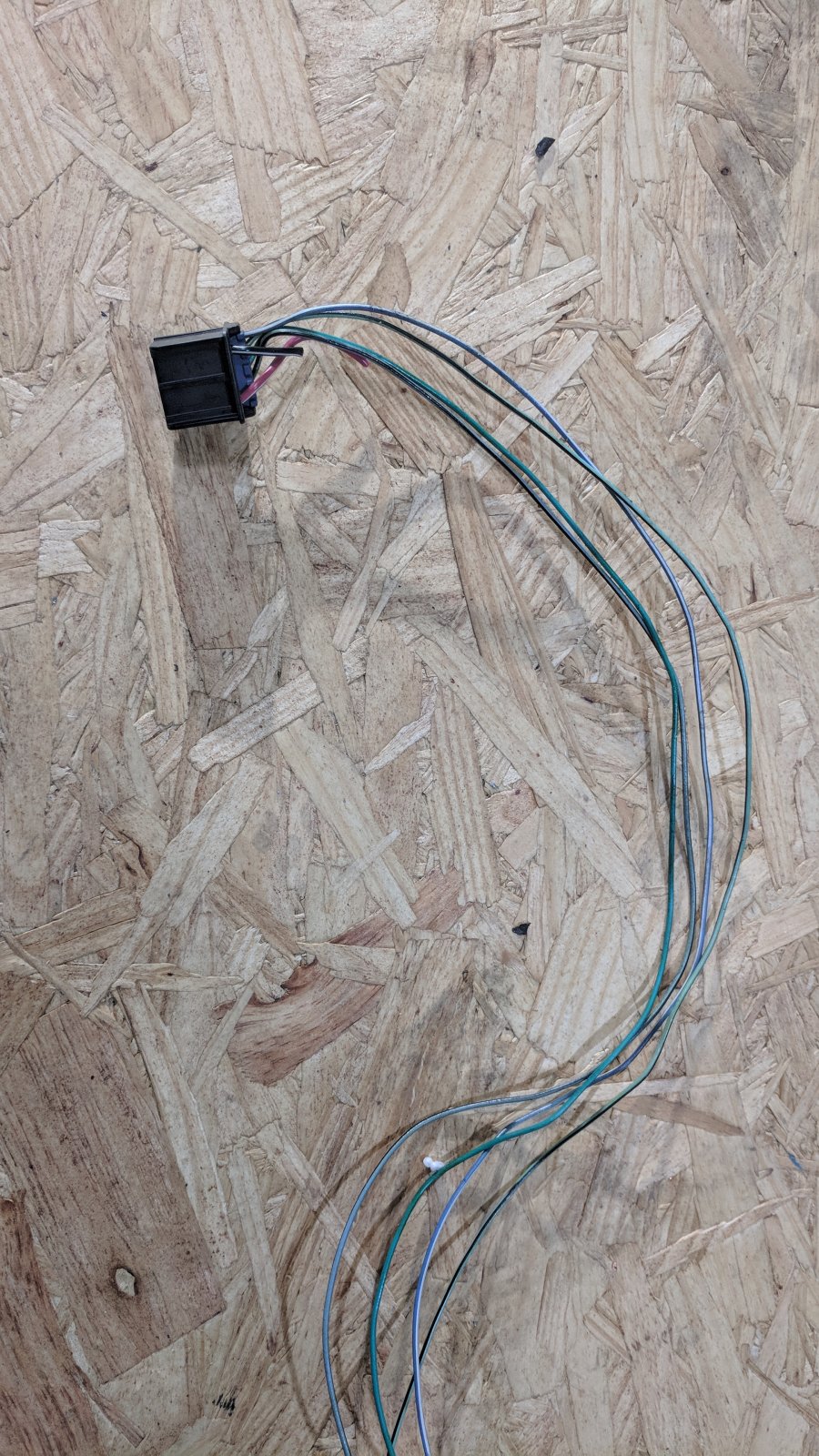

Picture 2/3 No clue right now

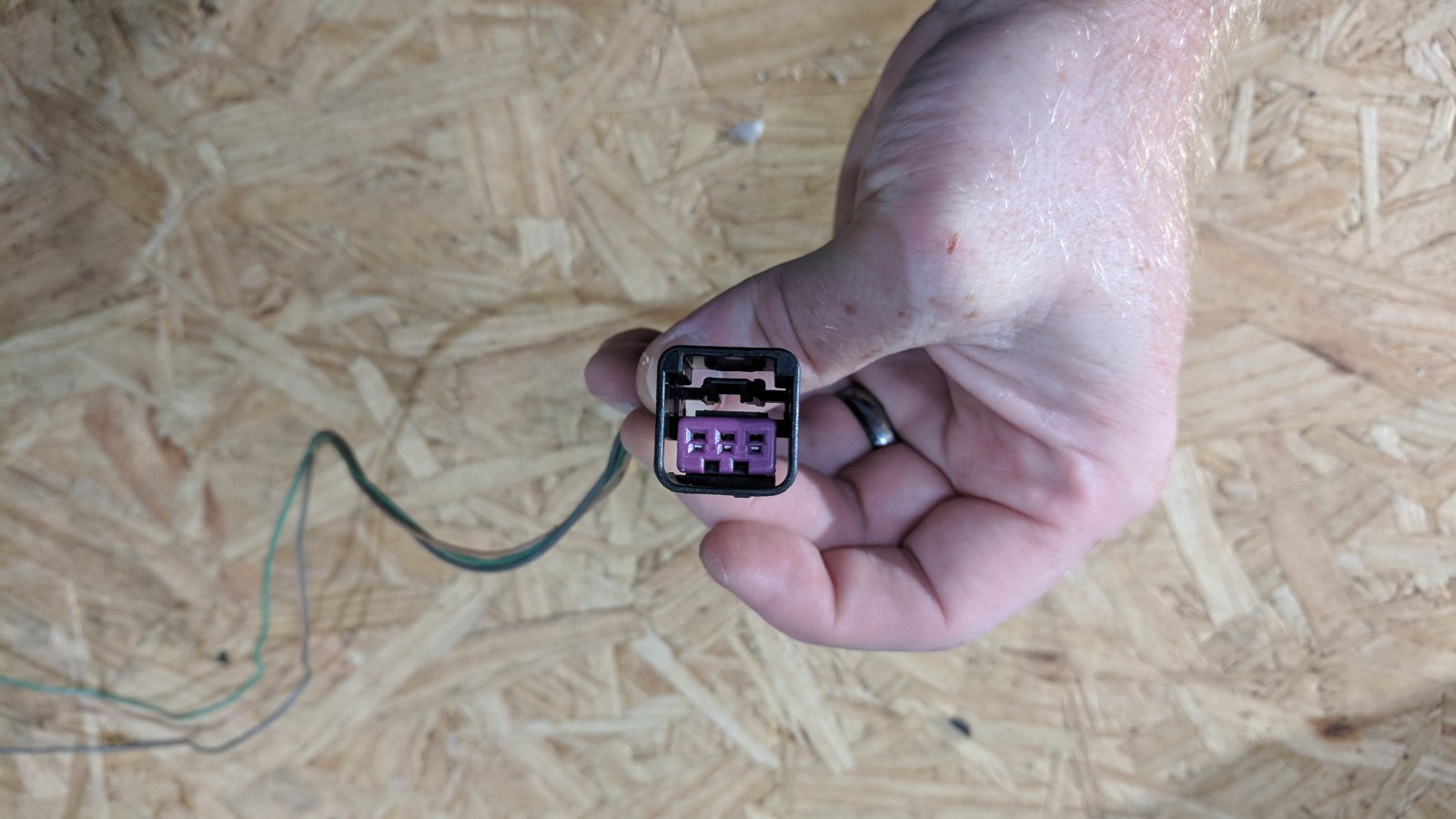

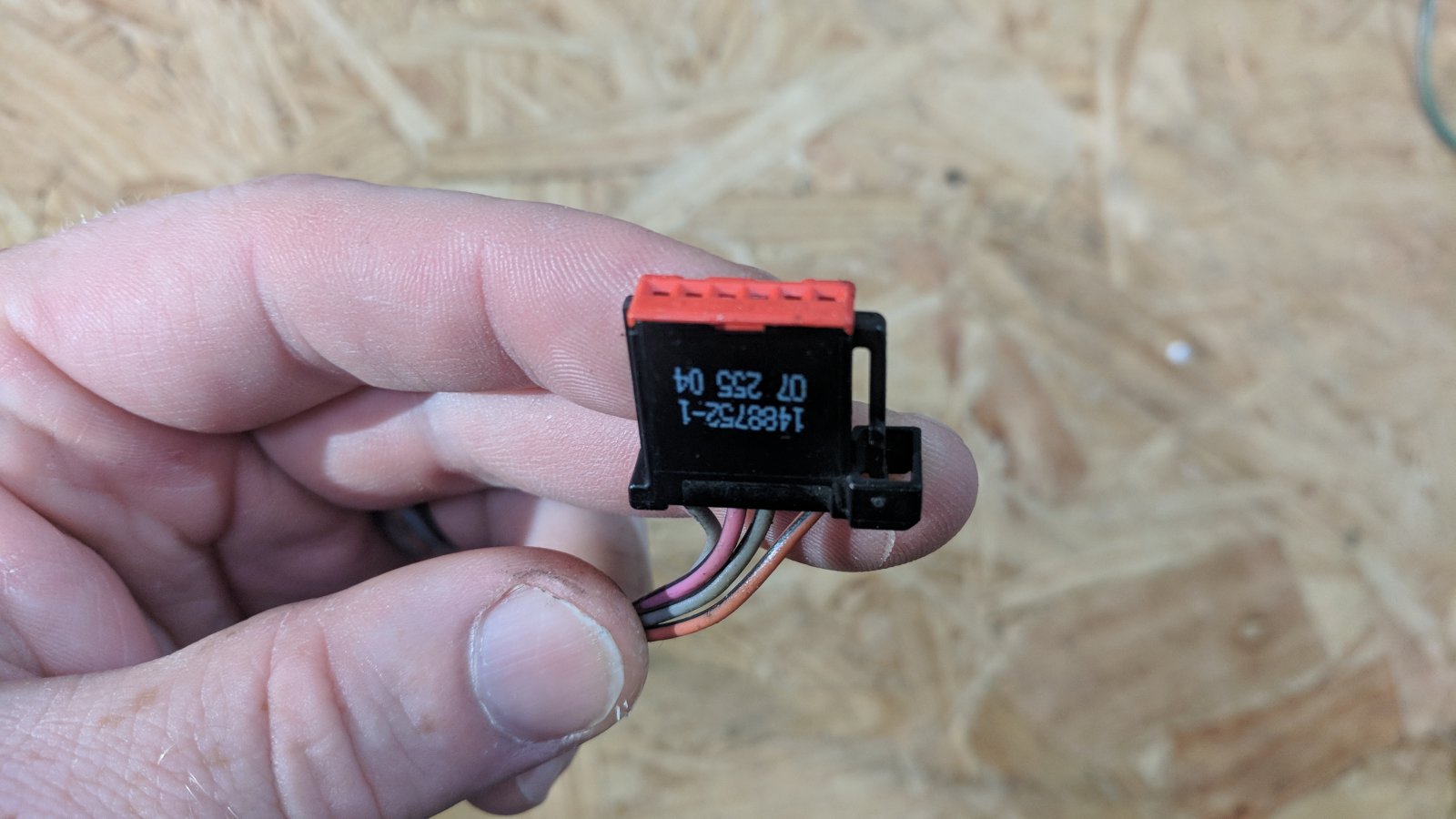

Picture 4/5 Steering Angle Sensor......needed? (Looks like people are removing and removing the actual sensor)



[IDRVSLO]

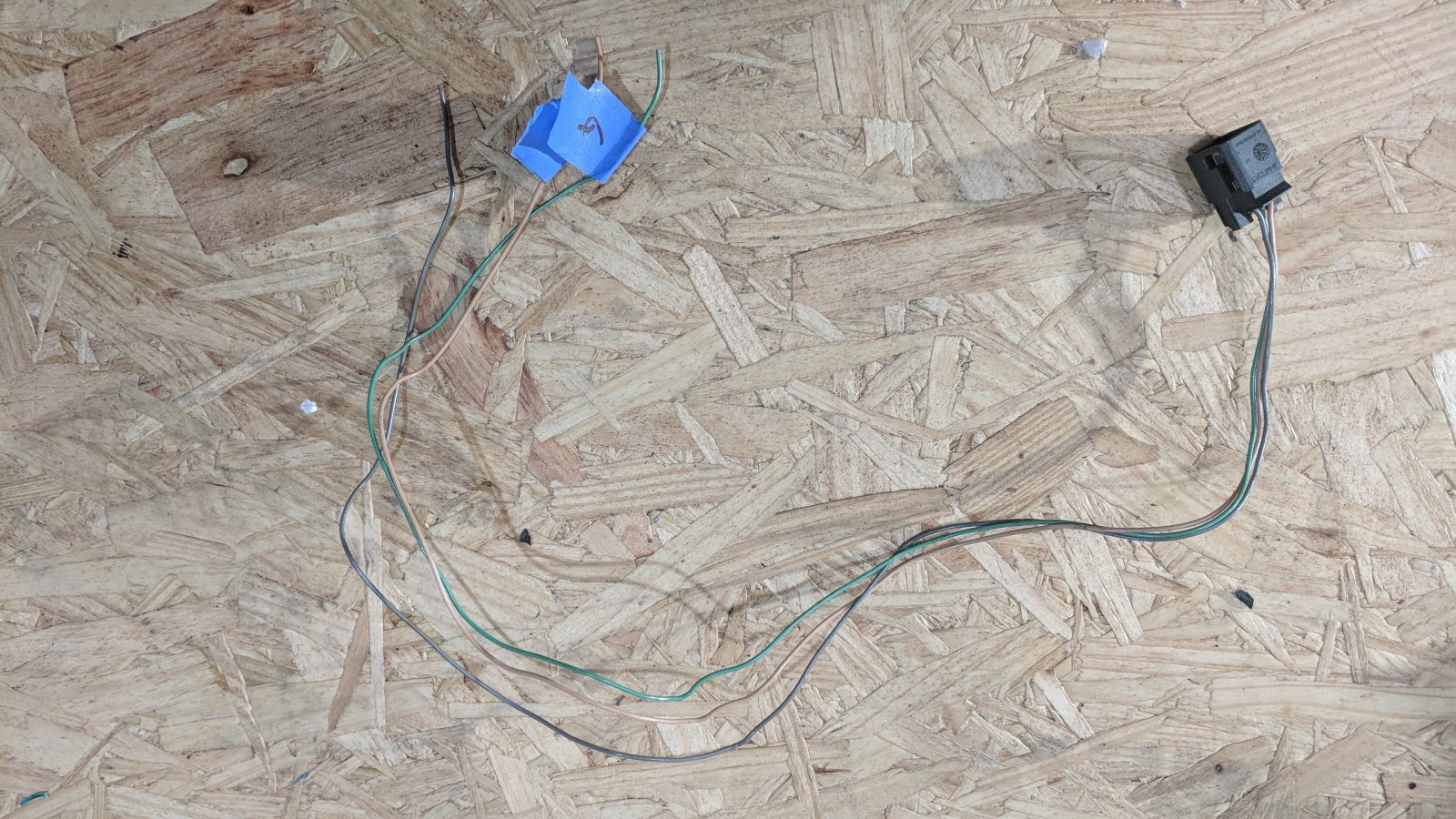

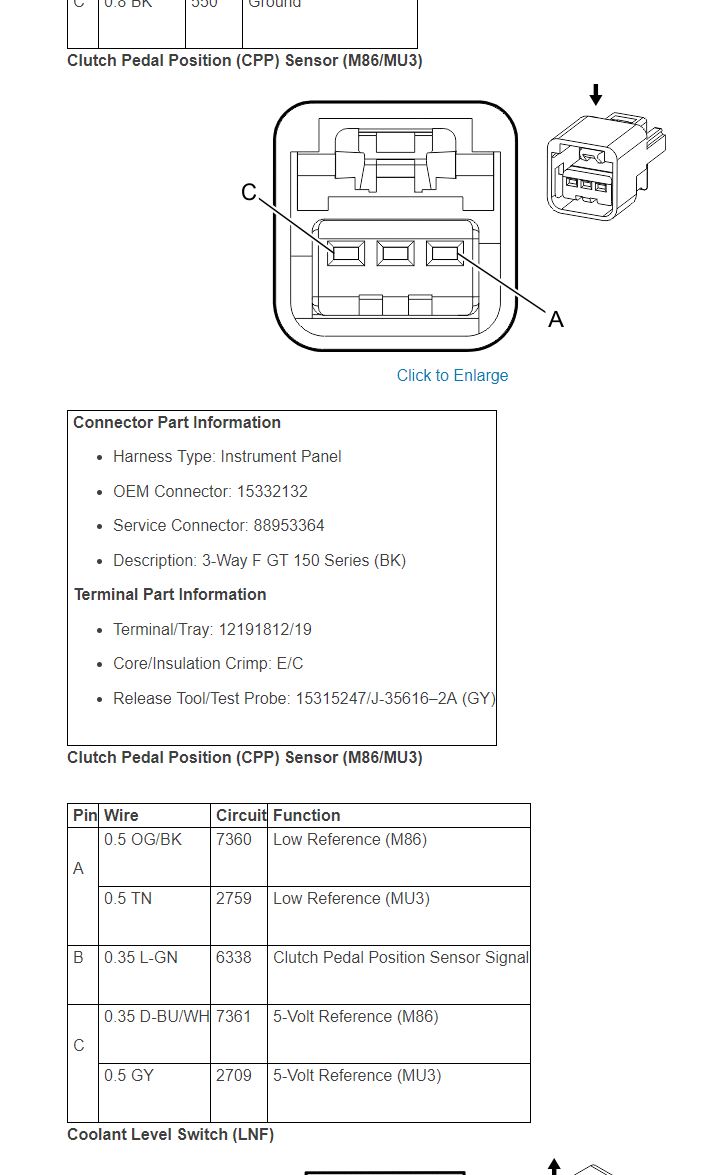

So it looks like 2/3 are for the Clutch Pedal Position Sensor?

If so you can see I have 2 out of 3 that are labeled but the grey wire doesnt have a matching wire on the opposite side.....ugh.



[IDRVSLO]

And.........traced 2709 back to the ECM plug, reconnected, retaped. Not sure why that one was cut.



[IDRVSLO]

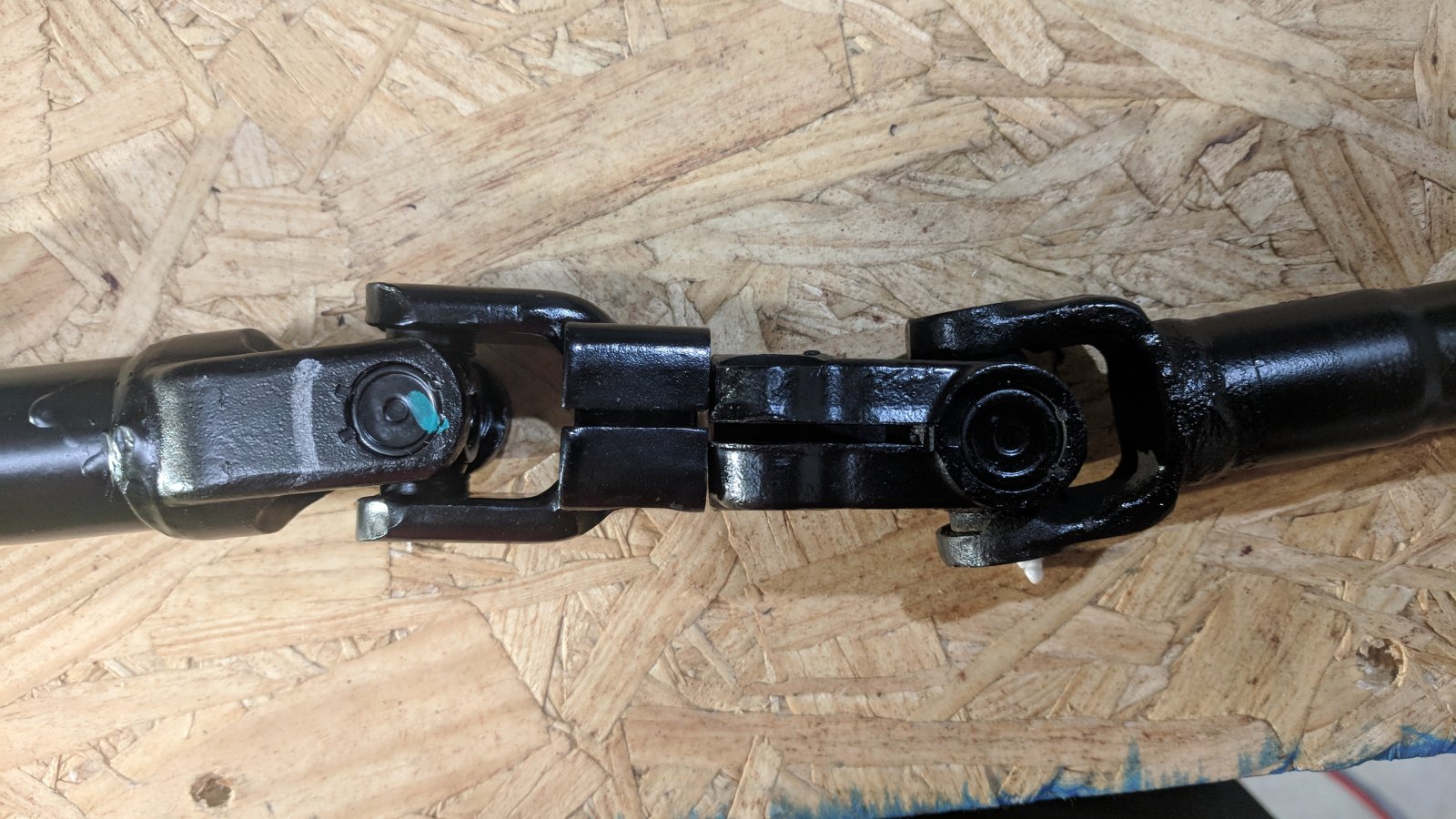

Well this is frustrating. Ordered the Dorman replacement steering shaft. Cut the boot off, paint it, go to slip it on and the base is so big when I rotate it the neck hits the front bulkhead. Now I need to take the Dremel and enlarge the left and right side to get this to work. Perfect.



[Briann1177]

My stock steering shaft also hit the sheet metal bulk head. It seems to be a common issue.



[IDRVSLO]

Good to know, busting out the dremel this week.



[IDRVSLO]

Time to wrap the harness up this week.



[IDRVSLO]

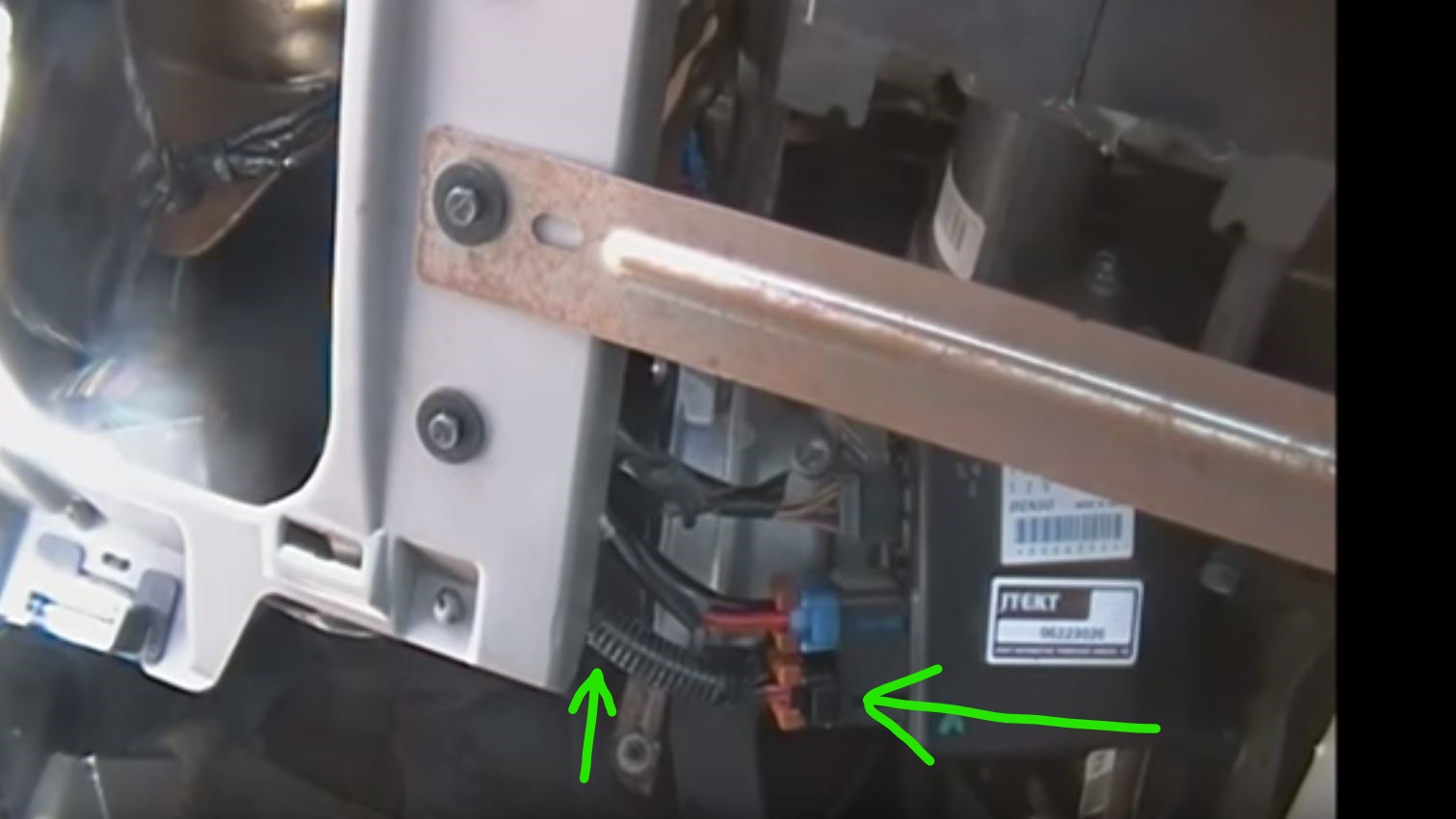

Feeling pretty awesome....Part 14@14:55, large power steering wire.....yeah.....can't find where I put that.

I will look more tomorrow but have a bad feeling.



[IDRVSLO]

Assuming it is gone, anyone have a spare, lol?



[Briann1177]

You should be able to use something like 10 AWG for the power steering wire. I believe it's a 60A circuit. Most auto parts stores should stock spools of that stuff.



[IDRVSLO]

You should be able to use something like 10 AWG for the power steering wire. I believe it's a 60A circuit. Most auto parts stores should stock spools of that stuff.

Yeah but its the connector I am more concerned with. I am hitting up the Cobalt FB pages in search for one from someone who is parting out or scrapping a car.



[BaltimoreHokie]

There are a couple Facebook groups for cobalts. There are a ton of part outs on there. Check them out.



[IDRVSLO]

There are a couple Facebook groups for cobalts. There are a ton of part outs on there. Check them out.

Already on it, thanks, I belong to them all due to the part out.

I hate admiting mistakes but this one is pretty dumb.



[IDRVSLO]

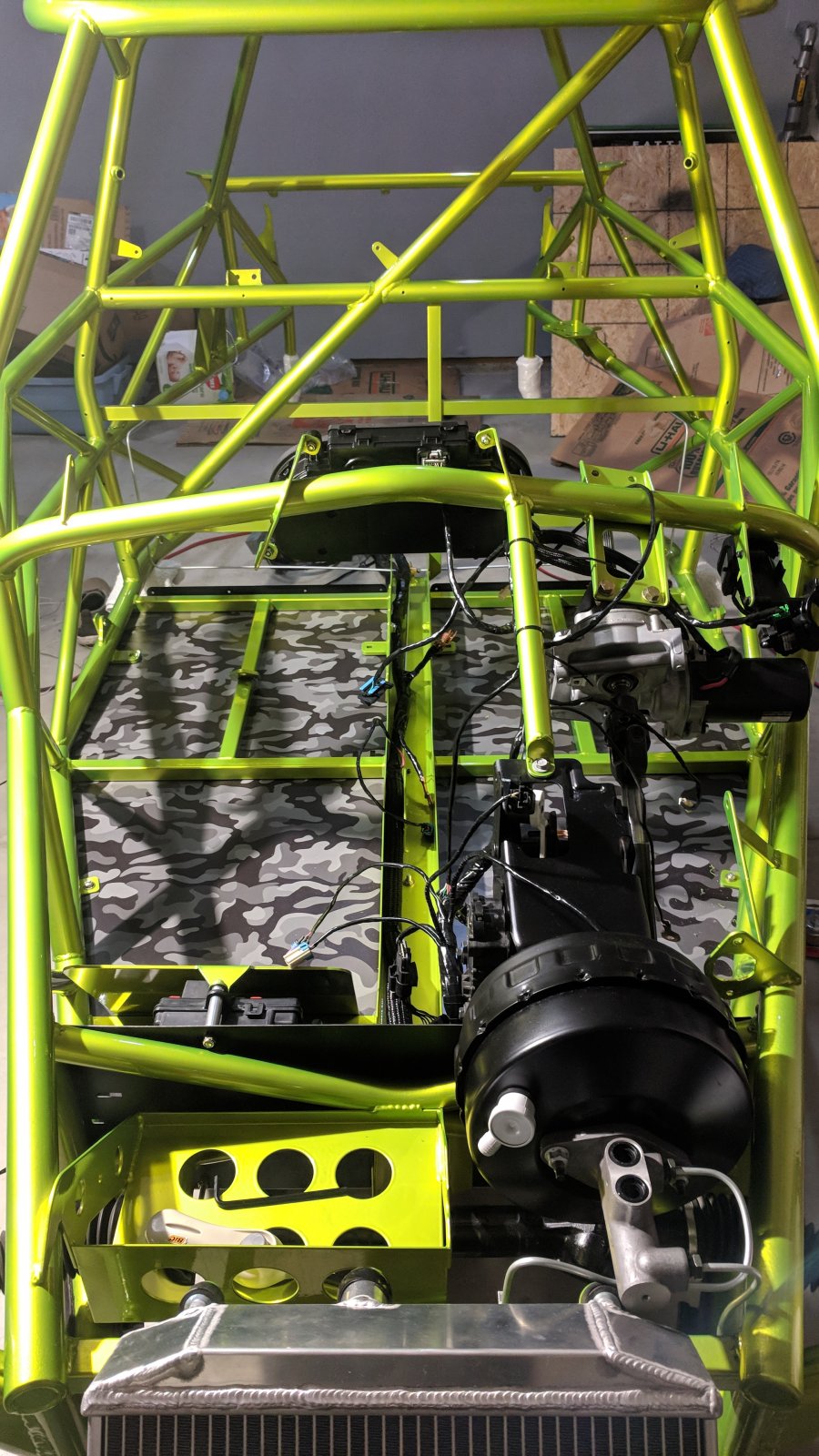

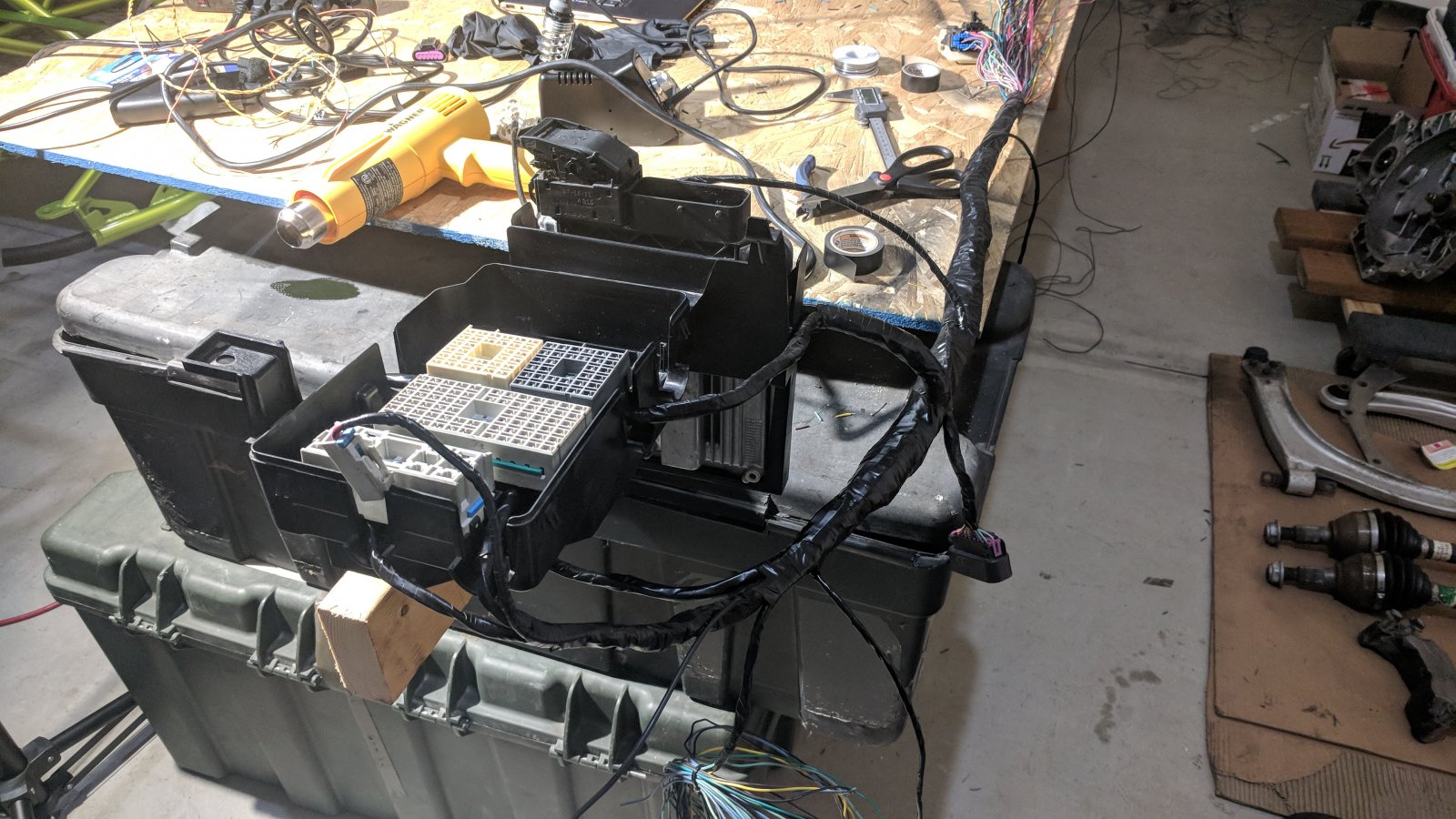

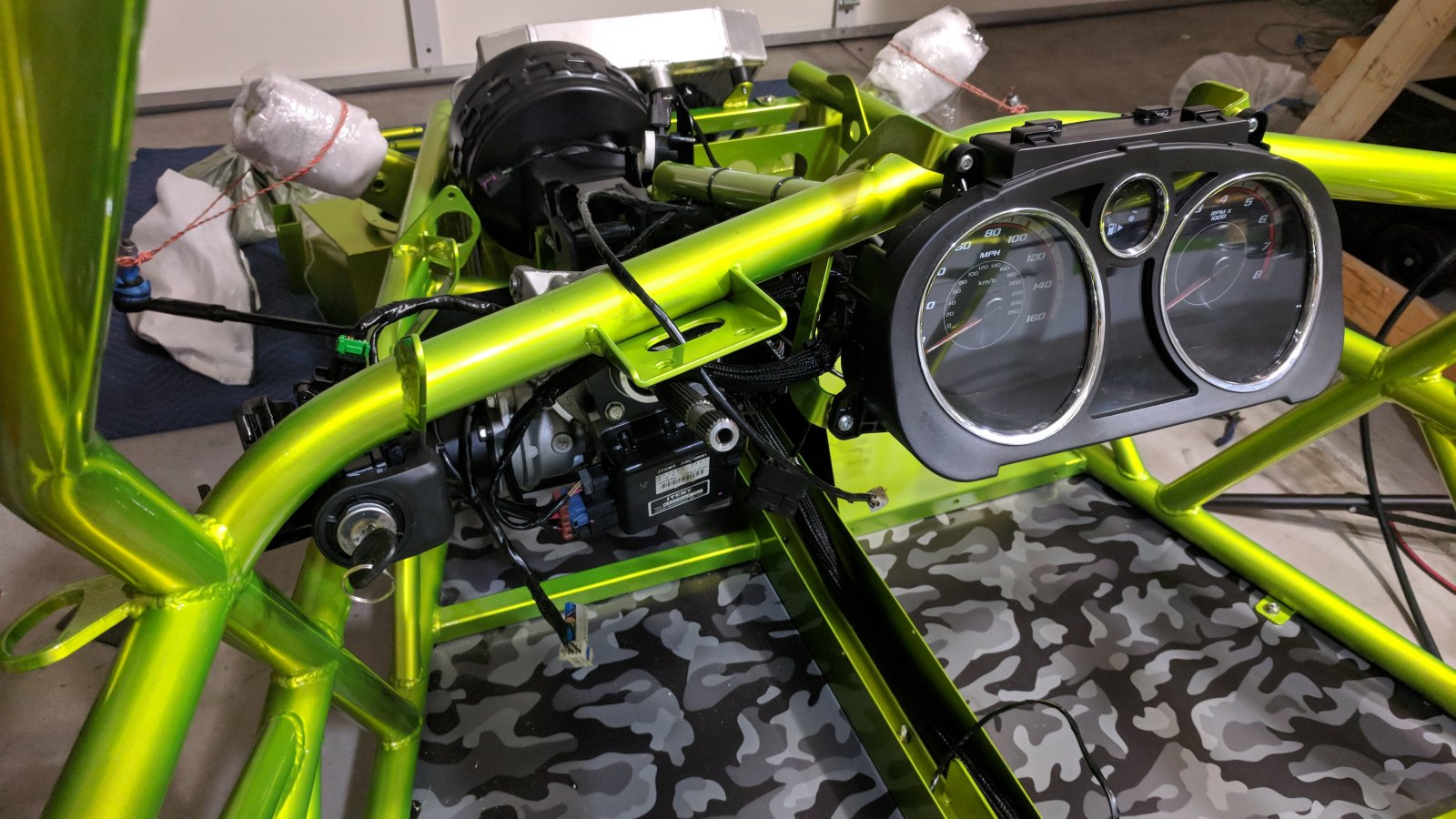

Harness is complete! Hoping it is good to go! The one thing I noticed was that the ground wires are not long enough to reach the ground lug in the tunnel. I think I will put a new bolt in place further back and clear off some powder instead of extending the wires.

Thoughts?
