Shifter linkage ?

[CaptFrank2001]

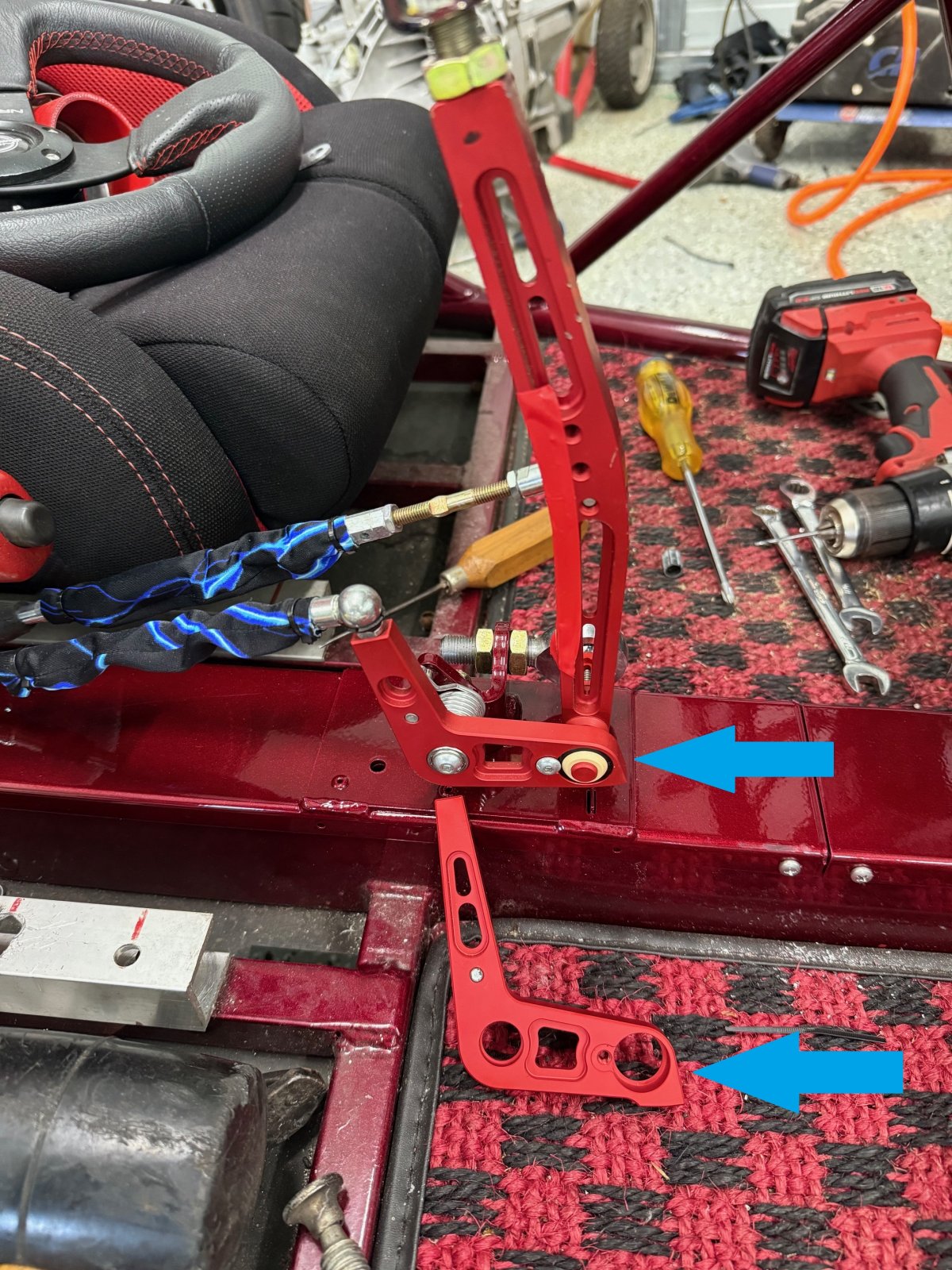

I had the Billet Shifter laying around for quite a while waiting to powder-coat the center channel cover(s). Finally found a good painter. Installed the shifter but realized I have TWO of the "L" shaped linkages. I have an F23 and I am not sure which one goes to my shift kit. The one I installed is the shorter of the two.



[Rauq]

I think early on they had short and long throw options. If the second L is similar in one dimension but not the other, I would guess that you can run one or the other.



[Markm]

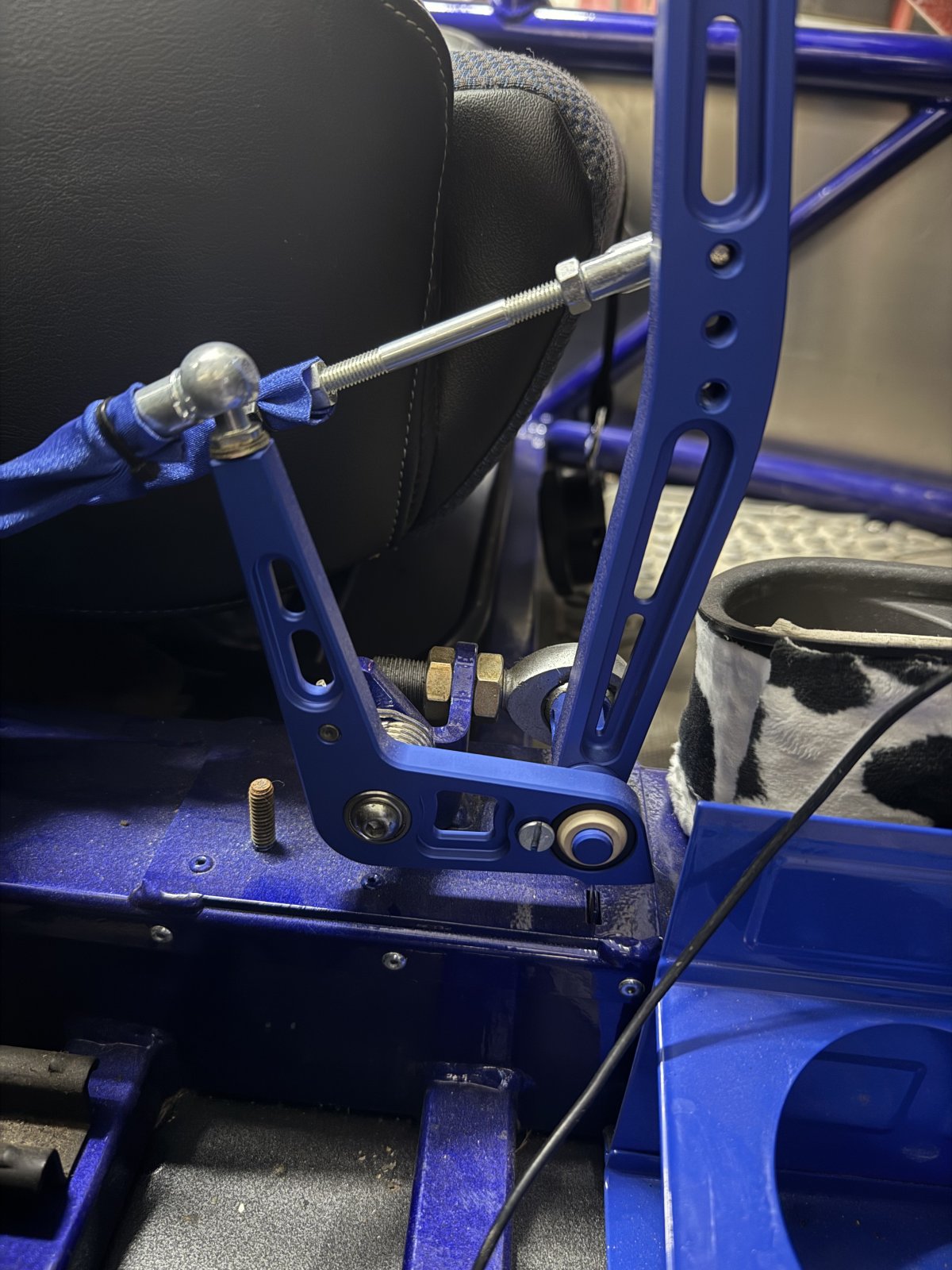

I set the wife’s up like this. Our shifter only came with one bell crank. I had to shorten the threaded end on the bell crank cable about 1/4” to get it adjusted properly and it works great
