V1 r3drckt - extended track - 06 SS/SC G85

[ctuinstra]

I have the MPVI2 version, but if you want to use an analog AFR gauge then you have to use the side adapter plug and wire the AFR to that. If you use a digital one, you get the serial to usb and wire the AFR sensor to a serial>usb adapter and plug straight to the PC, then set HPTuner to utilize that as a secondary input if I’m understanding @ctuinstra correctly.

The 07 (with the P12) don’t support CANBUS O2 that’s available. That’s why I had to use the analog.



[Rauq]

Just wire the wideband 0-5v output into the AC pressure sensor pin in the ECU harness, then read AC pressure in HP Tuners as your AFR. No additional wiring required.



[r3drckt]

Just wire the wideband 0-5v output into the AC pressure sensor pin in the ECU harness, then read AC pressure in HP Tuners as your AFR. No additional wiring required.

I will be removing the AC compressor entirely during my rebuild and turbo swap (hopefully it's possible) so I think this might be a good experiment to try. Worst case I just cap the wires on there as if I just left it unplugged.



[r3drckt]

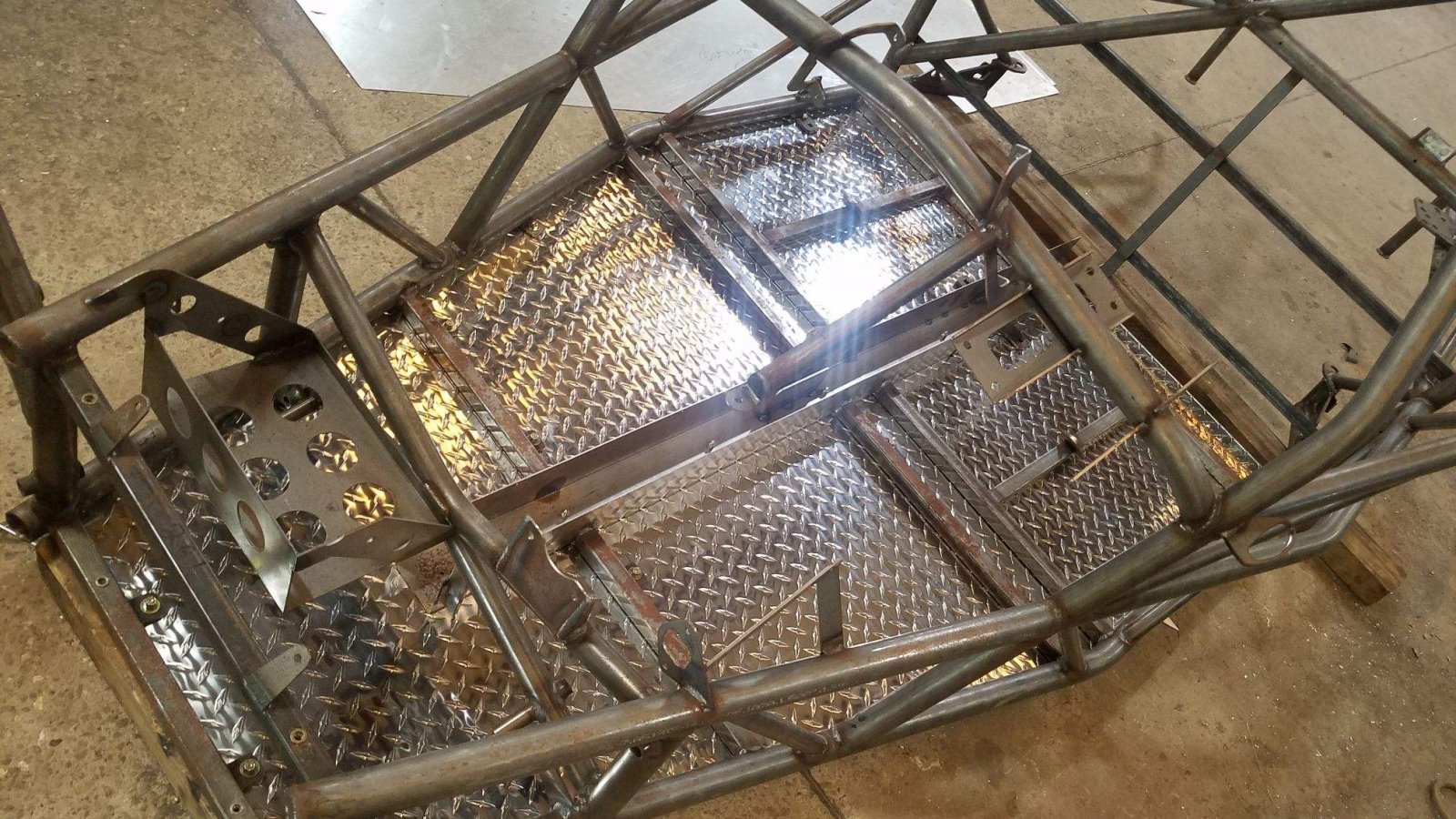

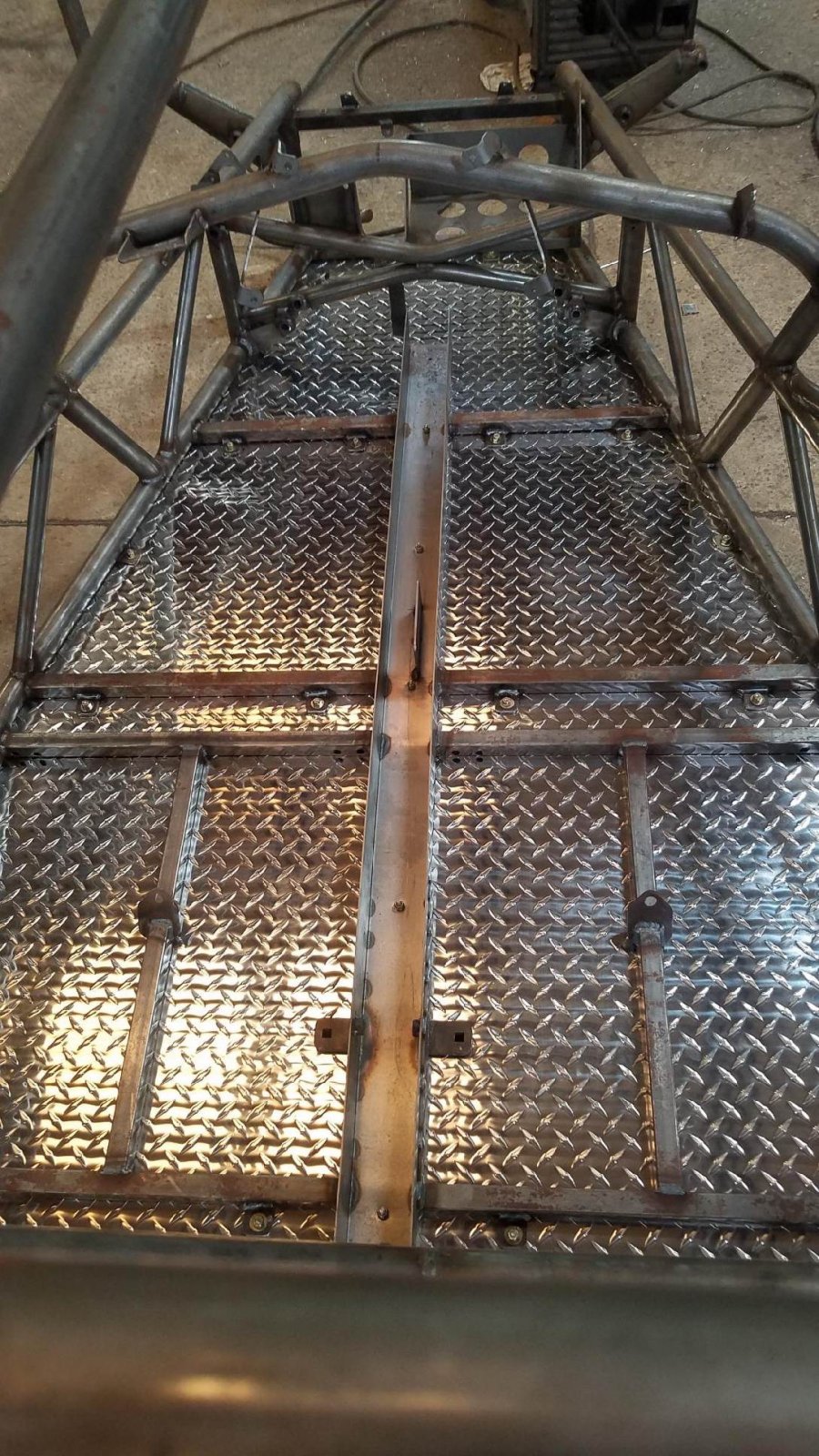

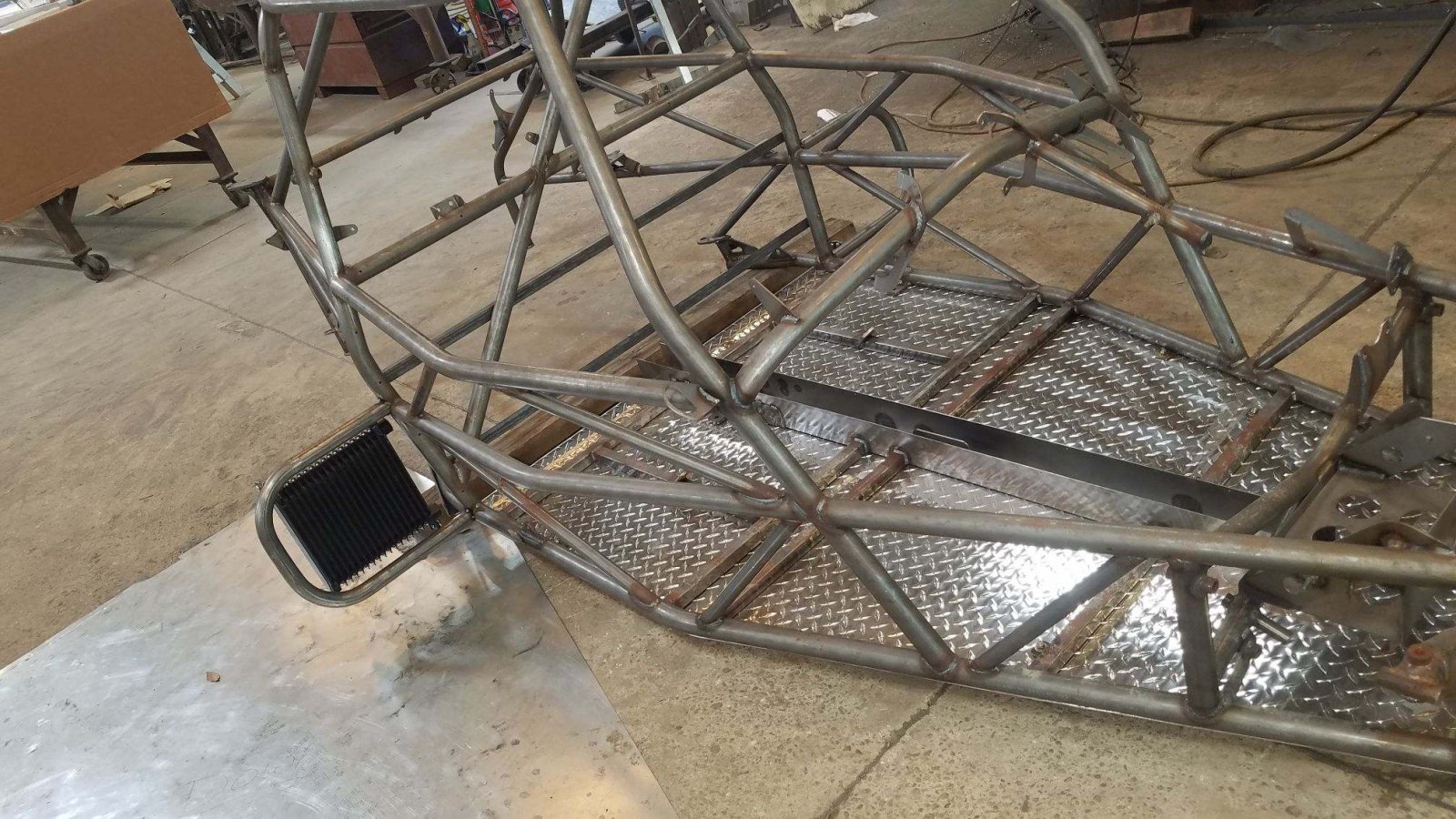

Finally got an update on my chassis. Middle halo bar installed and Diamond floor pan cut and bolted to new tabs. Made out of aluminum



[r3drckt]

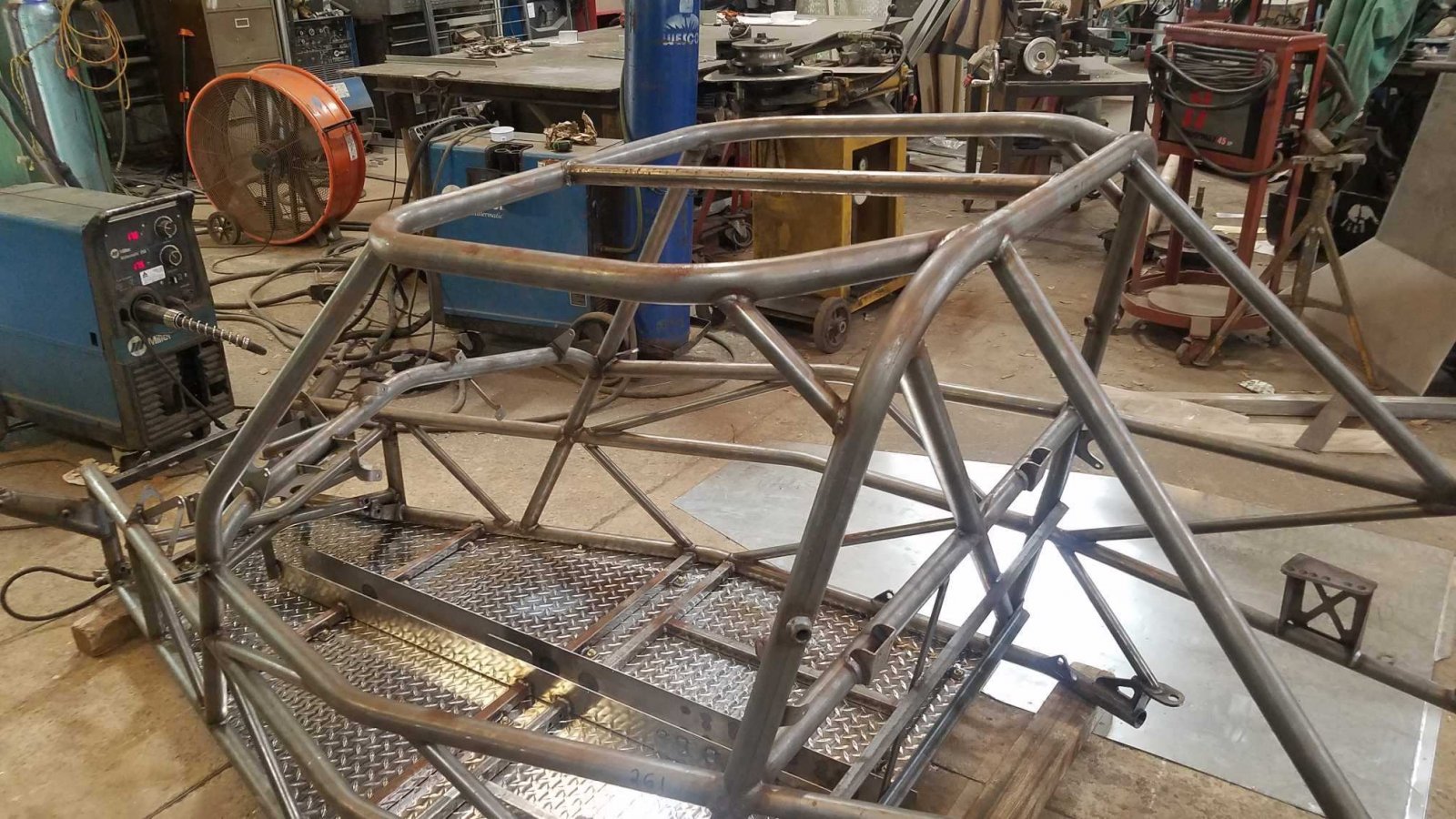

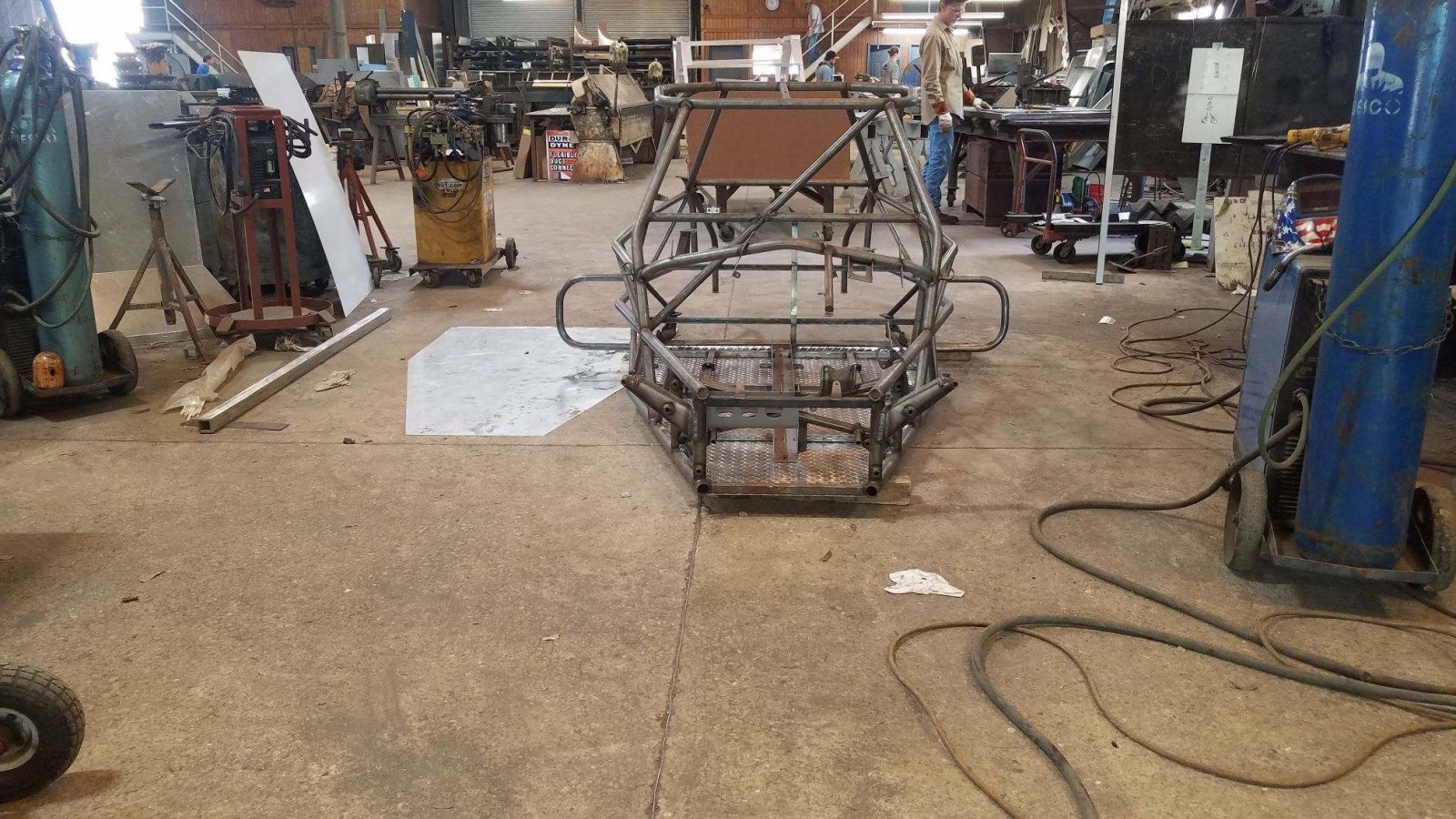

Little more progress made on the chassis.



[r3drckt]

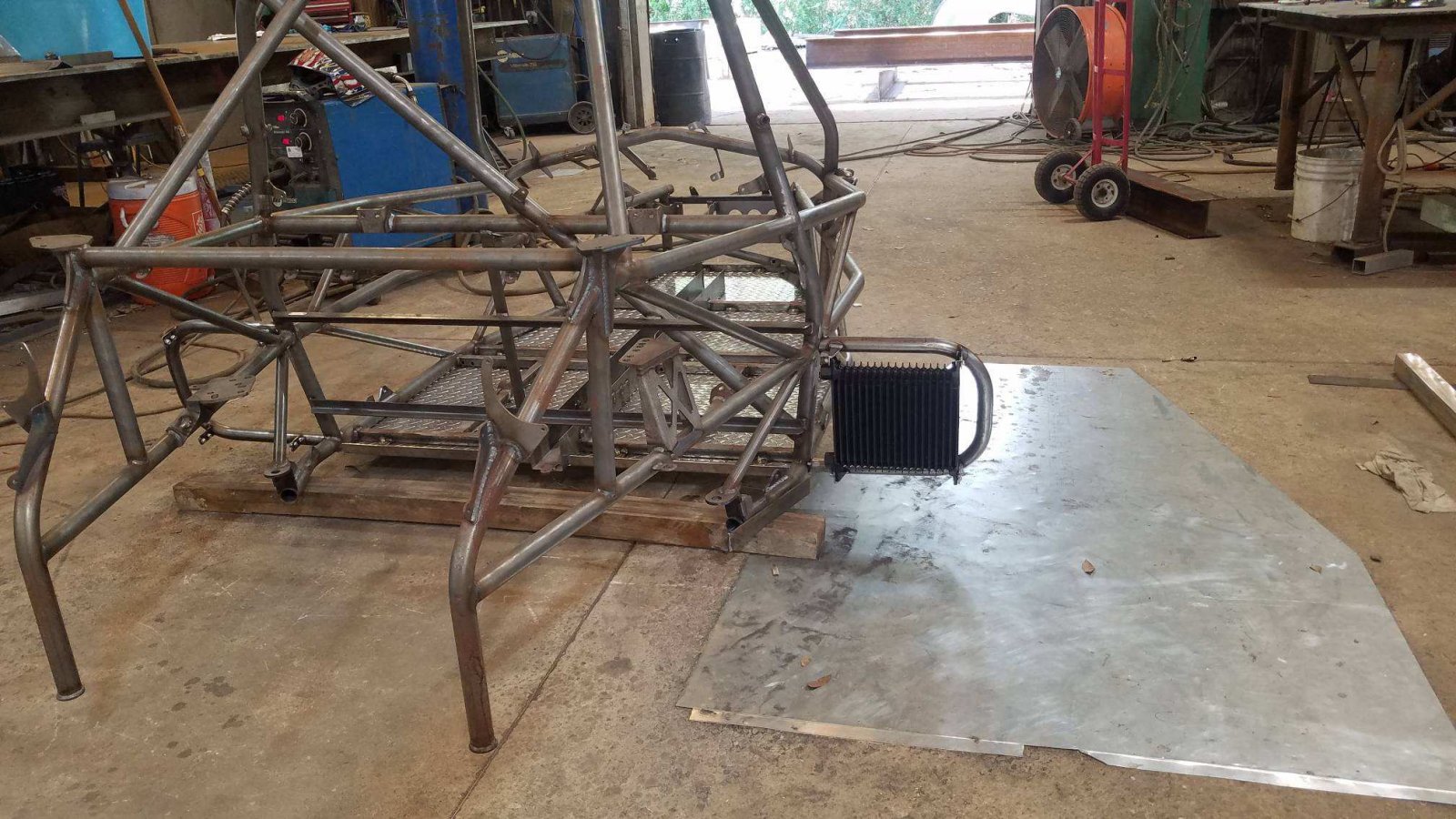

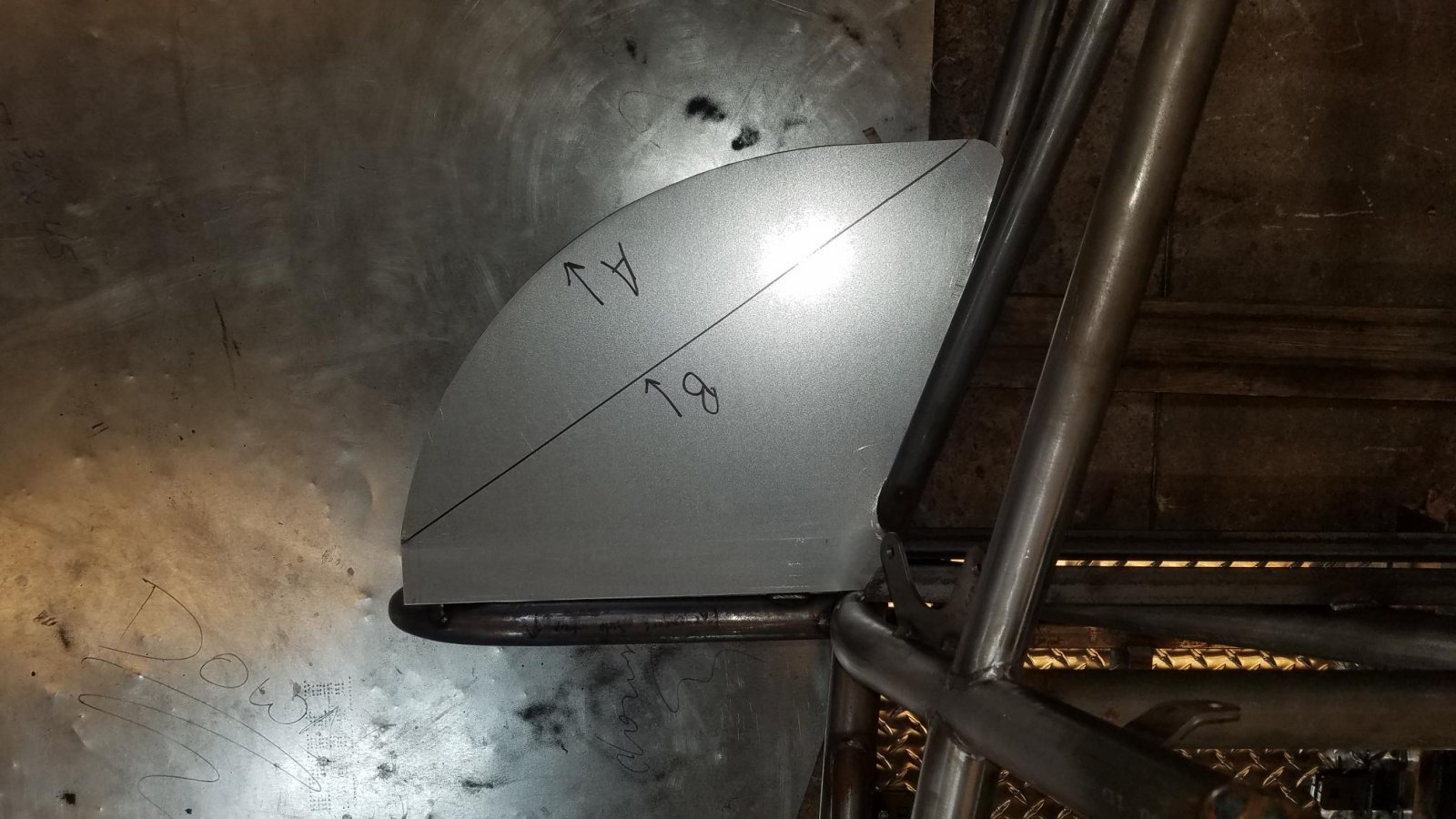

Going with radius A instead of straight cut B. It will direct the air towards the engine bay and out the back.



[JBINTX]

Going with radius A instead of straight cut B. It will direct the air towards the engine bay and out the back.
View attachment 24515

ooooooooo....
Side pods!!!!!



[r3drckt]

ooooooooo....
Side pods!!!!!

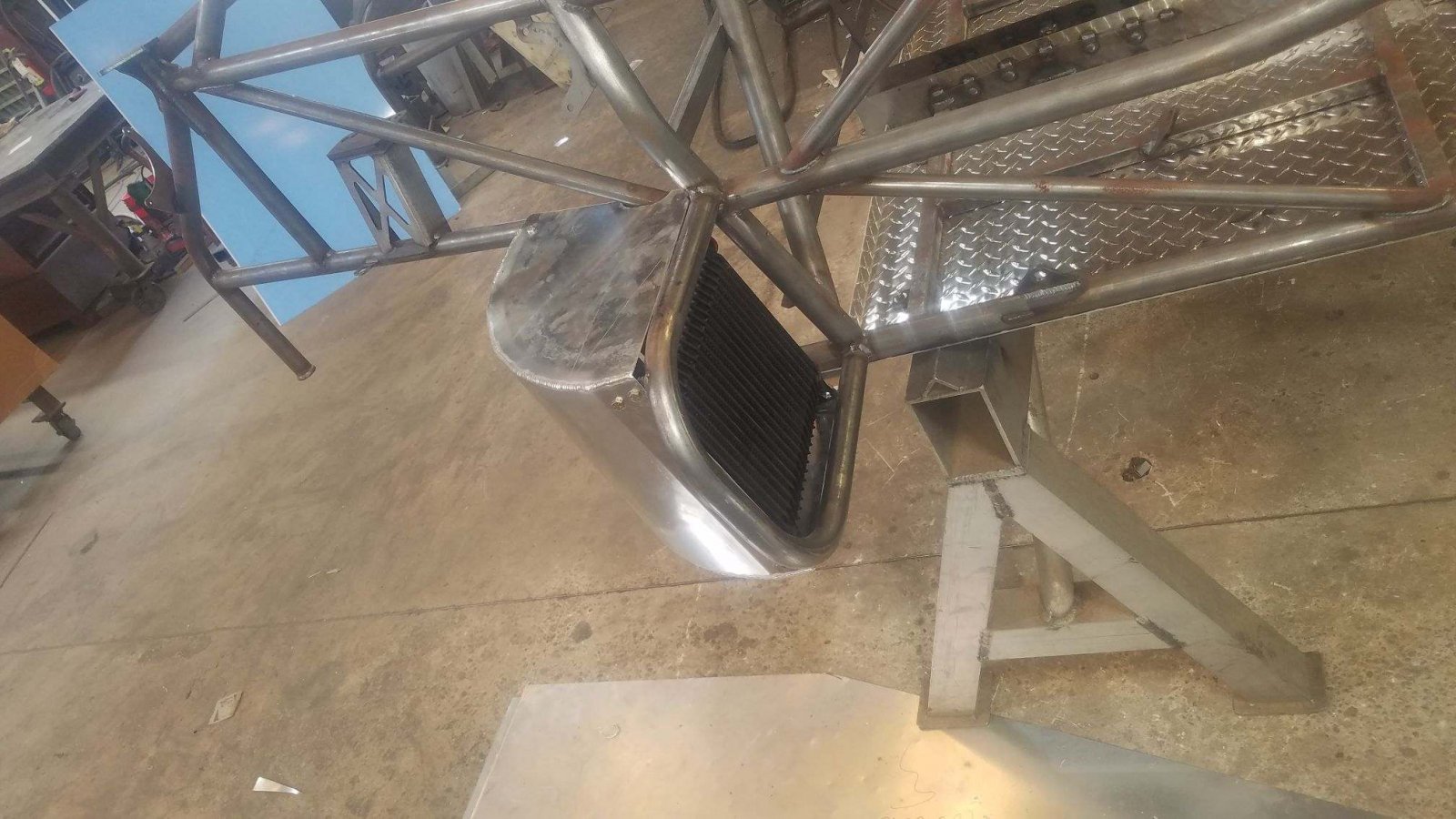

Hoping with the bottom fully enclosed (minus the engine bay) that I’ll reduce the lift on the front end. Means the heat exchangers had to go somewhere. Was going to run both in series for the water to air IC, but not sure if that will be overkill and if I should repurpose one to an oil cooler.



[Waterdriver]

If you plan on road course duty, the second one would be a really good idea. You can still put the the oil cooler in one of the side pods, behind the IC heat exchanger. Heat coming off the the IC HE is minimal compared to the stock oil cooler using the engine coolant to cool or heat the engine oil.
You'd still get plenty of cooling potential.



[Jcasson]

Little more progress made on the chassis.
View attachment 24511View attachment 24512View attachment 24513

about how much diamond plate did you use for the floor?



[r3drckt]

about how much diamond plate did you use for the floor?

Couldn’t tell you. The fab shop did it while they did the center bar and side intake pods



[Jcasson]

Couldn’t tell you. The fab shop did it while they did the center bar and side intake pods

ok, i wanted to do the same but was not sure the measurements of the floor plate. im sure i can find it somewhere. thank you sir



[r3drckt]

ok, i wanted to do the same but was not sure the measurements of the floor plate. im sure i can find it somewhere. thank you sir

Took a tape measure to the floor. Nose to firewall is 71”, left to right is 47”. 6’x4’ section would cover it all easily.

You’d want to weld some extra tabs to the frame so you can bolt the floor to it.



[Jcasson]

Took a tape measure to the floor. Nose to firewall is 71”, left to right is 47”. 6’x4’ section would cover it all easily.

You’d want to weld some extra tabs to the frame so you can bolt the floor to it.

Thank you sir for taking the time to measure that for me. Now I know what I will need.



[r3drckt]

Thank you sir for taking the time to measure that for me. Now I know what I will need.

Np, glad I can help



[r3drckt]

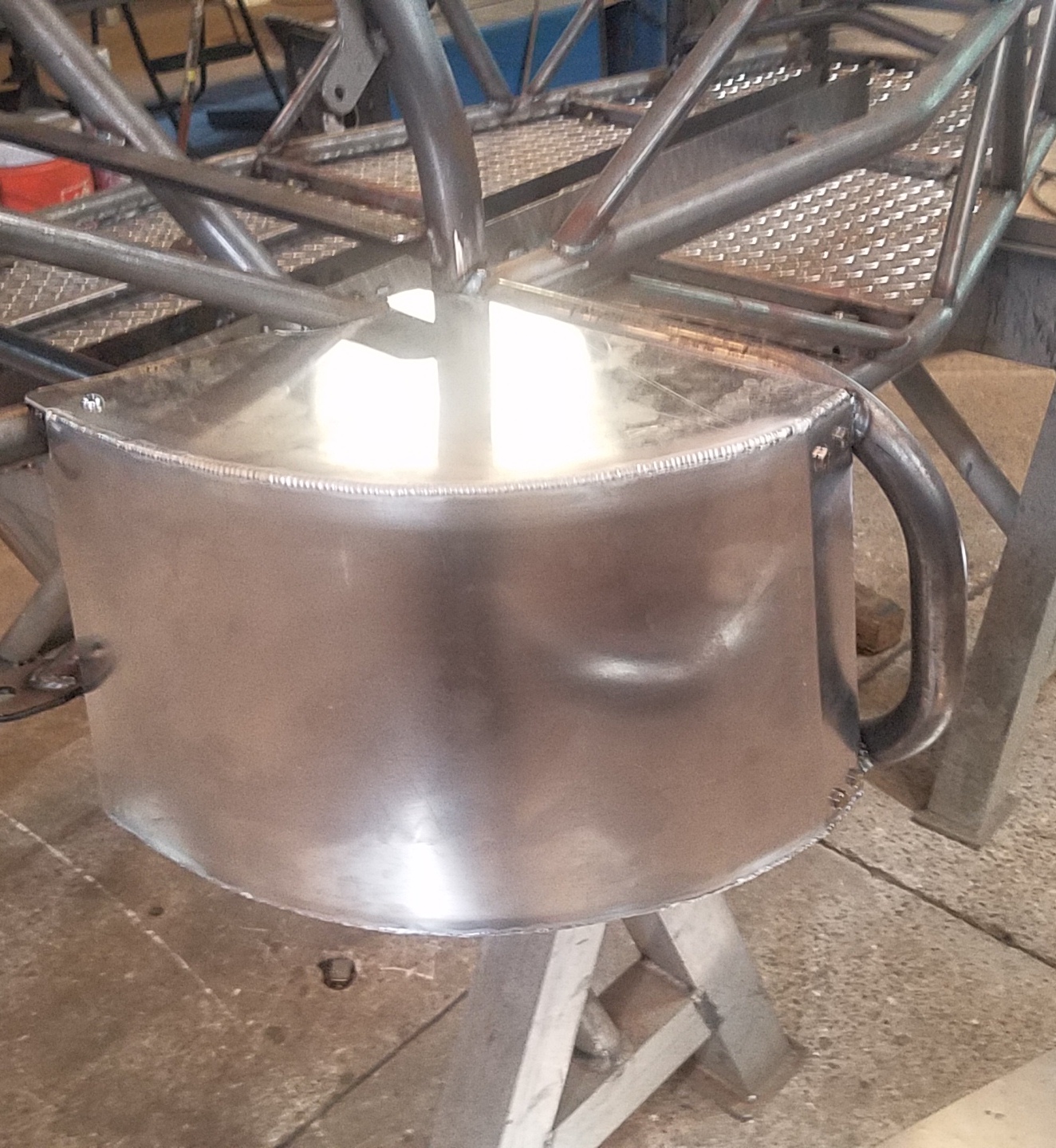

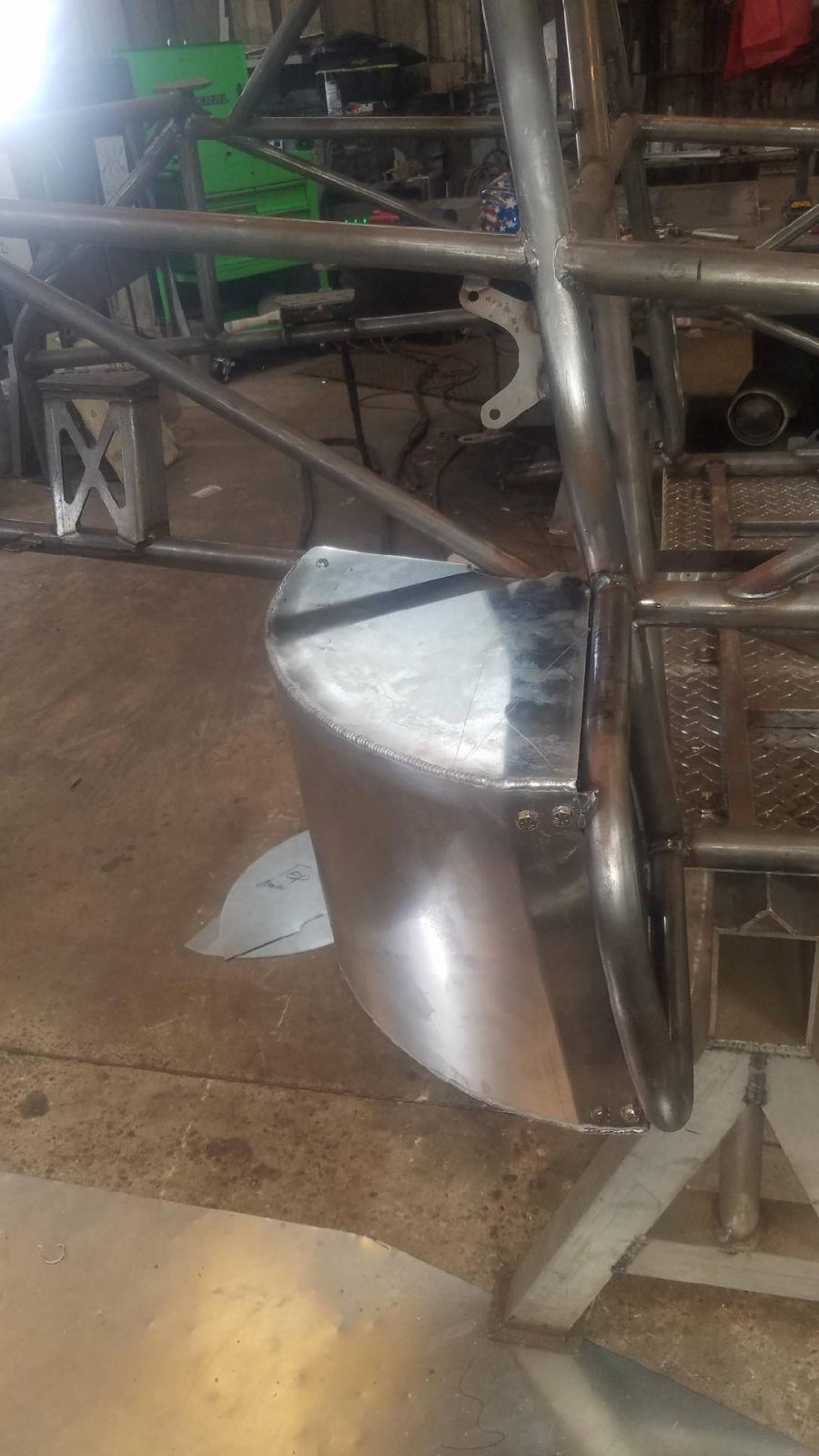

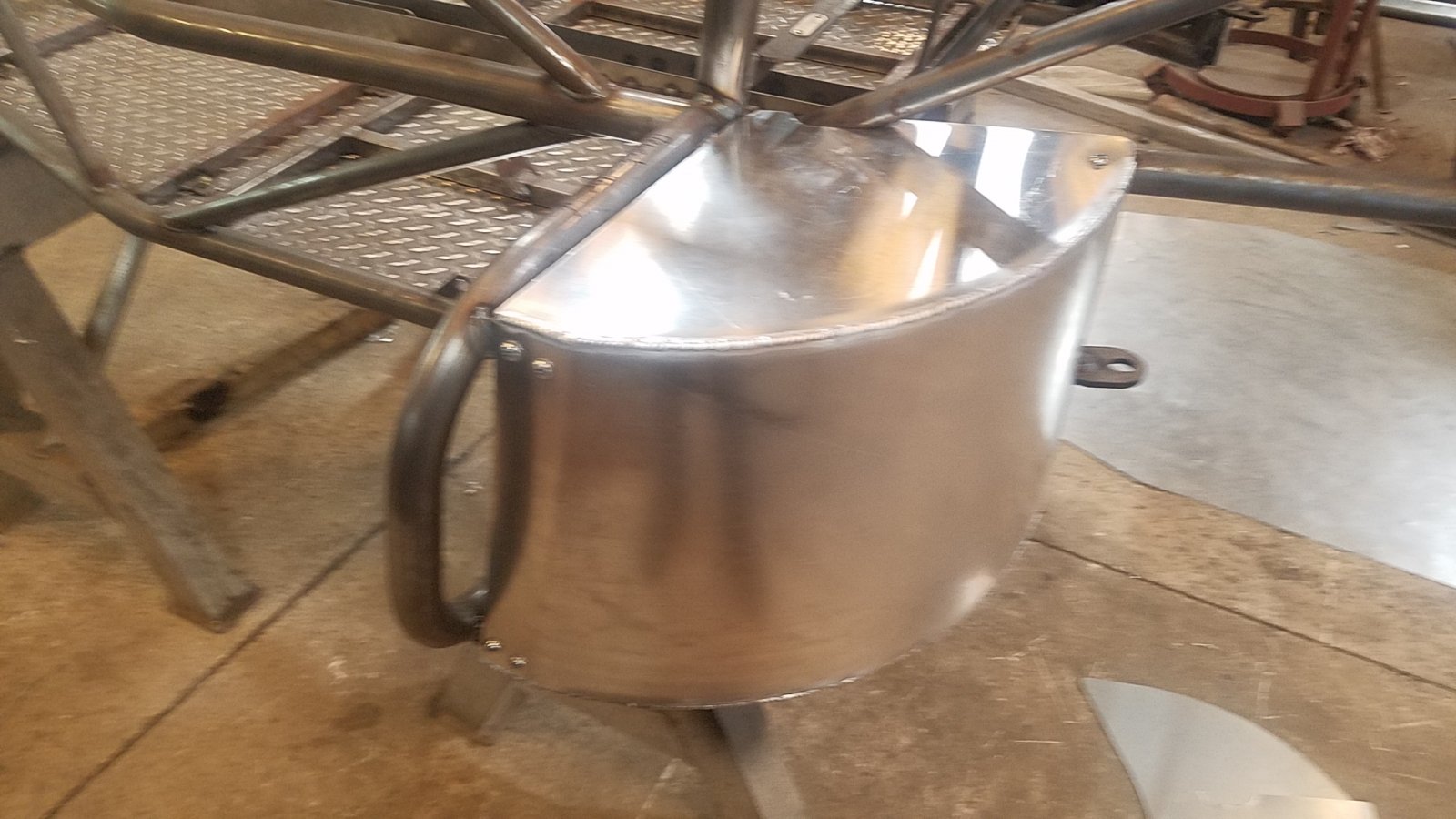

Realized I didn’t post pictures of it completed.



[r3drckt]

Would’ve liked the corners to be rounded to match the tubing, but looks good enough and will function the same either way.



[JBINTX]

Realized I didn’t post pictures of it completed.
View attachment 24696View attachment 24697View attachment 24698View attachment 24699

nice welds.



[r3drckt]

nice welds.

Not mine lol. Had a fab shop do the work since I didn’t have a pipe bender. Figured while they were doing that, they could do the other misc. stuff



[r3drckt]

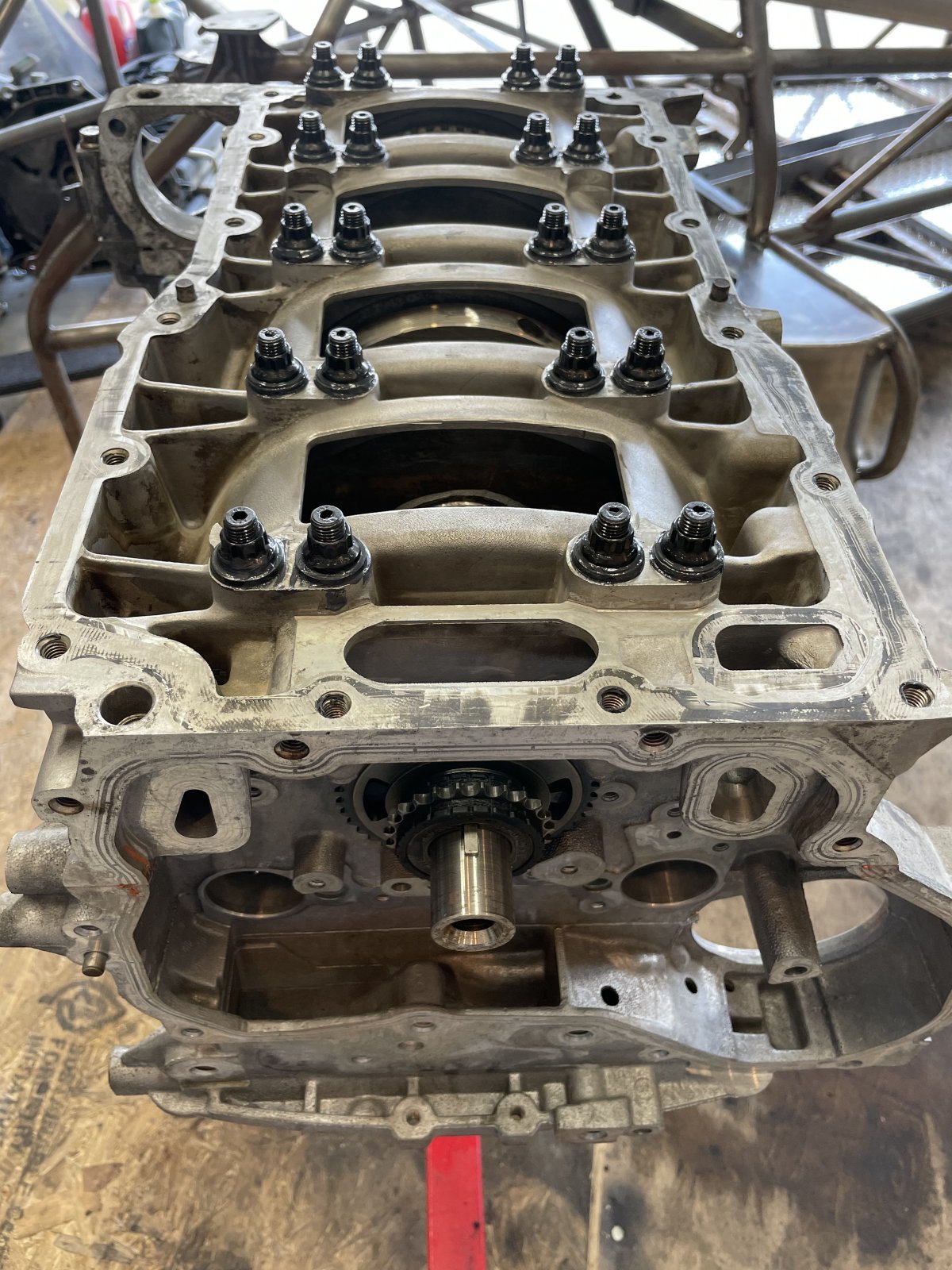

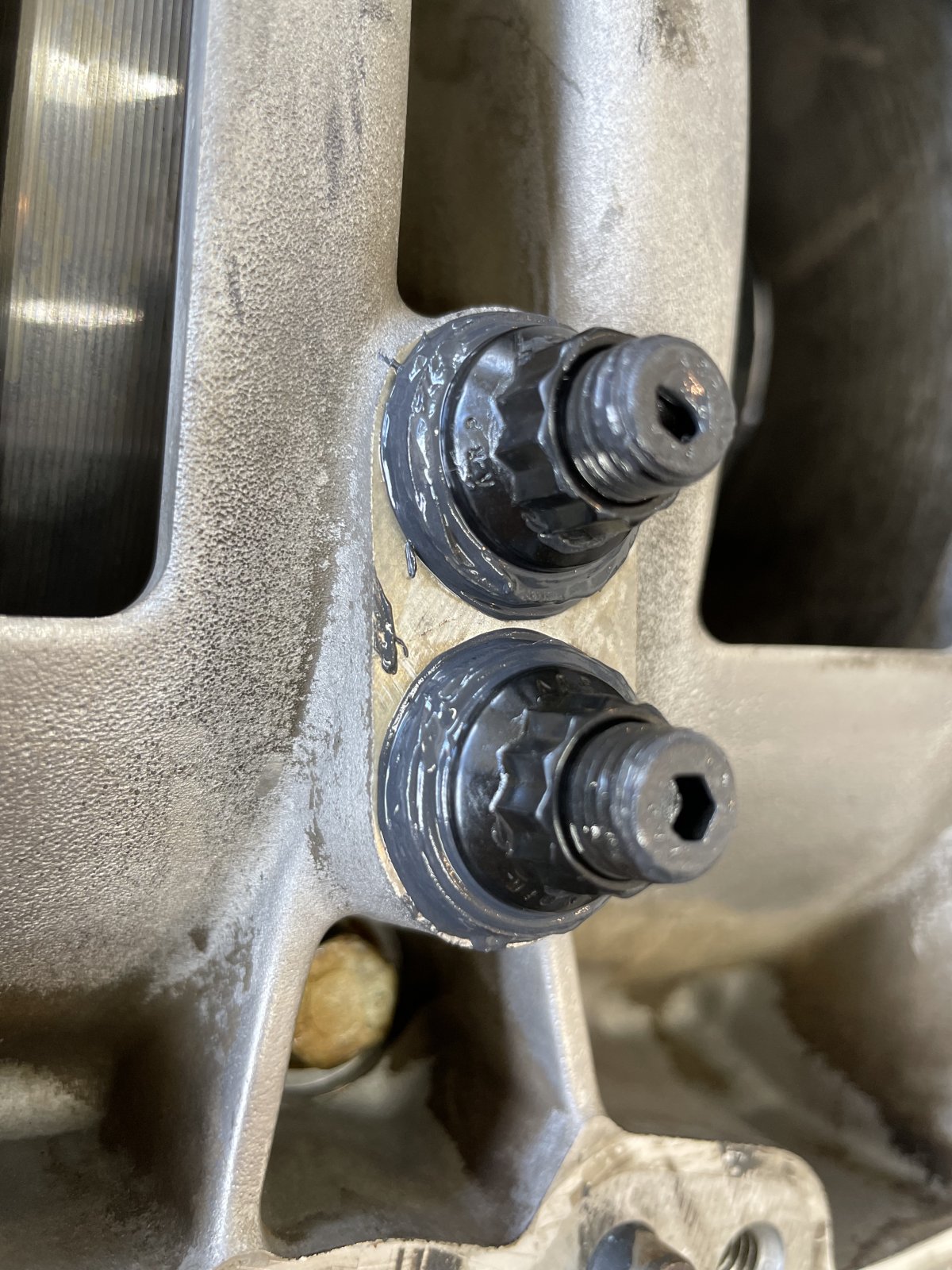

Finally got around to starting the engine assembly. Didn’t do a whole lot, but starting is the biggest hurdle I feel. Lower block assembly and crank are done. I’ll do pistons tomorrow maybe.
