Wires to Send to DFKC for Harness Rework

Last updated: Nov 18, 2025 by Adam Doyle

Knowledge Base › Goblin V1 › Assembly Info for V1

DF Kit Car can rework your wiring harness for you. If you selected the harness rework option, or if you would like to add it, you will need to send in specific donor harnesses. If you did not choose this option when ordering your kit, please contact [email protected] before shipping any parts.

Please include a note in the box with your full name and, if available, your chassis number. This helps us match your harnesses to your build.

Shipping Address

Lonny Doyle

6651 Luber Rd.

Mountain View, AR 72560

Do not send the following items:

  • Engine harness
  • Fuse box or fuse box housing
  • Body control module
  • Ignition switch, gauges, or any other electrical components

Send the following harnesses:

Main Harness

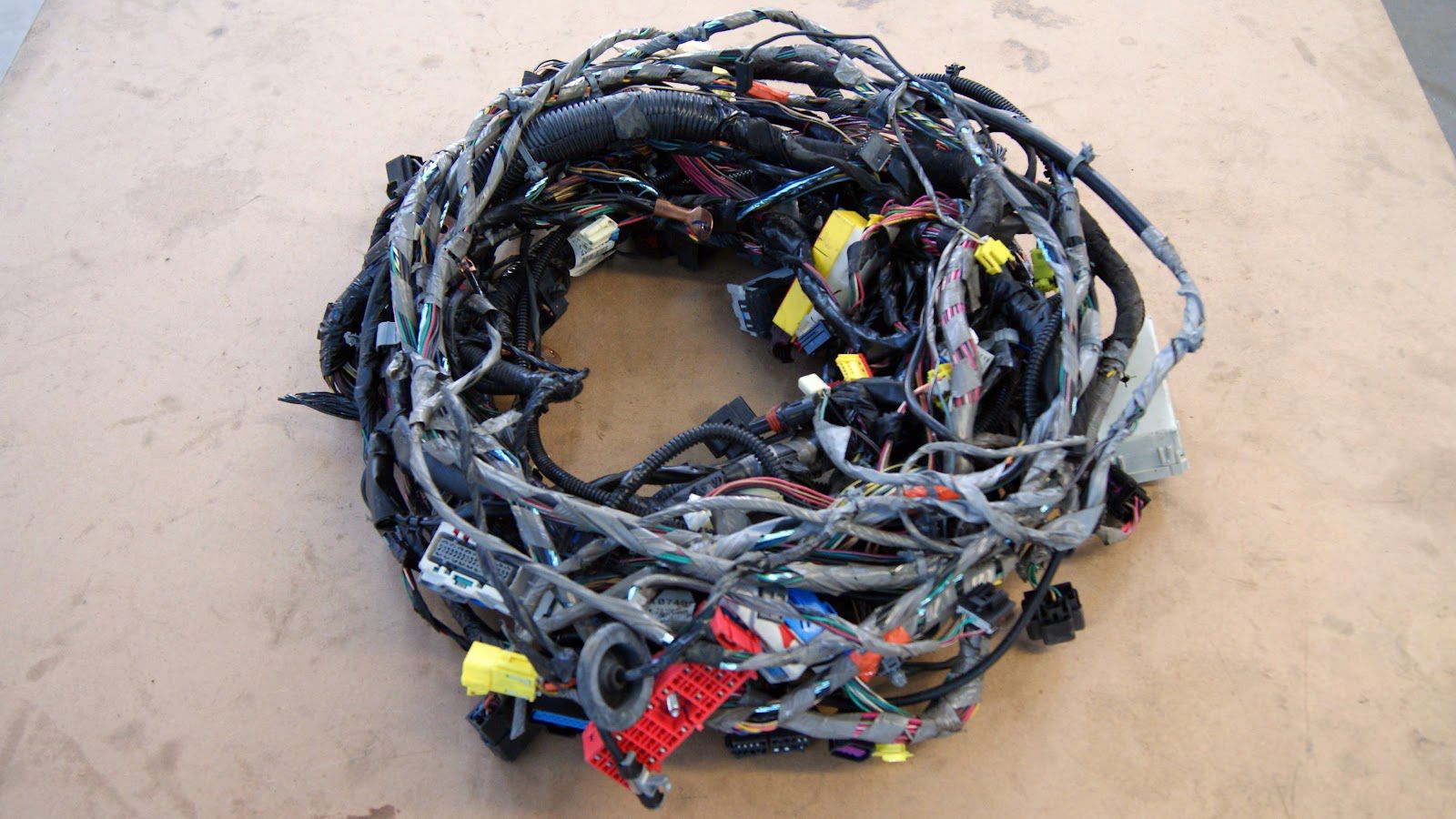

Main wiring harness from a Chevrolet Cobalt donor, coiled on a shop floor with connectors visible.
Main Harness from the Cobalt donor. Coil it up neatly and send it to us. You do not need to tag any wires.

Dash Harness

Remove from the dash by following this video: Disassembling the Dash

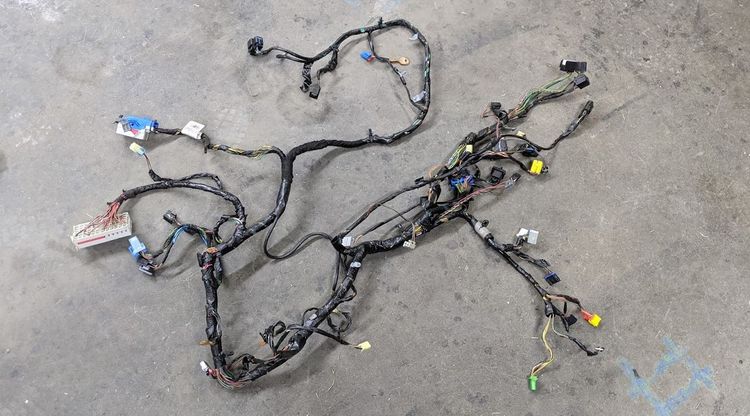

Dash wiring harness removed from a Chevrolet Cobalt dashboard, laid out flat with multiple branch connectors visible.
Dash Harness from the Cobalt donor. Remove from the dashboard assembly before shipping.

Headlight Harness

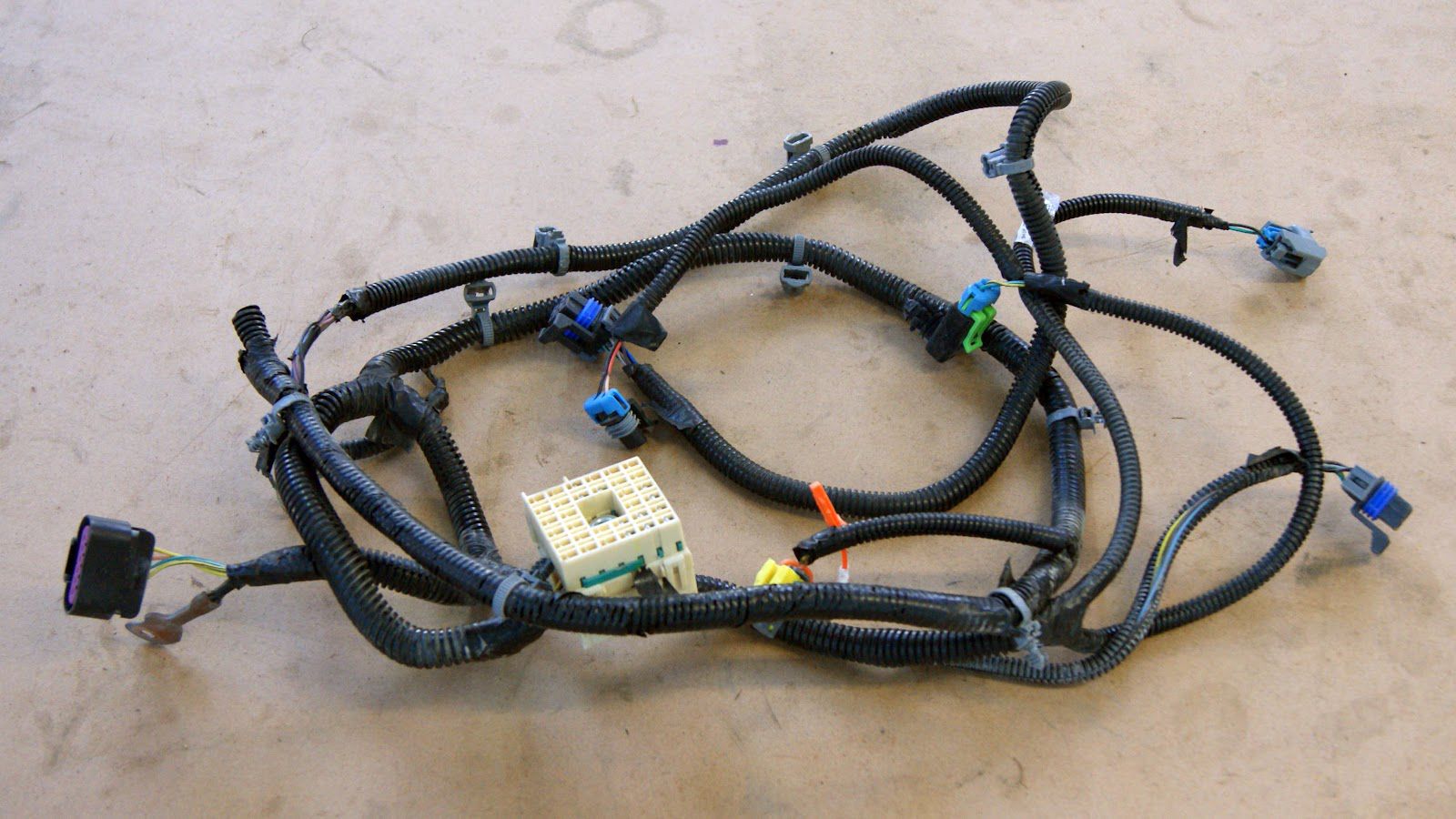

Headlight wiring harness from a Cobalt donor vehicle, arranged on a work surface showing headlight plug connectors.
Headlight Harness from the Cobalt donor. Includes wiring for the front lighting system, horn, and grounds.

Fuel Pump Harness

Note: the SS/TC fuel pump harness will look slightly different.

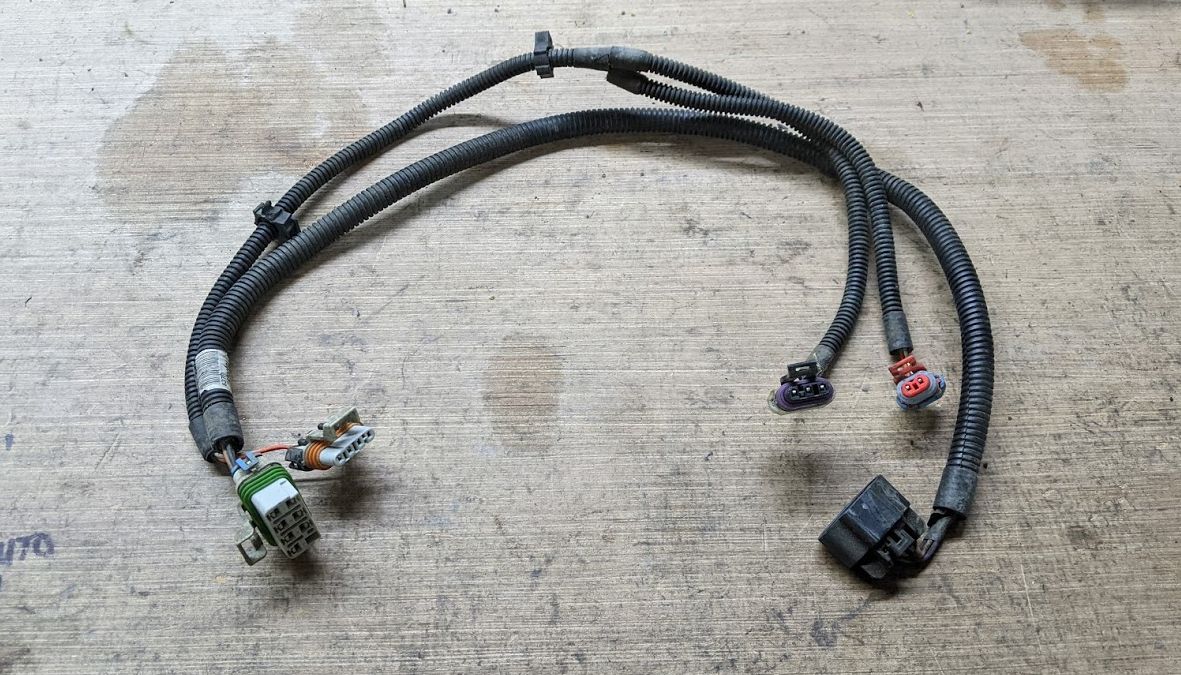

Fuel pump wiring harness from a Cobalt donor, with connector ends and protective loom visible on a workbench.
Fuel Pump Harness from the Cobalt donor. Note: SS/TC versions look slightly different but are still required.

Power Steering Harness

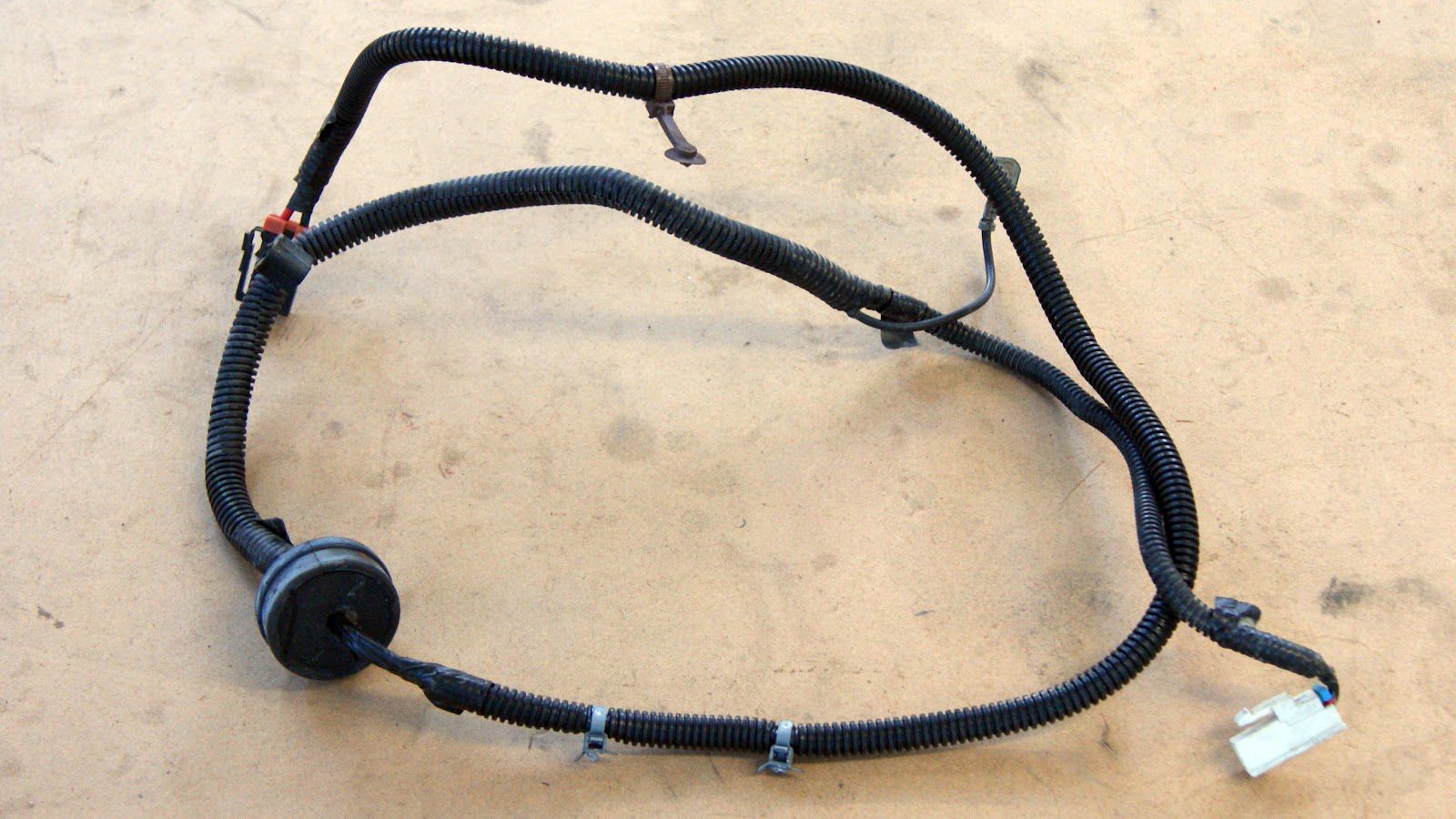

Power steering wiring harness from a Cobalt donor, shown with grommet and protective loom.
Power Steering Harness from the Cobalt donor.

Large Positive Cable

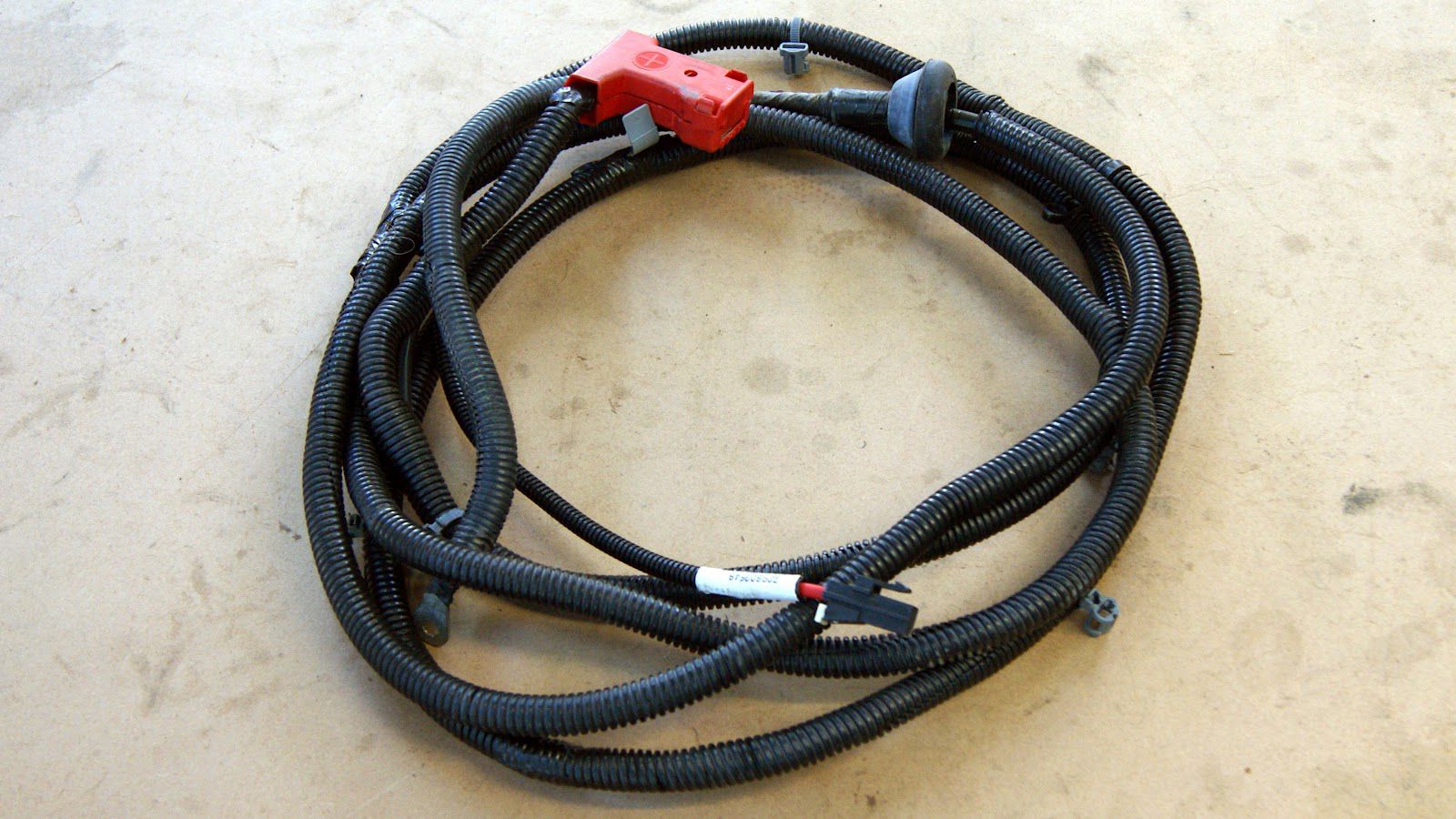

Large positive battery cable from a Chevrolet Cobalt donor, coiled with terminal connectors exposed.
Large Positive Battery Cable from the Cobalt donor. We will trim this to length for you.
