V1 Dre city Goblin build - 06 LS Donor

D

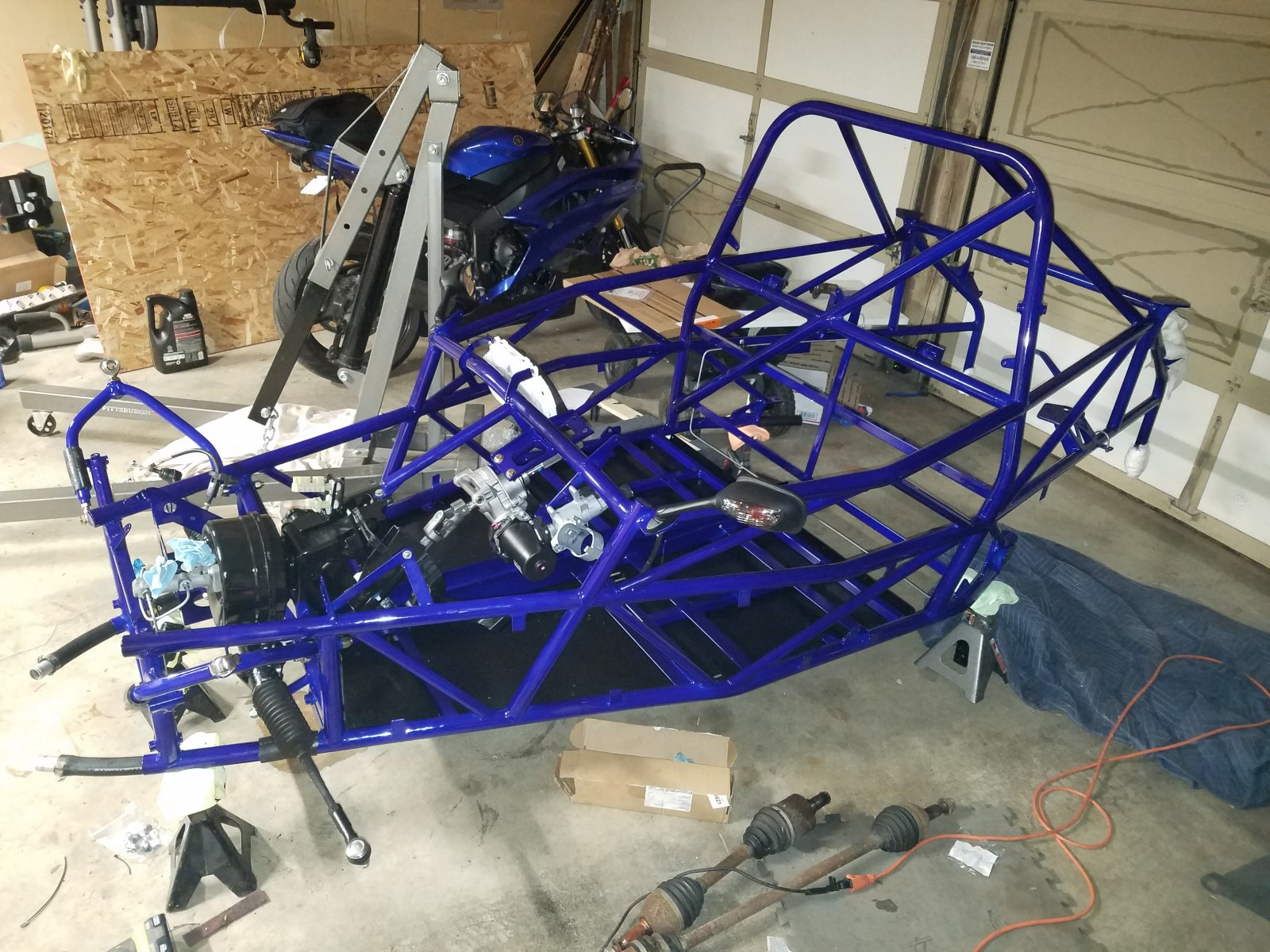

Yesterday i finished installing new inner tire rods in my rack and pinion, i finished painting it, and installed it on the car. I also put new gasket on the oil pan


Attachments

  • 20180815_051940.jpg
    380.6 KB · Views: 555
B

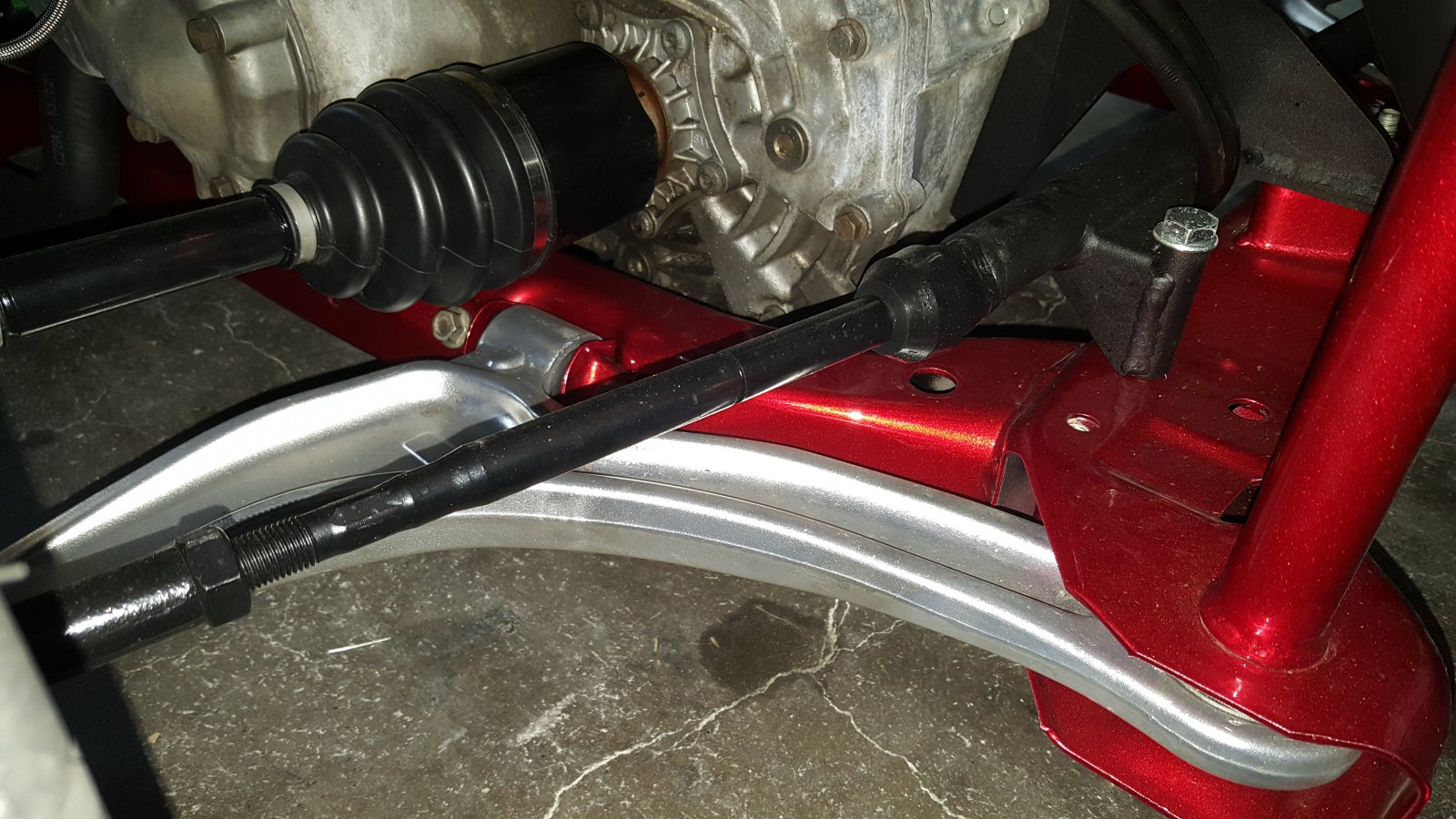

If I remember correctly, the original front tie rods are moved to the rear and used on the toe link. The supplied tie rods should replace the front ones. One set is longer and one is shorter. I don't remember exactly whether it's the short ones that go up front or in the back.

jennam
The inner tie rods go on the new toe link bar with the original outer rod ends. The new shorter outer rod ends go on the steering rack.

RichRich
If I remember correctly, the original front tie rods are moved to the rear and used on the toe link. The supplied tie rods should replace the front ones. One set is longer and one is shorter. I don't remember exactly whether it's the short ones that go up front or in the back.

Correct, and shorter rod ends go in front, longer in the rear

D
Thanks Lonny!... Stupid me. Story time! I bought 2 new inner tierods for my rack and pinion because the bolts would not come off for the outer tierods. I wanted to compare those with the ones that came in the kit. I forgot and when istalling the new ones on to my rack and pinion I noticed one had a matte finish while the other had a gloss. I thought I got two different ones from the store. So I took the gloss one back to the store saying that its incorrect and bought another one that was matte. Then I post a question on here to realize that I returned the innter tierod that came with the kit. I called and told the store I returned the incorrect one and to see if they still have it and they do.

D

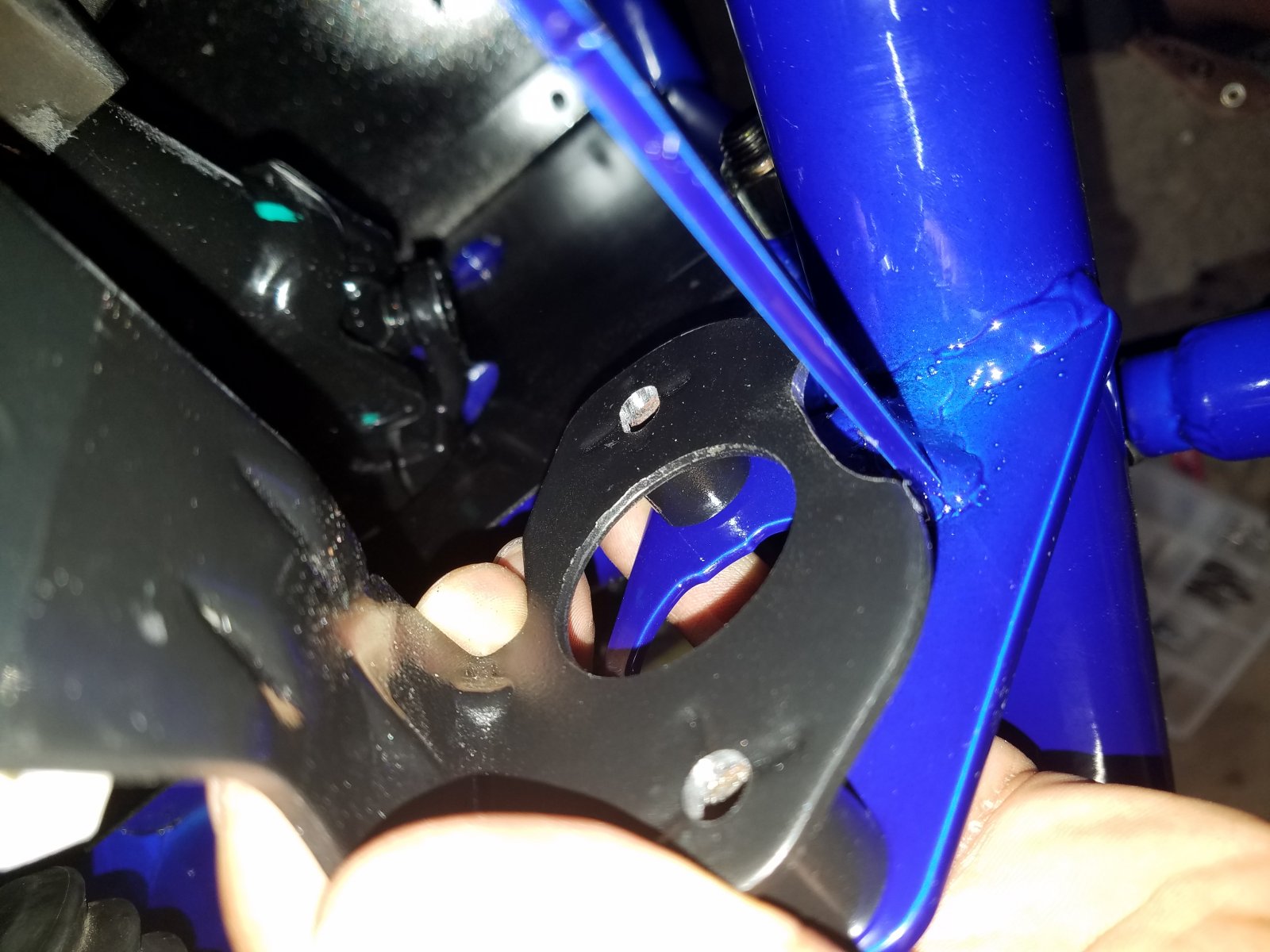

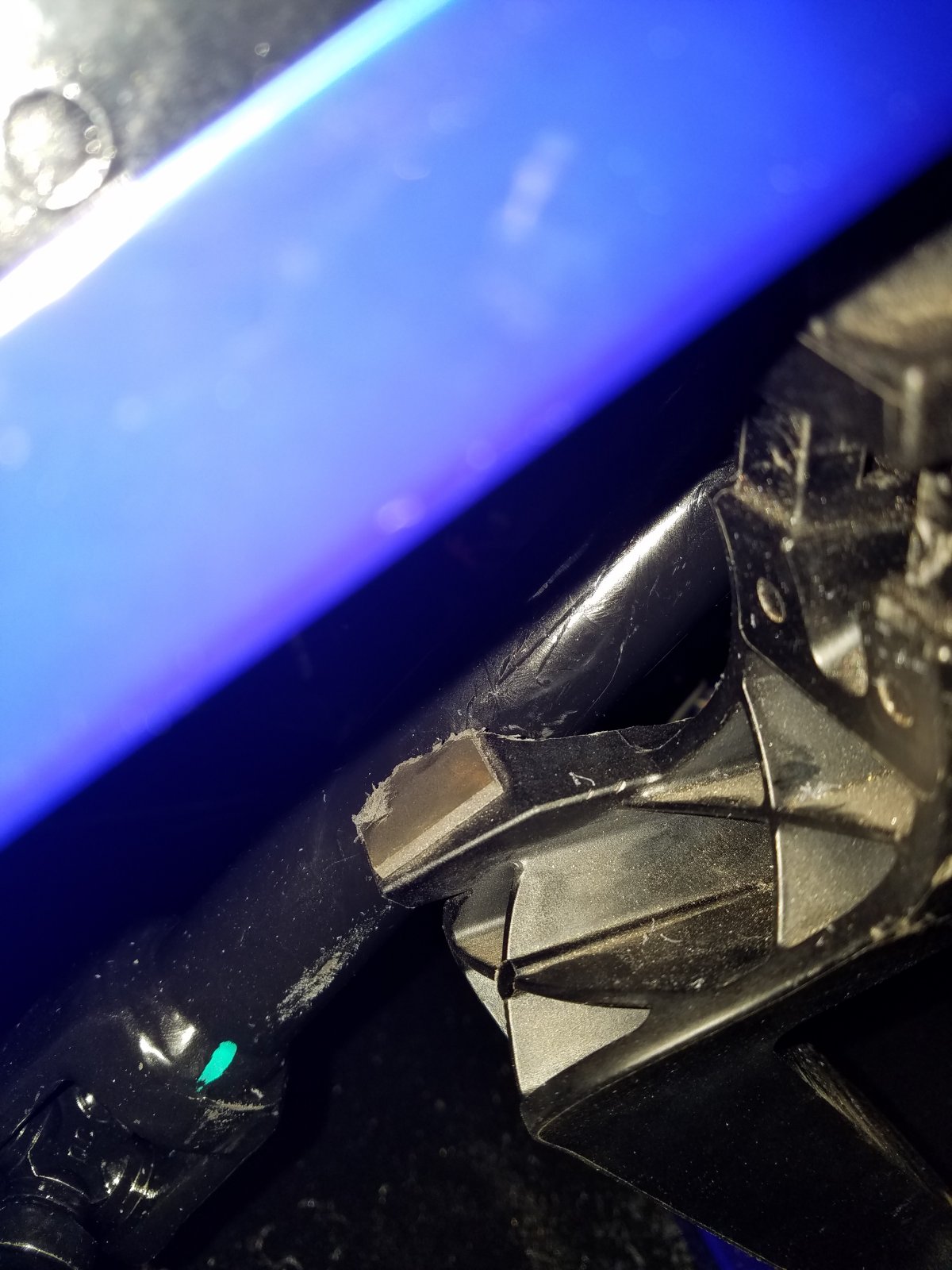

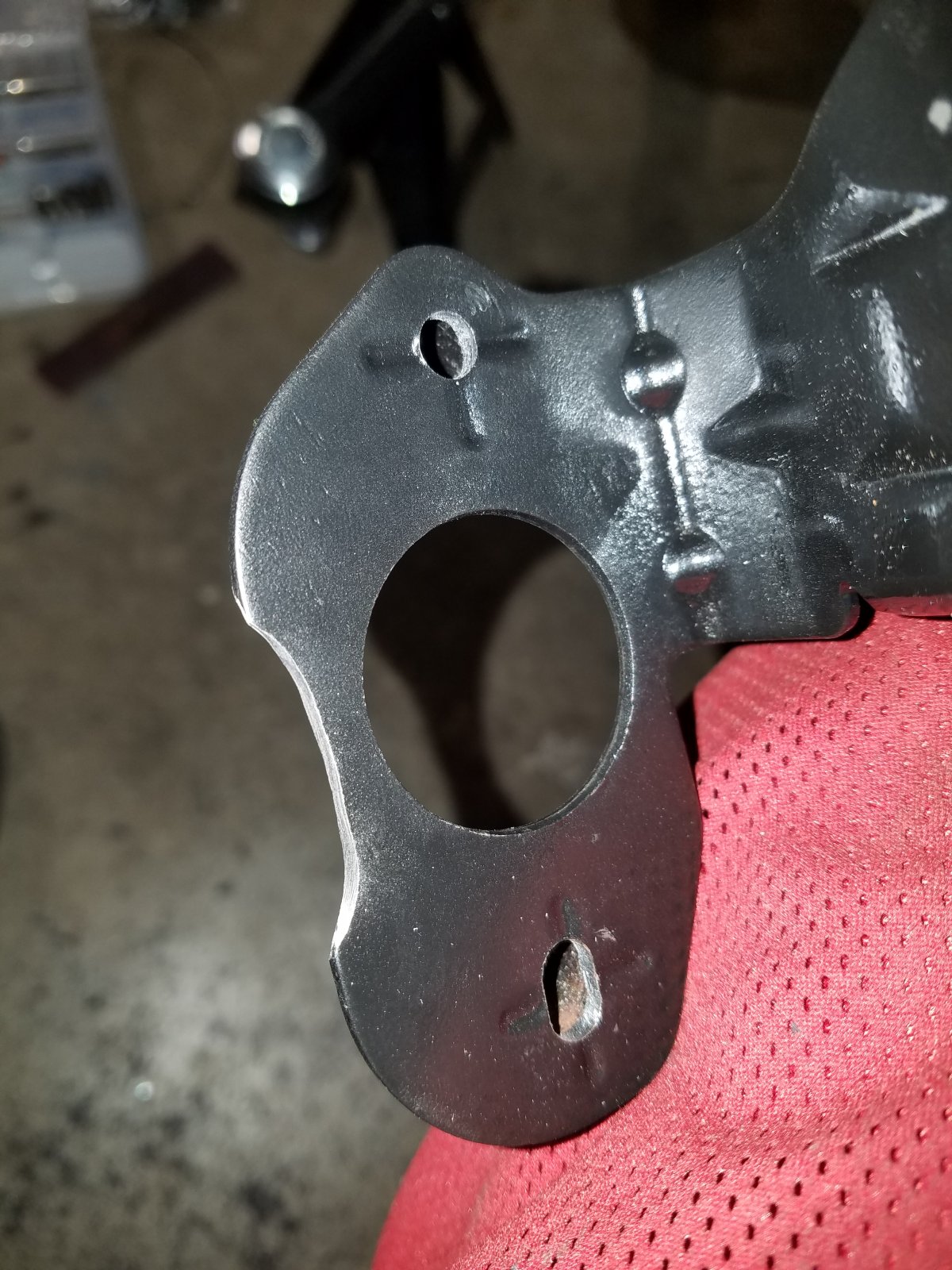

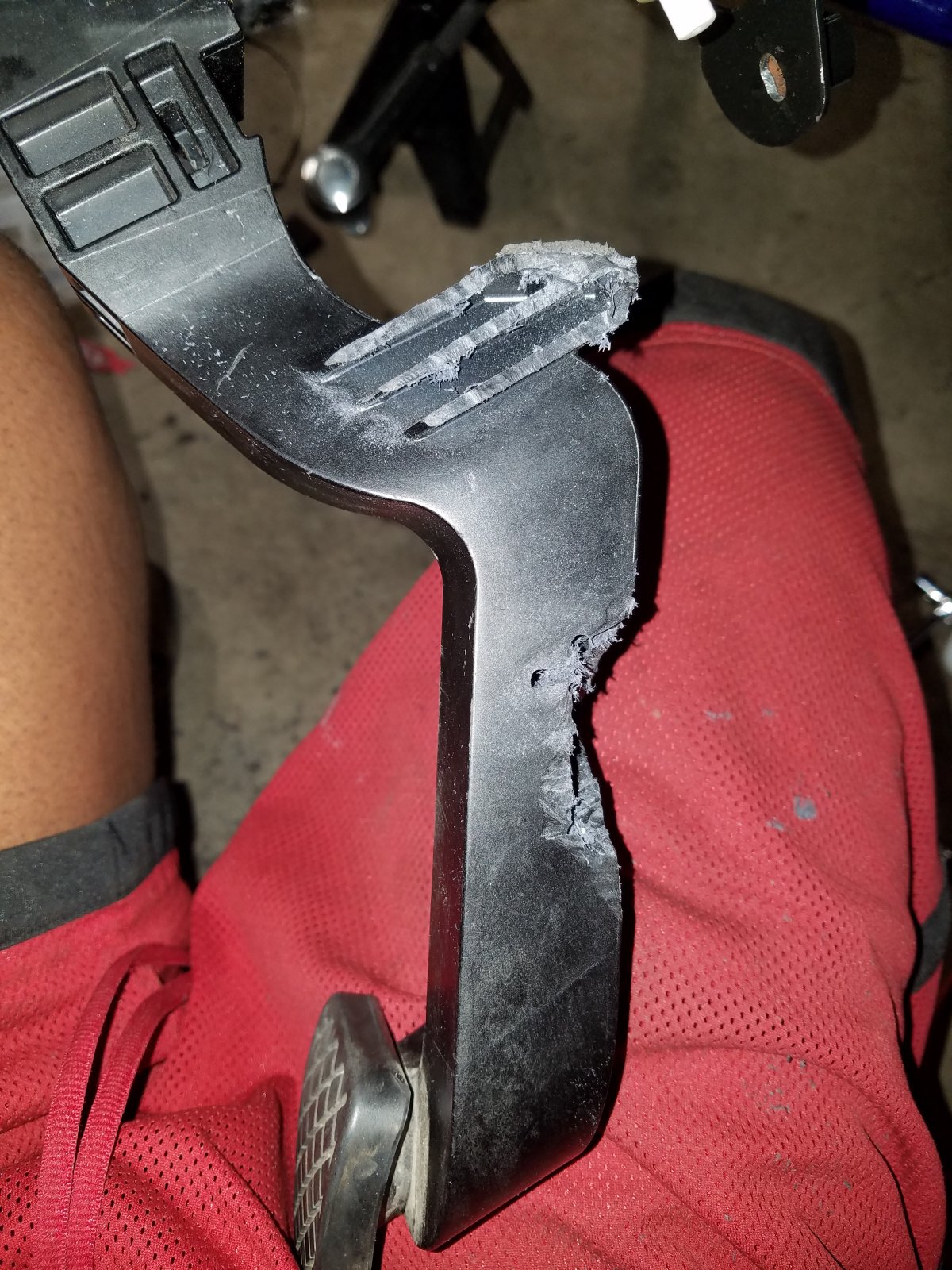

Once again... it could be me, but in the first and second photo i had to cut a half circle out of my bracket. In the third and fourth photo. I cut the plastic piece that presses the switch and a portion of the pedal because it touches the steering shaft.


Attachments

  • 20180815_170741.jpg
    220.2 KB · Views: 566
  • 20180815_171003.jpg
    332 KB · Views: 597
  • 20180815_170804.jpg
    220.1 KB · Views: 567
  • 20180815_171219.jpg
    382.7 KB · Views: 551
Lonny
With the pedal assembly bolted up you need to push away on the top an pull on the bottom to position the pedal far enough away from the steering shaft that it does not hit the ujoint when fully depressed.

You will also need to remove some of the brake switch pad to clear the steering shaft.

D

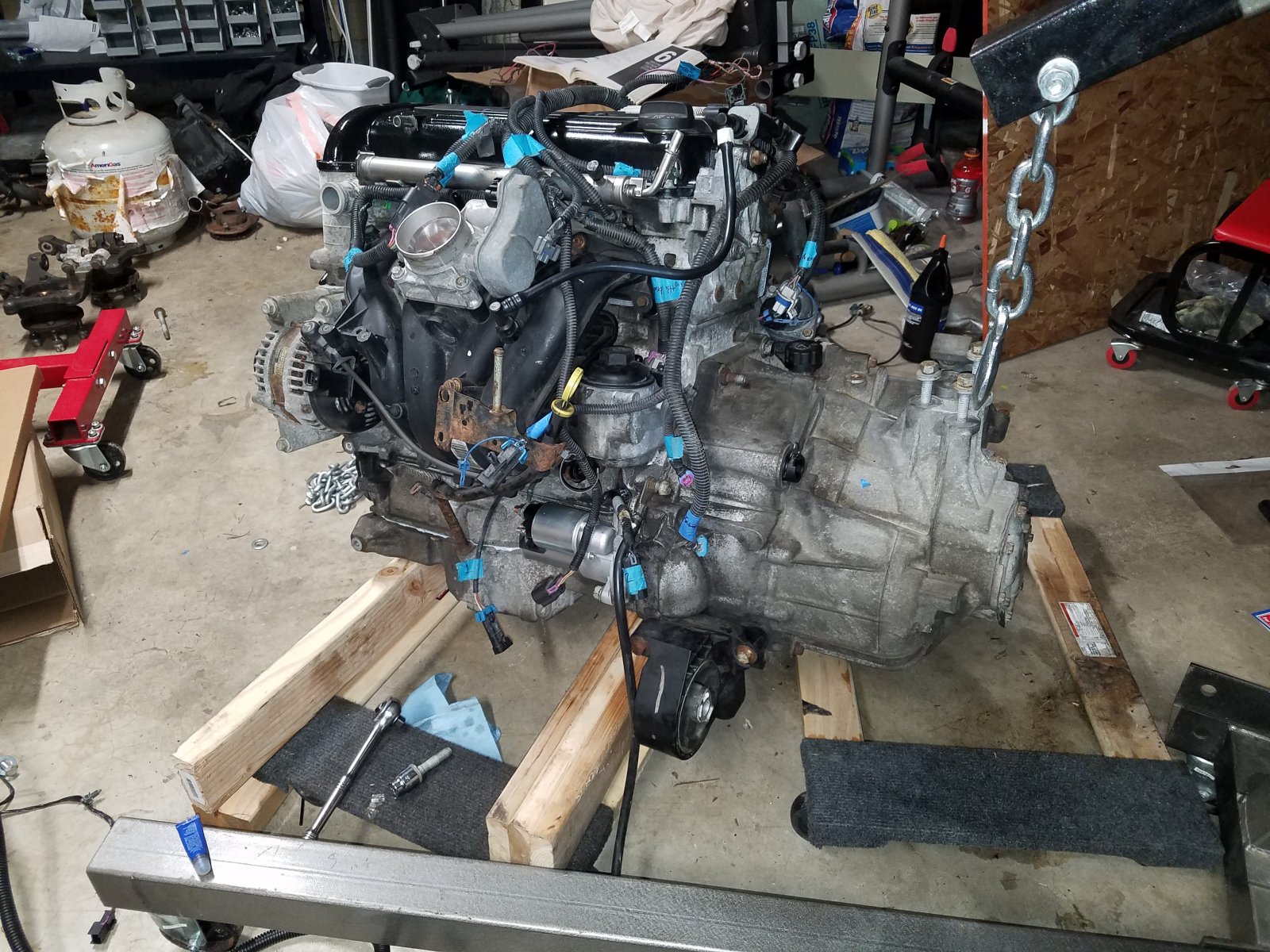

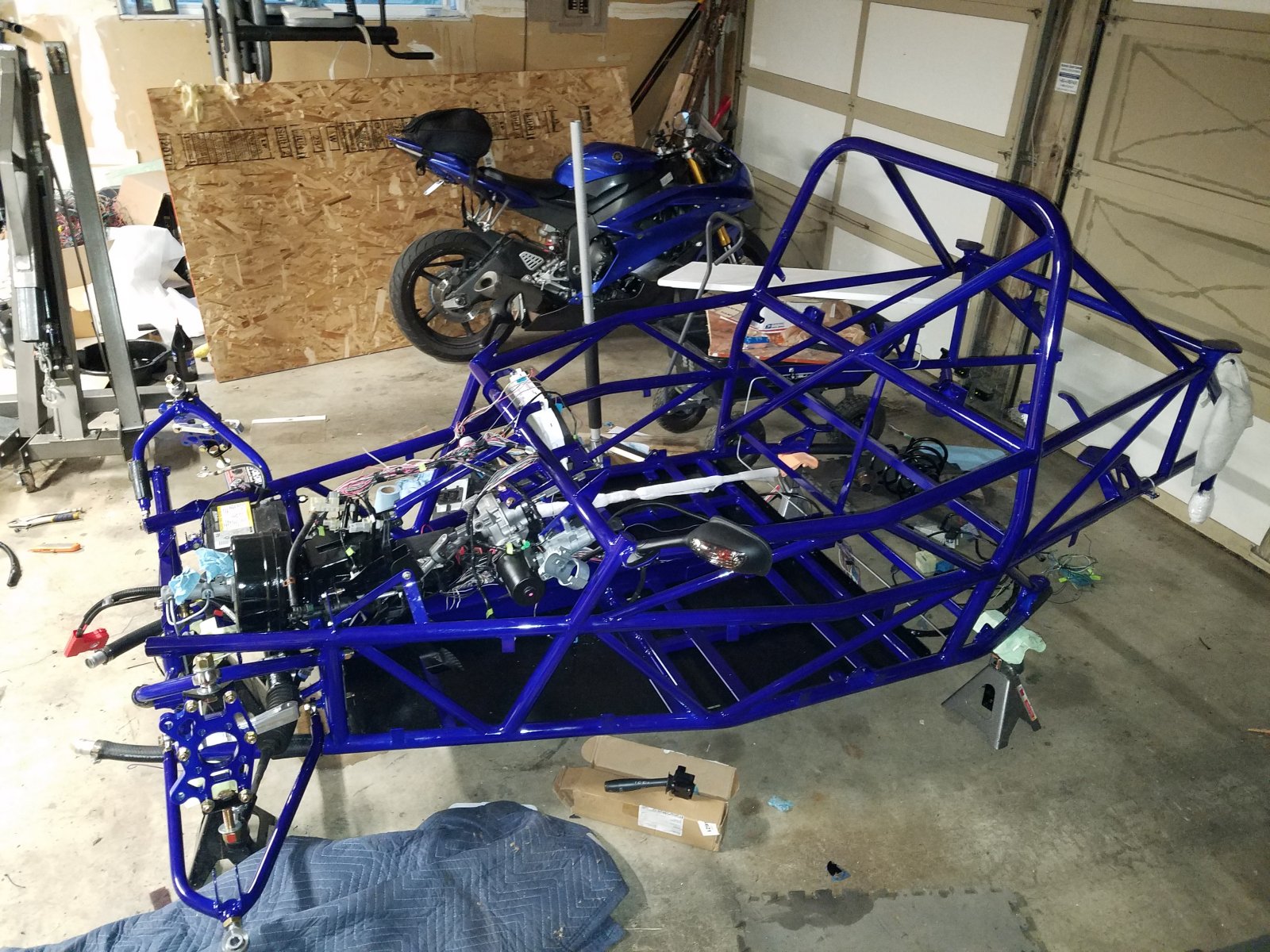

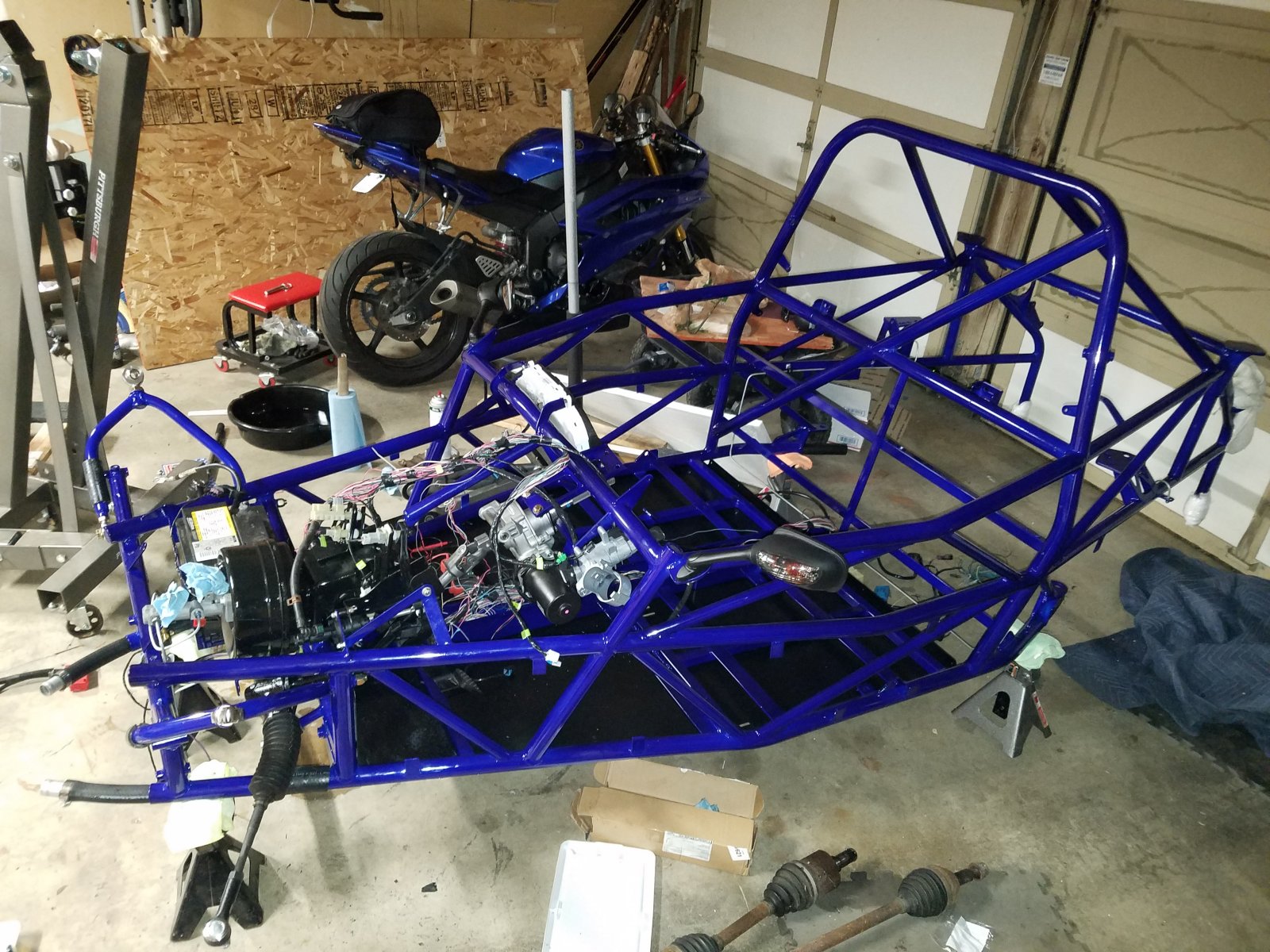

Almost finished with the engine. Mostly put together. Just need to tighten a couple bolts... also started laying out the wiring harness in the car.


Attachments

  • 20180816_214414.jpg
    404.4 KB · Views: 550
  • 20180816_214423.jpg
    446.5 KB · Views: 561
D

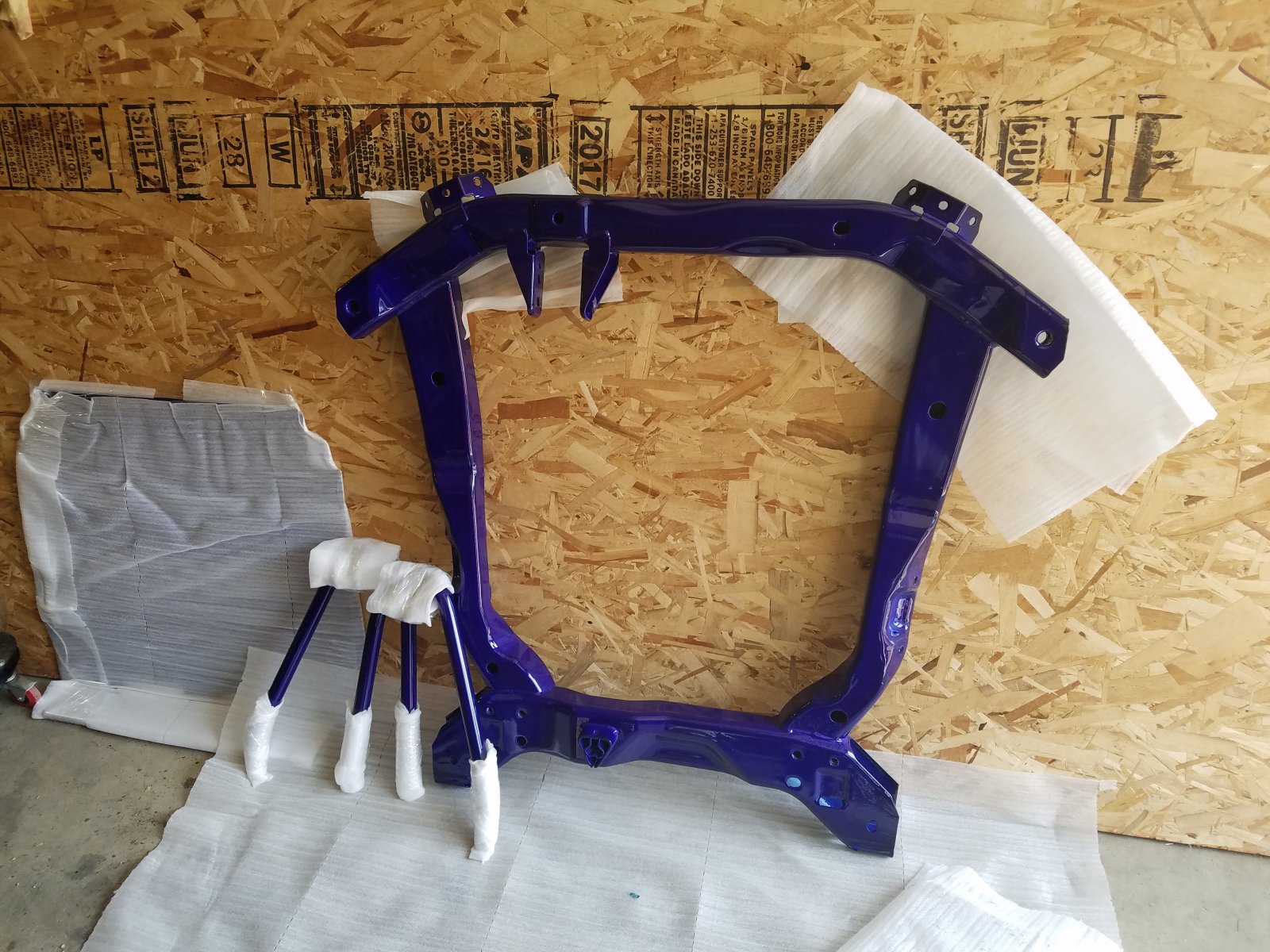

The remainder of my powdercoated posts came in...

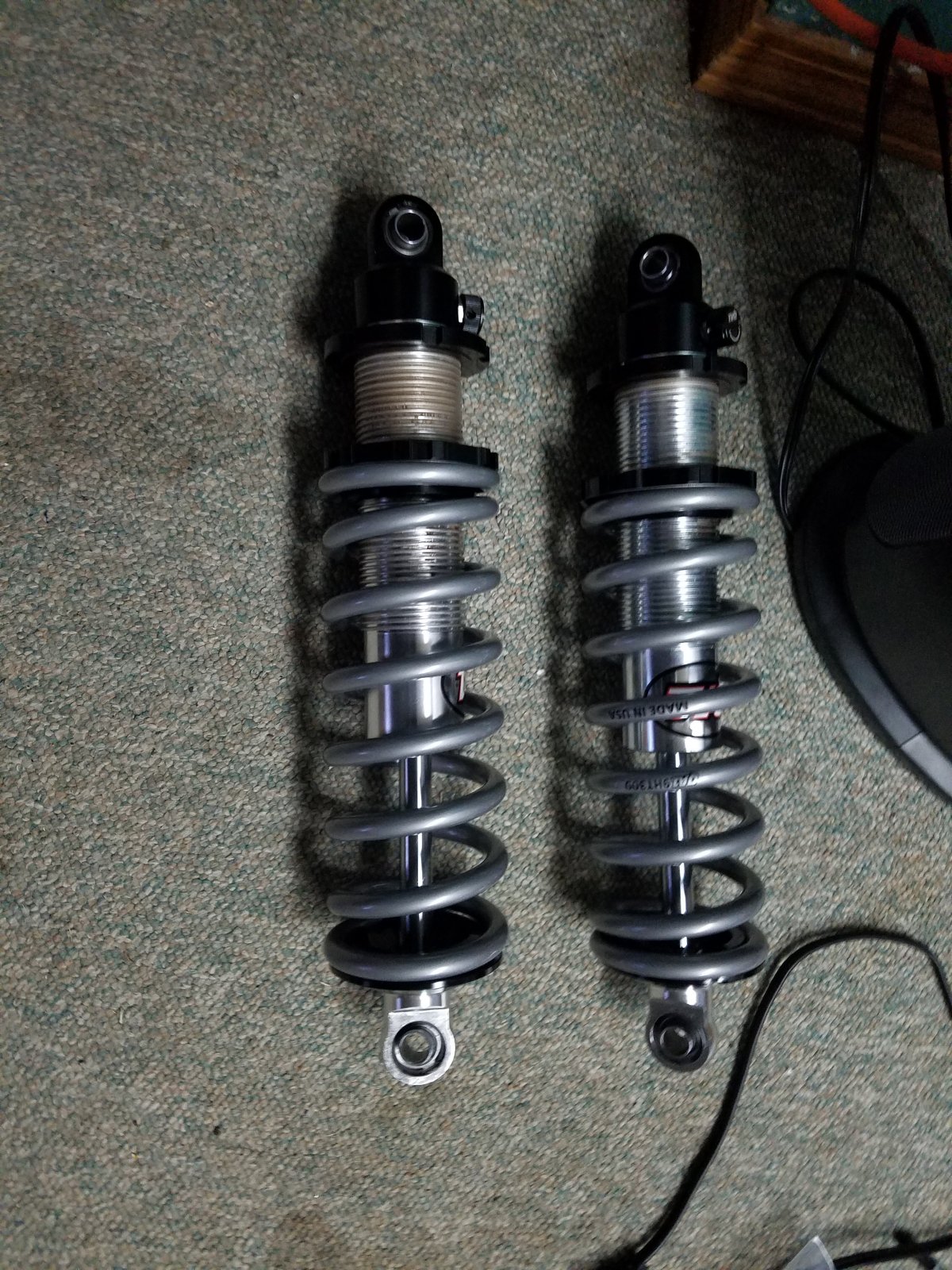

Work completed today: Painted donor suspension, installed upper control arms, painted cv axles, assembled kit suspension (i had to grind down one of my snap ring pliers to fit the little holes), soldered the connector to the positive battery wire.


Attachments

  • 20180817_201806.jpg
    427.9 KB · Views: 553
  • 20180817_201741.jpg
    448.3 KB · Views: 551
  • 20180817_140750.jpg
    375.8 KB · Views: 537
